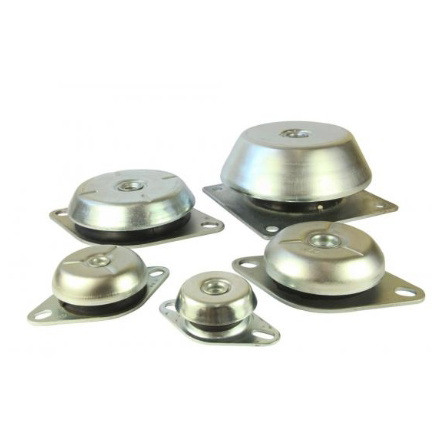

Carrying loads across the upper reaches of the Captive Transit Mount range, CTM11548 is a 115 mm (dim A) rubber-to-metal bonded mount threaded M16, rated to a static load figure (CF: 160) that positions it firmly in the heavier-duty band of this family, making it the mount of choice where substantial machinery mass must be isolated and protected during both operation and transit. The rubber element operates in shear-compression, a geometry that optimises vibration reduction across all axes whilst distributing stress evenly through the bond line. A metal top cap shields the rubber and bonded surfaces from oil, fuel and general contamination, whilst protective plating on the metalwork resists corrosion in the damp or chemically active environments typical of plant yards and engine rooms. The integral overload stop governs equipment movement under transit loading, and the failsafe arrangement absorbs shock loads to prevent catastrophic failure, critical when heavy drive-train or generator assemblies are being transported over rough ground. With dimensions A: 115 mm, B: 48 mm, P: M16, F × M: 16ø, CF: 160, G: 85, L: 190 mm and S: 4.0, CTM11548 is well matched to generating sets, diesel and marine engines, industrial and commercial vehicles, and construction or plant equipment where combined static mass and transit shock demand a mount with proven load capacity. The mount suits both mobile and static installations, and custom configurations in stainless steel or oil-resistant and high-temperature rubbers are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 115 |
|---|---|
| Width / dimension B (mm) | 48 |
| Pitch / dimension P (mm) | M16 |
| Fixing hole F (mm) / Thread / stud size M | 16ø |
| Across flats / clearance CF (mm) | 160 |
| Fixing hole spacing G (mm) | 85 |
| Length L (mm) | 190 |
| Plate / metal thickness S (mm) | 4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CDM80-65-65 | CDM80-55-55 | CDM80-45-45 | BM10555MM36 | BM10555MM17 | BM10555MF17 |
A. CTM11548 has the following specification: A: 115 mm, B: 48 mm, P: M16 thread, F × M: 16ø, CF: 160, G: 85, L: 190 mm, and S: 4.0.
A. This mount is suited to generating sets, diesel and marine engines, construction and plant equipment, pumps and compressors, and industrial and commercial vehicles — both in mobile and static installations.
A. The metal top cap protects the rubber element against oil, fuel and contamination, and the metalwork carries a protective plating that resists corrosion.
A. CTM11548 incorporates a failsafe arrangement designed to control shock loads and prevent catastrophic failure, alongside an integral overload stop that governs movement of mounted equipment during transit.
A. The rubber element operates in shear-compression to deliver vibration reduction across all axes.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. Related variants include CTM-R, CTM10638, CTM10642, CTM10850, CTM12142, CTM12548, CTM14448 and CTM14453, covering a range of dimensions, thread sizes and shore hardness grades from lighter through to very high-load applications.
