Product Number: ATP362083-70
Variations

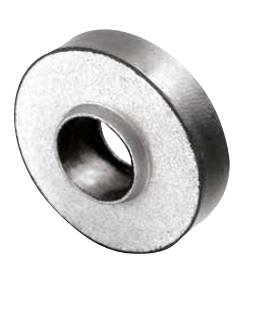

With a rated maximum load of 183 kg, ATP362083-70 is a 70 Shore A armoured plate two-piece mount engineered for applications where firm restraint, resistance to shock and impact, and minimal movement under heavy load are the governing requirements. At 36 mm diameter with a stack height of 20 mm, this compact rubber-to-metal bonded unit delivers the highest load capacity and the least deflection within its geometry group, making it the correct selection wherever a softer grade would allow unacceptable displacement. The armoured plate construction bonds a resilient rubber element between metal faces, combining the energy-absorbing properties of rubber with the structural integrity of metal bonding. This arrangement allows the mount to be loaded in compression, shear, or a combination of both, depending on the installation. The firm 70 Shore A compound carries heavy loads with controlled, minimal movement, dissipating shock energy rather than transmitting it to surrounding structures or connected equipment. At this hardness grade, the mount is particularly well suited to construction equipment and off-highway machinery, commercial vehicles, agricultural plant subject to significant impact loading, and power generation or marine installations where a component must be held firmly against dynamic forces. It is equally applicable in railway and mass transit, automotive, and military and defence contexts where shock restraint takes precedence over isolation. The rubber-to-metal bonded design protects adjacent structures, improves machinery service life, and can contribute to operator comfort by reducing transmitted vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ATP3615106-45 | ATP3615106-60 | ATP3615106-70 | ATP3615166-45 | ATP3615166-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 6.2mm | 6.2mm | 6.2mm | 6mm | 6mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The ATP362083-70 is rated to a maximum load of 183 kg, making it the highest-capacity option within this armoured plate geometry group.
A. The mount has a diameter (D) of 36 mm, a rubber element height (A and B) of 16.6 mm each, an overall stack dimension (C) of 20 mm, and further dimensional parameters E of 8 mm, F of 3 mm, and S of 1 mm.
A. A harder rubber compound carries higher loads with less movement and deflection. The 70 Shore A grade is the correct choice where the mounted component must be held firmly against heavy, dynamic, or shock loads rather than isolated from low-level vibration. Softer 45 Shore A and 60 Shore A grades of the same geometry are available where greater deflection or isolation is required.
A. The rubber-to-metal bonded construction of this mount allows it to be loaded in compression, shear, or a combination of both, depending on the installation arrangement.
A. The armoured plate mount family is used in construction and off-highway equipment, agricultural machinery, industrial plant, commercial vehicles, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request. Custom sizes can also be supplied.
