Product Number: ATP3615166-60
Variations
Balancing vibration isolation against structural support, the ATP3615166-60 is a 36mm armoured plate two-piece mount rated to a maximum load of 163 kg at 60 Shore A medium hardness, the mid-range grade engineered for installations where neither extreme softness nor maximum rigidity is required. With overall dimensions of D: 36 mm, A: 6 mm, B: 6 mm, C: 15 mm, E: 16 mm, F: 6 mm and a single-stud fixing (S: 1), this compact format is well suited to lighter machinery and sensitive equipment that demands a measured, controlled response to operational vibration rather than brute load restraint. The rubber-to-metal bonded construction dissipates and absorbs energy efficiently across both shear and compression loading directions. At 60 Shore A, deflection is moderate, firmer than soft grades yet compliant enough to provide meaningful isolation at the lower load levels typical of compact industrial plant, agricultural ancillaries and light commercial vehicle sub-frames. This balance makes the mount an adaptable general-purpose solution across a broad spread of mounting configurations without the over-stiffness that a harder grade would introduce at these load levels. Applications well matched to this grade and size include light construction equipment, agricultural machinery, elevator components and power generation auxiliaries where protecting operator comfort and shielding surrounding structures from transmitted vibration are primary objectives. The armoured plate design accommodates direct contact with secondary surfaces while retaining the elastic response that underpins effective vibration management.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

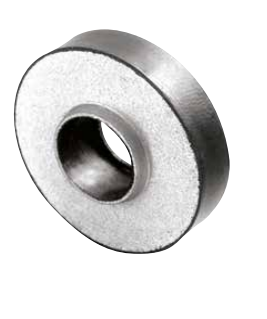

| PRODUCT NUMBER | ATP361883-45 | ATP361883-60 | ATP361883-70 | ATP362083-45 | ATP362083-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 16.6mm | 16.6mm | 16.6mm | 16.6mm | 16.6mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The ATP3615166-60 has a maximum load rating of 163 kg.
A. The mount measures D: 36 mm, with dimensions A: 6 mm, B: 6 mm, C: 15 mm, E: 16 mm and F: 6 mm. It features a single-stud fixing (S: 1).
A. At 60 Shore A, the mount sits in the mid-range of the hardness scale. It provides moderate deflection and a balance between vibration isolation and load-bearing support — firmer than soft grades for better load control, yet compliant enough to absorb vibration effectively at the lower load levels suited to this mount's size.
A. The mount is suited to light construction equipment, agricultural machinery, industrial machinery, elevator components, commercial vehicles and power generation auxiliaries. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The ATP3615166-60 uses rubber-to-metal bonded construction and works by absorbing and dissipating energy. It can be loaded in shear, compression or a combination of both, cushioning machinery against impact shocks and reducing transmitted vibration to protect surrounding structures and improve operator comfort.
A. Yes. The same 36mm two-piece armoured plate geometry is available in 45 Shore A soft (ATP3615166-45) for greater deflection and enhanced isolation at lower loads, and in 70 Shore A firm (ATP3615166-70) for higher load capacity with reduced movement.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
