Product Number: ATP361883-45
Variations

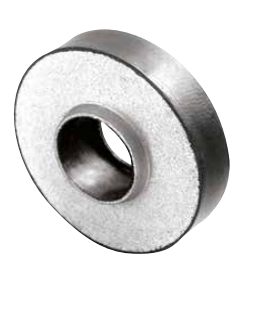

Where vibration isolation takes priority over load restraint, the ATP361883-45 Armoured Plate Two Piece Mount delivers at the soft end of the range. Rated to a maximum load of 66 kg with a diameter of 36 mm and a height (A) of 16.6 mm, this 45 Shore A rubber-to-metal bonded unit is engineered for lighter, compact or sensitive installations where lower-frequency isolation and maximum deflection under load are the governing requirements. The armoured plate construction bonds a precision-formed rubber element between metal faces, providing the structural integrity needed for repeated loading cycles while the soft 45 Shore A compound maximises energy absorption and deflection. Softer grades give greater movement under load and superior isolation performance compared with harder grades, making this grade the correct choice where protecting sensitive components from transmitted vibration matters more than minimising mount displacement. The mount may be loaded in shear, compression, or a combination of both. Typical application areas include agricultural equipment, elevators, construction machinery, industrial plant and commercial vehicles, particularly installations involving lighter or vibration-sensitive assemblies requiring effective lower-frequency isolation. The geometry also suits primary or secondary suspension duties on industrial vehicles where cushioning against impact shocks from external moving components is required. Rubber-to-metal bonded construction improves machinery lifespan, protects surrounding structures and contributes to improved operator comfort. This SKU is the 45 Shore A variant of the 36 mm armoured plate geometry. Harder grades in the same footprint are available as the 60 Shore A (ATP361883-60) and 70 Shore A (ATP361883-70).
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ATP3615106-45 | ATP3615106-60 | ATP3615106-70 | ATP3615166-45 | ATP3615166-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 6.2mm | 6.2mm | 6.2mm | 6mm | 6mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The ATP361883-45 is rated to a maximum load of 66 kg.
A. The mount has a diameter (D) of 36 mm, height (A) of 16.6 mm, B of 18 mm, C of 20 mm, E of 8 mm, F of 3 mm, and S of 1 mm.
A. The 45 Shore A is the softest grade in this geometry. Softer grades give greater deflection under load and better vibration isolation, particularly at lower frequencies — making this grade the correct choice for lighter or vibration-sensitive installations where isolation performance matters more than limiting mount movement.
A. Source-confirmed application areas include agricultural equipment, elevators, construction machinery, industrial plant and commercial vehicles. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. The mount uses rubber-to-metal bonded construction and may be loaded in shear, compression, or a combination of both. It works by absorbing and dissipating energy from impact shocks and transmitted vibration, cushioning machinery and protecting surrounding structures.
A. Yes — the same geometry is available in 60 Shore A (ATP361883-60) and 70 Shore A (ATP361883-70) for applications requiring higher load capacity with less deflection.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
