Product Number: CTM1063816-70

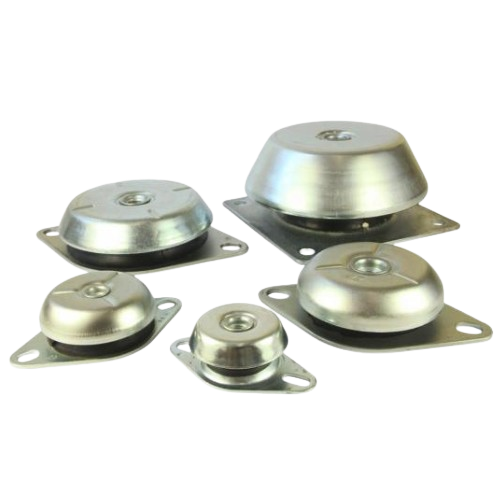

The CTM1063816-70 is the top grade of the M16 CTM10638 range, rated to 525 kg per mount. Its 70 Shore rubber on the 106 x 38 mm captive body is matched to heavier engines, generating sets and compressors specified with M16 fixings.
Up to 95% of vibration is absorbed in all axes by the shear-compression rubber element, which sits under a metal top cap that keeps oil and fuel away. The integral overload stop limits equipment movement in transit and the captive construction fails safe under shock loads, making the mount equally at home on mobile and static plant. Fixing runs through 12.5 x 19 mm slots at 138-146 mm centres; inner dimension is 80 mm, free length 171 mm, base thickness 4 mm.
Alternative grades on this body: CTM1063816-45 (250 kg), CTM1063816-60 (350 kg). The footprint and fixings are identical across the family, so grades interchange without rework. Where per-point loads are lower, the CTM1063816-60 (350 kg) and CTM1063816-45 (250 kg) fit the identical footprint; the M12 version of this grade is the CTM1063812-70.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 38mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 525
|
|
| Deflection (mm) | 3mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1063812-70 | CTM1064216-3 | CTM1064212-3 | CTM1064212-4 | CTM1445316-1 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3mm | 7mm | 7mm | 7mm | 12mm |
| Thread | M12 | M16 | M12 | M12 | M16 |
A. Match the dimensions - 106 mm flange, 12.5 x 19 mm slotted holes at 138-146 mm centres, M16 stud and 171 mm free length - against your equipment. Search PartsForMachines by the AV part number or WhatsApp our team to confirm suitability.
A. 525 kg for this 70 Shore grade - the highest in the CTM10638 family.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1063816-45 (250 kg), CTM1063816-60 (350 kg). Work out the load per mounting point and pick the grade that covers it.
A. Yes - the metal top cap is specifically there to protect the rubber element from contamination such as oil and fuel.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
