Product Number: IOS8.5262525
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS10222420 | 10 | 22 | 24 | 20 |
| IOS12222528 | 12 | 22 | 25 | 28 |
| IOS1302 | 7.9 | 22.2 | 25.4 | 27.8 |
| IOS10252025 | 10 | 25 | 20 | 25 |
| IOS12252428 | 12 | 25 | 24 | 28 |
| IOS10273840 | 10 | 27 | 38 | 40 |
| IOS1460 | 12.7 | 28.6 | 25.4 | 28.6 |
| IOS12301718 | 12 | 30 | 17 | 18 |
| IOS12303640 | 12 | 30 | 36 | 40 |
| IOS17343934 | 17 | 34 | 39 | 34 |

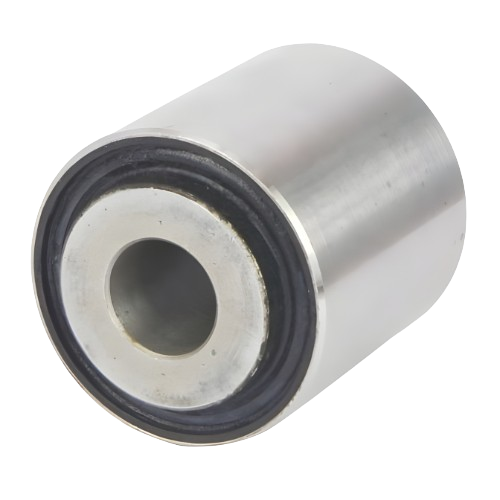

Compact and precise, the IOS8.5262525 is an 8.5mm inner bore inner-outer-sleeve bush measuring 26mm outer diameter by 25mm length with a 25mm sleeve length (A: 8.5mm, B: 26mm, C: 25mm, D: 25mm), making it the smallest unit in the IOS eccentric and spherical bush range and well suited to lighter, sensitive installations where controlled movement and vibration isolation are the primary requirements. Constructed with rubber bonded between inner and outer metal sleeves, this bush delivers high durability under dynamic loads and is engineered for a prolonged service life. The rubber-to-metal bonded construction requires no lubrication and is fully maintenance-free, reducing downtime and total cost of ownership across demanding operating environments. Where appropriate, mounts of this type may be loaded in shear, compression, or a combination of the two, providing design flexibility for engineers specifying compact pivot or linkage arrangements. At this smaller bore and lower load band, the IOS8.5262525 is particularly suited to applications requiring precise deflection control in confined spaces: pivot bearings and mechanical linkages, cab mounts on compact off-road vehicles, agricultural machinery, and light-duty automotive or marine installations. The rubber-to-metal bond also helps protect surrounding structures and improves operator comfort by absorbing and dampening transmitted vibration at source. Industries served include construction and off-highway, agriculture, power generation, marine, automotive, and railway and mass transit. The IOS8.5262525 forms part of a wider range of inner-outer-sleeve, eccentric, and spherical bushes available in multiple bore sizes and configurations. Sibling variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 8.5mm |
|---|---|
| Outer Diameter (ØB) | 26mm |
| Rubber Body Length (C) | 25mm |
| Overall Length (D) | 25mm |
| Warranty | 6 Months |

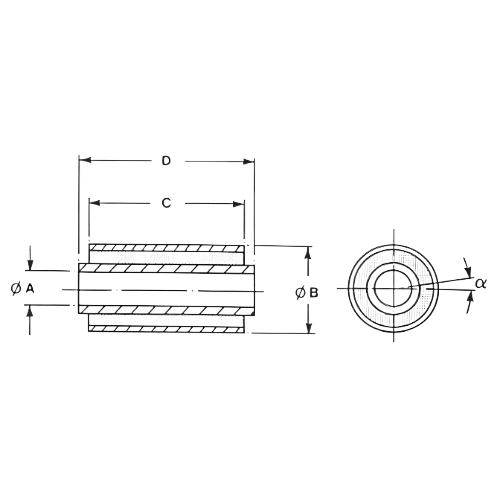

| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 8.5mm, Outer Dia 26mm, L 25mm - IOS8.5262525
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS12222528 | IOS12252428 | IOS12301718 | IOS12303640 | IOS12252024 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 12mm | 12mm | 12mm | 12mm | 12.2mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS8.5262525 has an inner bore (A) of 8.5mm, an outer diameter (B) of 26mm, a length (C) of 25mm, and a sleeve length (D) of 25mm.
A. This bush is suited to pivot bearings, mechanical linkages, cab mounts, off-road vehicles, agricultural machinery, automotive, marine, and light-duty industrial installations where controlled deflection and vibration isolation are required in a compact envelope.
A. No. The rubber-to-metal bonded construction is maintenance-free and requires no lubrication throughout its service life.
A. Bushes of this type may be loaded in shear, compression, or a combination of both, offering design flexibility for engineers working on compact pivot and linkage arrangements.
A. Yes. Stainless steel metals, oil-resistant rubbers, high-temperature rubbers, and additional or custom sizes are available on request.
A. Sibling variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840, covering a range of bore sizes and configurations.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
