Product Number: IOS12252428
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS08192830 | 8 | 19 | 28 | 30 |
| IOS10222420 | 10 | 22 | 24 | 20 |
| IOS12222528 | 12 | 22 | 25 | 28 |
| IOS1302 | 7.9 | 22.2 | 25.4 | 27.8 |
| IOS10252025 | 10 | 25 | 20 | 25 |
| IOS8.5262525 | 8.5 | 26 | 25 | 25 |
| IOS10273840 | 10 | 27 | 38 | 40 |
| IOS1460 | 12.7 | 28.6 | 25.4 | 28.6 |
| IOS12301718 | 12 | 30 | 17 | 18 |
| IOS12303640 | 12 | 30 | 36 | 40 |
Compact and suited to lighter, sensitive installations where controlled deflection matters, IOS12252428 is a 12 mm inner-outer-sleeve bush with dimensions A: 12 mm, B: 25 mm, C: 24 mm and D: 28 mm, engineered for dynamic load absorption in applications where a smaller envelope and lower load capacity are the design priority. Its rubber-to-metal bonded construction bonds the elastomer firmly between inner and outer metal sleeves, delivering high durability under repeated dynamic cycling and prolonged service life without any requirement for lubrication or scheduled maintenance. The bush accepts loading in shear, compression or a combination of both, adapting naturally to the complex force paths found in compact mechanical linkages, pivot bearings and cab mounts on light-duty or sensitive equipment. Rubber-to-metal bonding eliminates metal-to-metal contact, reducing transmitted vibration, protecting surrounding structures and improving operator comfort, qualities that make this size particularly well suited to instruments, controls or chassis points where isolation performance at lower load is paramount. Typical service environments include construction and off-highway machinery, agricultural equipment, power generation plant, marine installations, railway and mass transit vehicles, automotive assemblies, and military and defence platforms. The bush performs across this breadth of industries because the IOS design philosophy prioritises consistent bonded-rubber isolation regardless of orientation or load direction. The IOS12252428 belongs to an extensive inner-outer-sleeve bush family. Related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, spanning a range of dimensions and load envelopes to suit adjacent mounting positions within the same assembly.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 12mm |
|---|---|
| Outer Diameter (ØB) | 25mm |
| Rubber Body Length (C) | 24mm |
| Overall Length (D) | 28mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

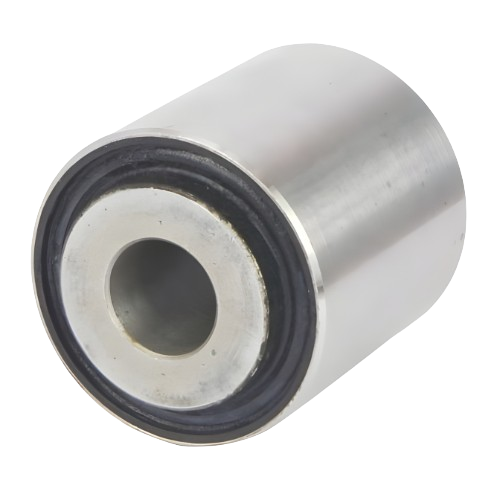

Suspension Bush - Inner Dia 12mm, Outer Dia 25mm, L 24mm - IOS12252428
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS10222420 | IOS10252025 | IOS10253540 | IOS10273840 | IOS8.5262525 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 10mm | 10mm | 10mm | 10mm | 8.5mm |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The IOS12252428 has the following dimensions: A (inner diameter) 12 mm, B 25 mm, C 24 mm and D 28 mm.
A. The IOS12252428 can be loaded in shear, compression or a combination of both, making it adaptable to the mixed force directions encountered in pivot bearings, mechanical linkages and cab mount applications.
A. No. The rubber-to-metal bonded construction means the IOS12252428 requires no lubrication and is entirely maintenance free throughout its service life.
A. The IOS12252428 is suited to pivot bearings, mechanical linkages and cab mounts across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. Related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a range of dimensions and load envelopes.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber options, plus additional and custom sizes, are available on request.
