Product Number: IOS1302
Variations
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS08192830 | 8 | 19 | 28 | 30 |
| IOS10222420 | 10 | 22 | 24 | 20 |
| IOS12222528 | 12 | 22 | 25 | 28 |
| IOS10252025 | 10 | 25 | 20 | 25 |
| IOS12252428 | 12 | 25 | 24 | 28 |
| IOS8.5262525 | 8.5 | 26 | 25 | 25 |
| IOS10273840 | 10 | 27 | 38 | 40 |
| IOS1460 | 12.7 | 28.6 | 25.4 | 28.6 |
| IOS12301718 | 12 | 30 | 17 | 18 |
| IOS12303640 | 12 | 30 | 36 | 40 |

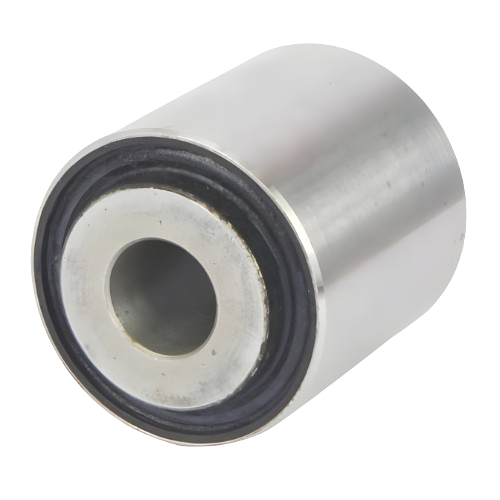

At the compact end of the IOS range, the IOS1302 inner-outer-sleeve bush is engineered for lighter, sensitivity-critical installations where precise vibration isolation and controlled deflection take priority over high-load capacity. With a bore diameter (A) of 7.9 mm, outer sleeve diameter (B) of 22.2 mm, overall length (C) of 25.4 mm and flange diameter (D) of 27.8 mm, this is the smallest bush in the IOS family and is well suited to applications where packaging space is restricted and mounting loads are at the lighter end of the scale. Constructed using rubber-to-metal bonding technology, the IOS1302 encapsulates rubber between inner and outer metal sleeves to deliver high durability under dynamic loads and prolonged service life. The bonded construction requires no lubrication and is entirely maintenance free, making it a reliable fit-and-forget component in demanding service environments. Mounts of this type can be loaded in shear, compression, or a combination of both, giving engineers flexibility in their mounting arrangements. At its compact dimensions, this bush is particularly well suited to pivot bearings, mechanical linkages and cab mounts in applications such as agricultural machinery, automotive assemblies, and light off-road vehicles where operator comfort and the protection of surrounding structures are design priorities. Industries served by this bush family include construction and off-highway, agriculture, automotive, marine, power generation, railway and mass transit, and military and defence. This bush is available in a range of sizes across the IOS family. Variant siblings include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 7.9mm |
|---|---|
| Outer Diameter (ØB) | 22.2mm |
| Rubber Body Length (C) | 25.4mm |
| Overall Length (D) | 27.8mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 7.9mm, Outer Dia 22.2mm, L 25.4mm - IOS1302
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | IOS12222528 | IOS12252428 | IOS12301718 | IOS12303640 | IOS12252024 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 12mm | 12mm | 12mm | 12mm | 12.2mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS1302 has a bore diameter (A) of 7.9 mm, outer sleeve diameter (B) of 22.2 mm, overall length (C) of 25.4 mm, and flange diameter (D) of 27.8 mm.
A. This bush is suited to pivot bearings, mechanical linkages, and cab mounts in applications such as agricultural machinery, automotive assemblies, light off-road vehicles, marine equipment, and power generation plant where controlled vibration isolation is required.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. The bush may be loaded in shear, compression, or a combination of both, giving engineers flexibility in their mounting arrangements.
A. Yes. Stainless steel metalwork, oil-resistant rubbers, high-temperature rubbers, and additional or custom sizes are available on request.
A. Variant siblings in the IOS range include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
