Platform trolleys carry what hands shouldn't: the flat-bed trucks that move boxes, equipment, materials and machinery parts across workshops, stores and sites at walking pace and without strained backs. PartsForMachines supplies platform trolleys to the trade as an Authorised Distributor and Seller for Sealey and Draper, alongside the pallet trucks and handling equipment in the same Storage & Handling section.
The specification follows the load and the route. Capacity is the first filter, rated against the heaviest realistic load, with platform dimensions deciding what actually sits on the deck and folding-handle designs answering the storage and van questions. The wheels carry the practical differences: diameter and material set how the trolley rolls over thresholds, cables and yard surfaces, with larger wheels and pneumatic options for rough ground and softer non-marking compounds for finished floors, and braked castors holding the trolley on slopes and at loading points. Deck materials run from steel and aluminium for trade duty to timber and composite platforms, with mesh-sided and shelf variants organising mixed loads. Each product page lists capacity, platform size, wheel specification and folded dimensions, with Compare lining up trolleys side by side and Ask Simon answering route-and-load questions.
The honest buying note is capacity culture: a trolley rated for the load moves it safely for years, while the routinely overloaded one bends its axles and sheds its wheels, and the price gap between adequate and right is small.
Pallet trucks and the wider handling range complete the section. For fleet quantities, contact the team via WhatsApp 07754288583.
| Model No | STR004 |
|---|---|
| Brand | Sealey |
| Maximum Weight Capacity | 100kg (25kg per Level) |
| Nett Weight | 3.06kg |
| Overall Size (W x D x H) | 460 x 460 x 1160mm |
| Model No | BC1000 |
|---|---|
| Adjustable Beam Width | 75-220mm |
| Brand | Sealey |
| Capacity | 1000kg |
| Dimensions | (A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
| Model No | CM150 |
|---|---|
| Brand | Sealey |
| Capacity | 150kg |
| Nett Weight | 3.45kg |
| Size (W x D x H) | 605 x 400 x 120mm |
| Model No | BC2000 |
|---|---|
| Adjustable Beam Width | 75-220mm |
| Brand | Sealey |
| Capacity | 2000kg |
| Dimensions | (A) - 260mm, (B) - 180-360mm, (C) - 74mm, (D) - 6mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
| Model No | PT500 |
|---|---|
| Brand | Sealey |
| Nett Weight | 7kg |
| Capacity | 500kg |
| Test Load | 750kg |

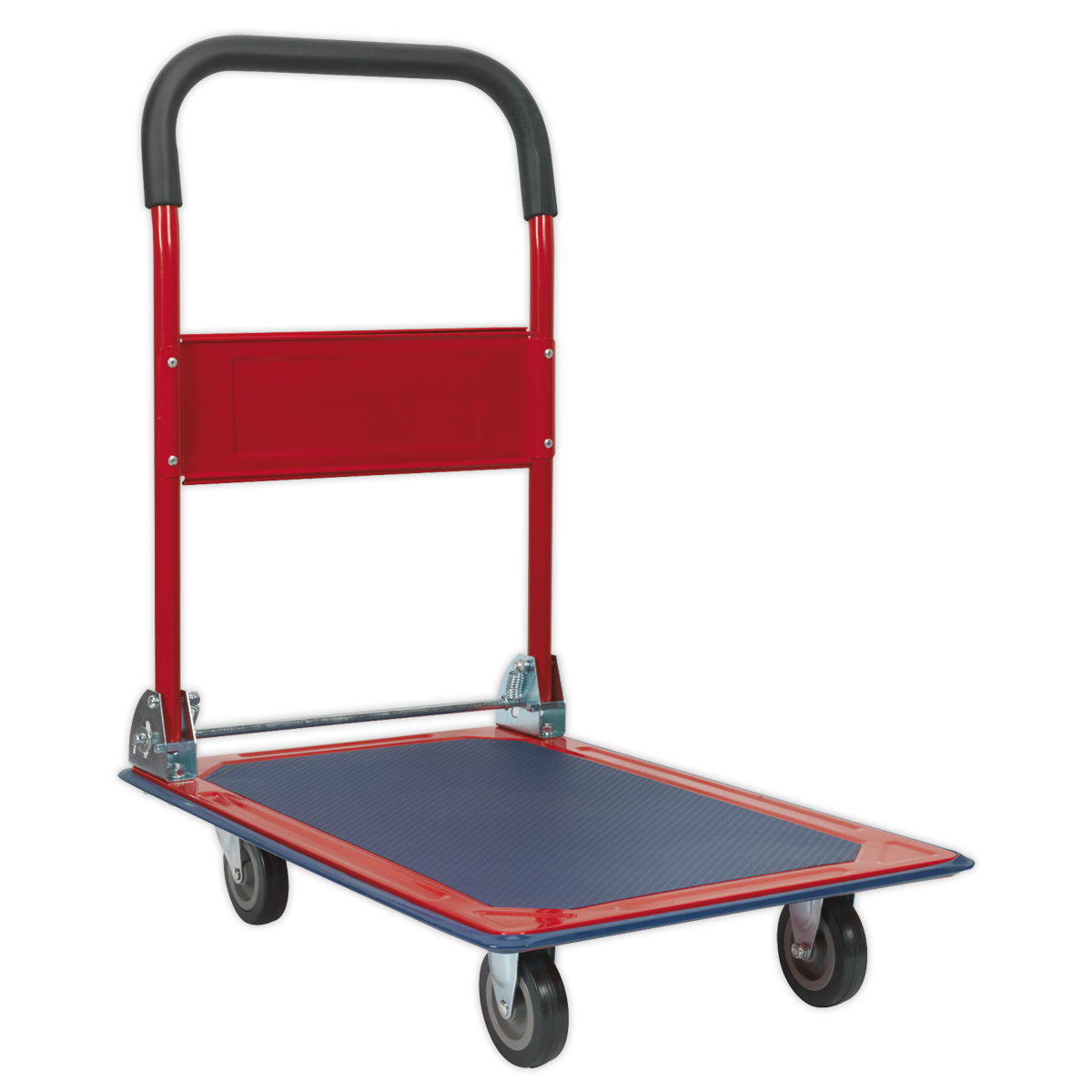

| Model No | CST991 |
|---|---|
| Brand | Sealey |
| Capacity | 150kg |
| Nett Weight | 7.51kg |
| Overall Height | 815mm |
| Model No | CST802 |
|---|---|
| Brand | Sealey |
| Capacity | 70kg |
| Nett Weight | 9.3kg |
| Overall Height | 1180mm (inc. handle) |
| Model No | PT1000 |
|---|---|
| Brand | Sealey |
| Nett Weight | 12kg |
| Capacity | 1000kg |
| Test Load | 1500kg |
| ITEM NO | 03851 |
|---|---|
| Suitable For | 03849 |
| Safe Working Load | 1 TONNE |
| Min. 'I' Beam Width | 64mm |
| Max. 'I' Beam Width | 140mm |
| Model No | BC3000 |
|---|---|
| Adjustable Beam Width | 80-320mm |
| Brand | Sealey |
| Capacity | 3000kg |
| Dimensions | (A) - 354mm, (B) - 235-490mm, (C) - 103mm, (D) - 8mm, (E) - 260mm, (F) - 140mm, (G) - 45mm, (H) - Ø24mm |
| Model No | CST993 |
|---|---|
| Brand | Sealey |
| Capacity | 250kg |
| Nett Weight | 16.5kg |
| Overall Height | 960mm |
| Model No | PT1000G |
|---|---|
| Brand | Sealey |
| Nett Weight | 17kg |
| Capacity | 1000kg |
| Test Load | 1500kg |
| Model No | CST992 |
|---|---|
| Brand | Sealey |
| Capacity | 300kg |
| Nett Weight | 14.23kg |
| Overall Height | 870mm |
| Model No | PT2000 |
|---|---|
| Brand | Sealey |
| Nett Weight | 20kg |
| Capacity | 2000kg |
| Test Load | 3000kg |
| Model No | CST997 |
|---|---|
| Brand | Sealey |
| Capacity | 200kg |
| Cart Size, Internal | 220 x 480mm x 930mm |
| Nett Weight | 19.95kg |

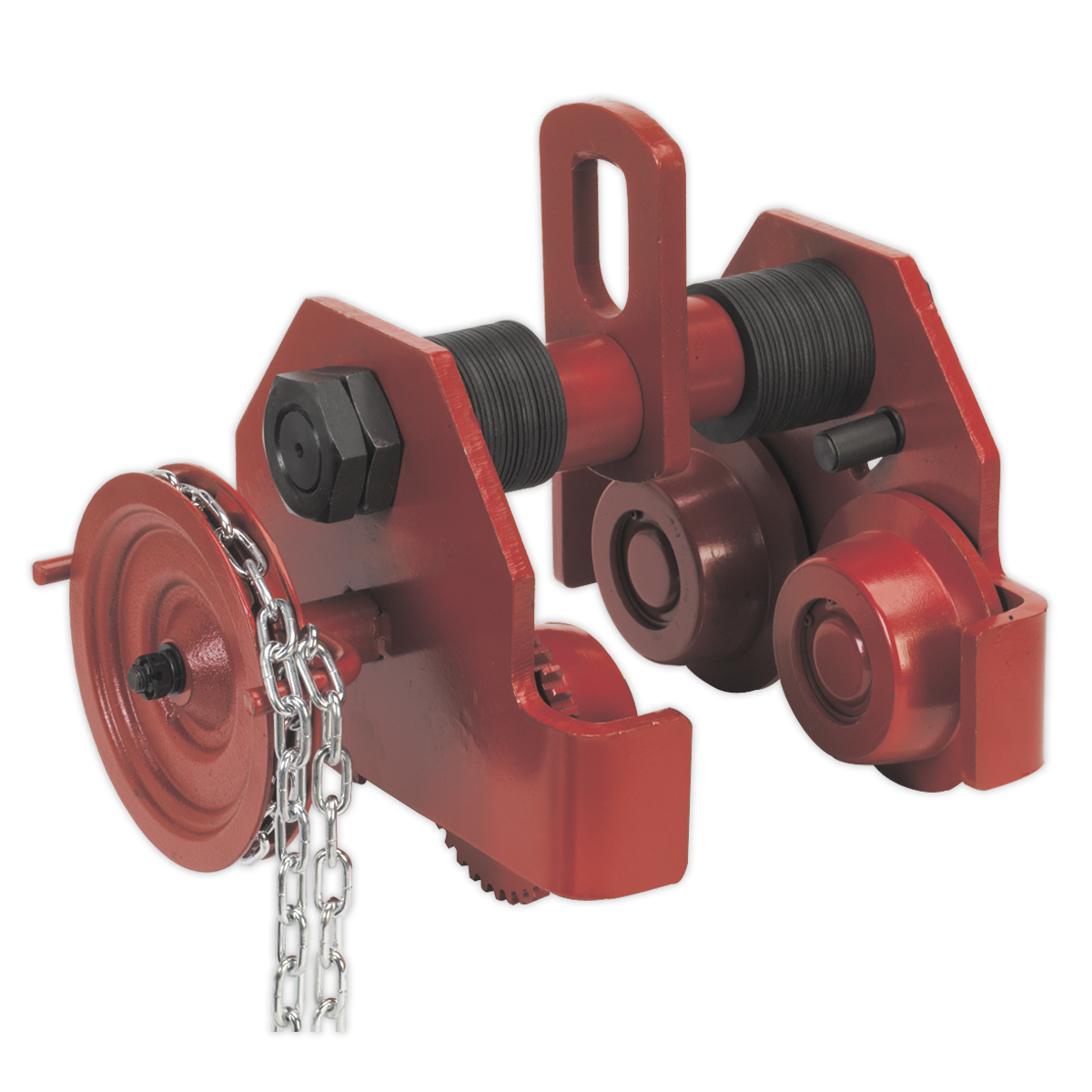

| Model No | PT3000G |
|---|---|
| Brand | Sealey |
| Nett Weight | 41kg |
| Capacity | 3000kg |
| Test Load | 4500kg |
| Model No | CST806 |
|---|---|
| Brand | Sealey |
| Capacity | 450kg |
| Cart Size, Internal | 560 x 1120 x 300mm |
| Nett Weight | 30.77kg |
| Model No | HPT150 |
|---|---|
| Brand | Sealey |
| Capacity | 150kg |
| Maximum Platform Height | 700mm |
| Minimum Platform Height | 225mm |
| Model No | CST773 |
|---|---|
| Brand | Sealey |
| Capacity | 300kg |
| Nett Weight | 49.64kg |
| Overall Height | 1150mm |
| Model No | HPT300 |
|---|---|
| Brand | Sealey |
| Capacity | 300kg |
| Maximum Platform Height | 770mm |
| Minimum Platform Height | 270mm |
| Model No | HPT500 |
|---|---|
| Brand | Sealey |
| Capacity | 500kg |
| Maximum Platform Height | 860mm |
| Minimum Platform Height | 280mm |
| Model No | PT2200 |
|---|---|
| Brand | Sealey |
| Capacity | 2200kg |
| Fork Spread | 230mm |
| Forks (Length x Overall Width) | 1150 x 550mm |
| Model No | HPT400H |
|---|---|
| Brand | Sealey |
| Capacity | 300kg |
| Maximum Platform Height | 1290mm |
| Minimum Platform Height | 360mm |
| Model No | HPT1000 |
|---|---|
| Brand | Sealey |
| Capacity | 1000kg |
| Maximum Platform Height | 1020mm |
| Minimum Platform Height | 430mm |
| Model No | EVBT700 |
|---|---|
| Brand | Sealey |
| Capacity | 700kg |
| Maximum Platform Height | 1500mm |
| Minimum Platform Height | 445mm |
| Model No | EVBT1000 |
|---|---|
| Brand | Sealey |
| Capacity | 1000kg |
| Maximum Platform Height | 1750mm |
| Minimum Platform Height | 550mm |
| Model No | EVBT1200 |
|---|---|
| Brand | Sealey |
| Capacity | 1200kg |
| Maximum Platform Height | 1780mm |
| Minimum Platform Height | 650mm |
| Max. load | 80kg |
|---|---|
| Wheel size | 100 x 170mm |
| Dimensions | W 980 x H 560 x D 620mm |
| Dimensions (folded) | W 750 x H 180 x D 620mm |
