Product Number: BC1000
Variations

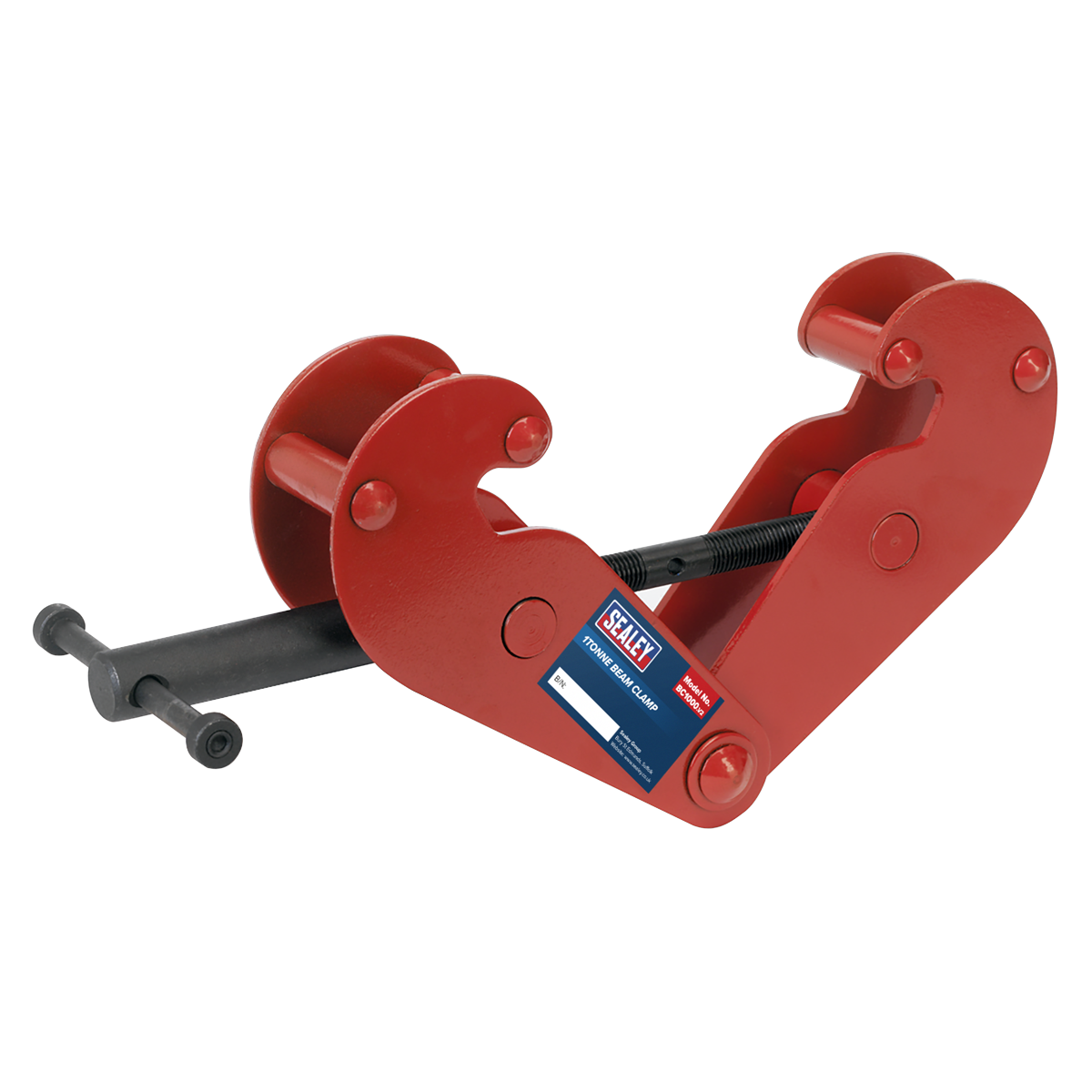

When you need a reliable, semi-permanent lifting point on a steel beam, improvised solutions create serious risk. The Sealey BC1000 Beam Clamp provides a dedicated 1000kg capacity attachment point for chain blocks, hoists, and lifting tackle, giving you a secure and repeatable setup without compromise. The clamp adjusts to fit beam widths from 75mm to 220mm, making it compatible with a wide range of structural steel sections. Its low-profile design is made possible by an integral pivot and lifting point, keeping clearances tight where space is at a premium. Beyond use as a fixed lifting point, the BC1000 can also be used for lifting and transferring steel beams directly, as well as for pulling applications. Key dimensions: overall length (A) 260mm, jaw opening range (B) 180-360mm, jaw depth (C) 64mm, plate thickness (D) 5mm, centre height (E) 215mm, beam flange engagement (F) 102-155mm, thread diameter (G) 25mm, and lifting eye bore (H) 22mm. Refer to the Sealey catalogue diagram for full dimensional reference.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | BC1000 |
|---|---|
| Adjustable Beam Width | 75-220mm |
| Brand | Sealey |
| Capacity | 1000kg |
| Dimensions | (A) - 260mm, (B) - 180-360mm, (C) - 64mm, (D) - 5mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
| Nett Weight | 4.2kg |
| Note | Refer to catalogue for diagram. |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 85655 PALLET TRUCK, 2.5 TONNE
£524.30
£514.02
2% OFF
Free delivery in UK Mainland
|
Sealey PT1000G Geared Trolley 1 Tonne for I-Beam & RSJ Gantry
£127.16
£124.67
2% OFF
Free delivery in UK Mainland
|
Sealey PT1000 Plain Trolley 1 Tonne for I-Beam & RSJ
£96.96
£95.06
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 85655 | PT1000G | PT1000 | 03851 | 7630180 | 7630185 |
| Capacity | 2,500kg | 1000kg | 1000kg | |||
| Length (mm) | 1150 | 140 | 140 | 64 | 550 | 160 |
| Model No | PT1000G | PT1000 | ||||
| Nett Weight | 72kg | 17kg | 12kg | |||
| Weight (kg) | 500 | 17 | 12 | 94 | 95 | |
A. The BC1000 has a rated capacity of 1000kg.
A. The clamp is adjustable and suits steel beams with a flange width between 75mm and 220mm.
A. Yes. The BC1000 is suitable for semi-permanent attachment to steel beams and is designed to act as a lifting point for chain blocks, hoists, and lifting tackle.
A. Yes. The clamp may also be used for lifting and transfer of steel beams, as well as a pulling clamp.
A. The lifting eye bore (dimension H) is Ø22mm. Please refer to the Sealey catalogue diagram for full dimensional context.
A. The low profile is achieved through an integral pivot and lifting point, which minimises the drop below the beam and preserves working clearance.
