Product Number: BC2000
Variations

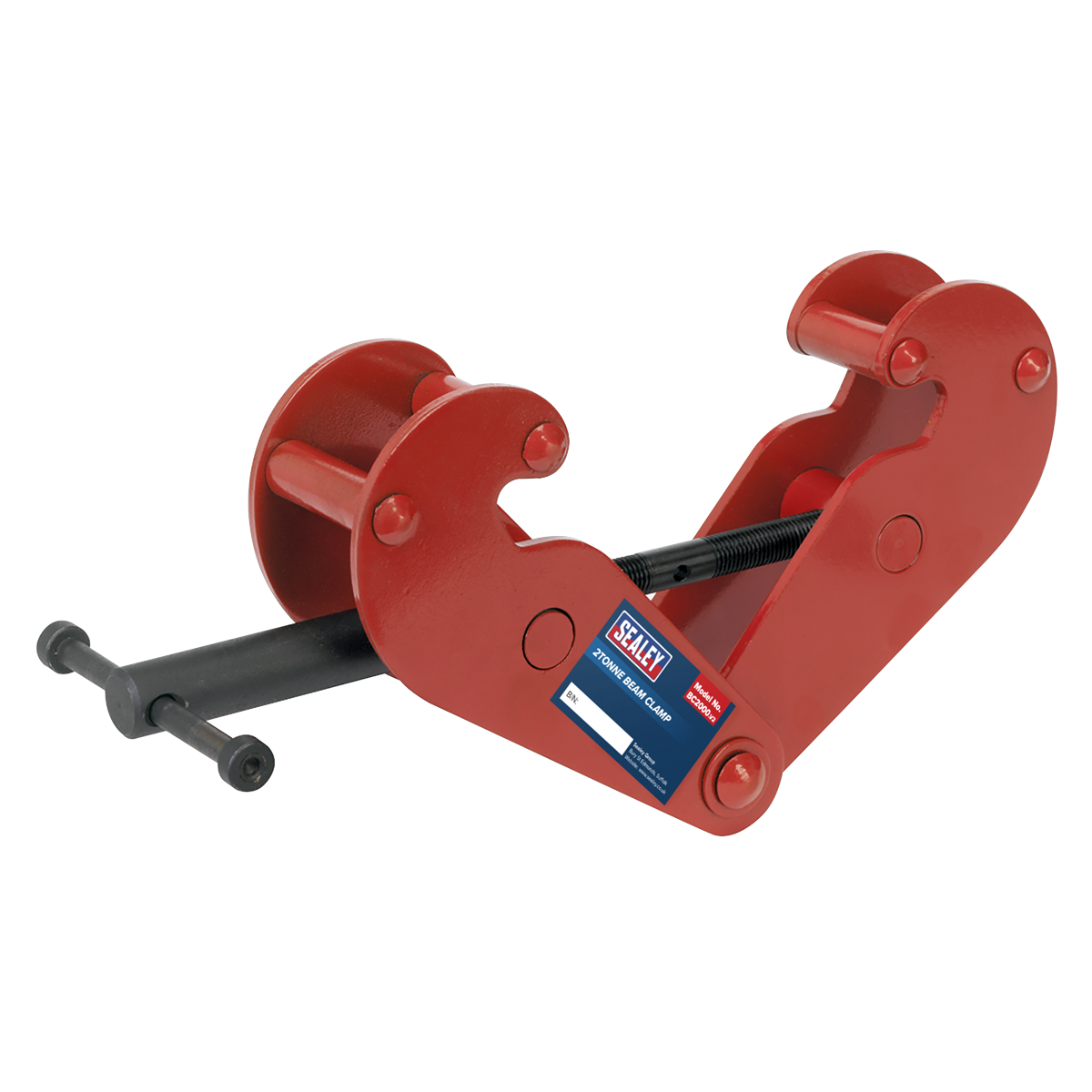

Heavy lifting operations demand a secure, consistent attachment point that will not shift under load. The Sealey BC2000 Beam Clamp delivers a 2000kg rated capacity fixing point on steel beams for use with chain blocks, hoists, and lifting tackle, and is built from an all-steel structure with powder paint coating for rust resistance. The clamp adjusts to suit beam flange widths between 75mm and 220mm, covering a broad range of structural sections, and its low-profile design achieved through an integral pivot and lifting point keeps the drop below the beam to a minimum. In addition to acting as a semi-permanent lifting point, the BC2000 can be used directly for lifting and transferring steel beams and as a pulling clamp. Key dimensions: height (A) 230mm, jaw range (B) 180-360mm, jaw depth (C) 74mm, plate thickness (D) 6mm, centre height (E) 215mm, flange engagement (F) 102-155mm, thread diameter (G) 25mm, and lifting eye bore (H) 22mm. Refer to the Sealey catalogue diagram for full dimensional reference.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | BC2000 |
|---|---|
| Adjustable Beam Width | 75-220mm |
| Brand | Sealey |
| Capacity | 2000kg |
| Dimensions | (A) - 260mm, (B) - 180-360mm, (C) - 74mm, (D) - 6mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
| Nett Weight | 4.95kg |
| Note | Refer to catalogue for diagram. |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 85655 PALLET TRUCK, 2.5 TONNE
£524.30
£514.02
2% OFF
Free delivery in UK Mainland
|
Sealey PT2000 Plain Trolley 2 Tonne for I-Beam & RSJ
£145.54
£142.69
2% OFF
Free delivery in UK Mainland
|
Sealey PT1150SC Pallet Truck 2000kg 1150x555mm with Weighing Scales
£1,466.85
£1,438.09
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 85655 | PT2000 | 03851 | 7630180 | 7630185 | PT1150SC |
| Capacity | 2,500kg | 2000kg | 2000kg | |||
| Length (mm) | 1150 | 165 | 64 | 550 | 160 | 115 |
| Model No | PT2000 | PT1150SC | ||||
| Nett Weight | 72kg | 20kg | 94kg | |||
| Weight (kg) | 500 | 20 | 94 | 95 | 94 | |
A. The BC2000 has a rated capacity of 2000kg.
A. The clamp adjusts to fit steel beam flanges between 75mm and 220mm wide.
A. Yes. The BC2000 is suitable for semi-permanent attachment to steel beams and is designed to act as a lifting point for chain blocks, hoists, and lifting tackle.
A. Yes. The clamp may also be used for lifting and transfer of steel beams, as well as a pulling clamp.
A. The BC2000 features an all-steel construction with a powder paint coating applied for rust resistance.
A. The lifting eye bore (dimension H) is Ø22mm. Please refer to the Sealey catalogue diagram for full dimensional context.
