Product Number: 03851

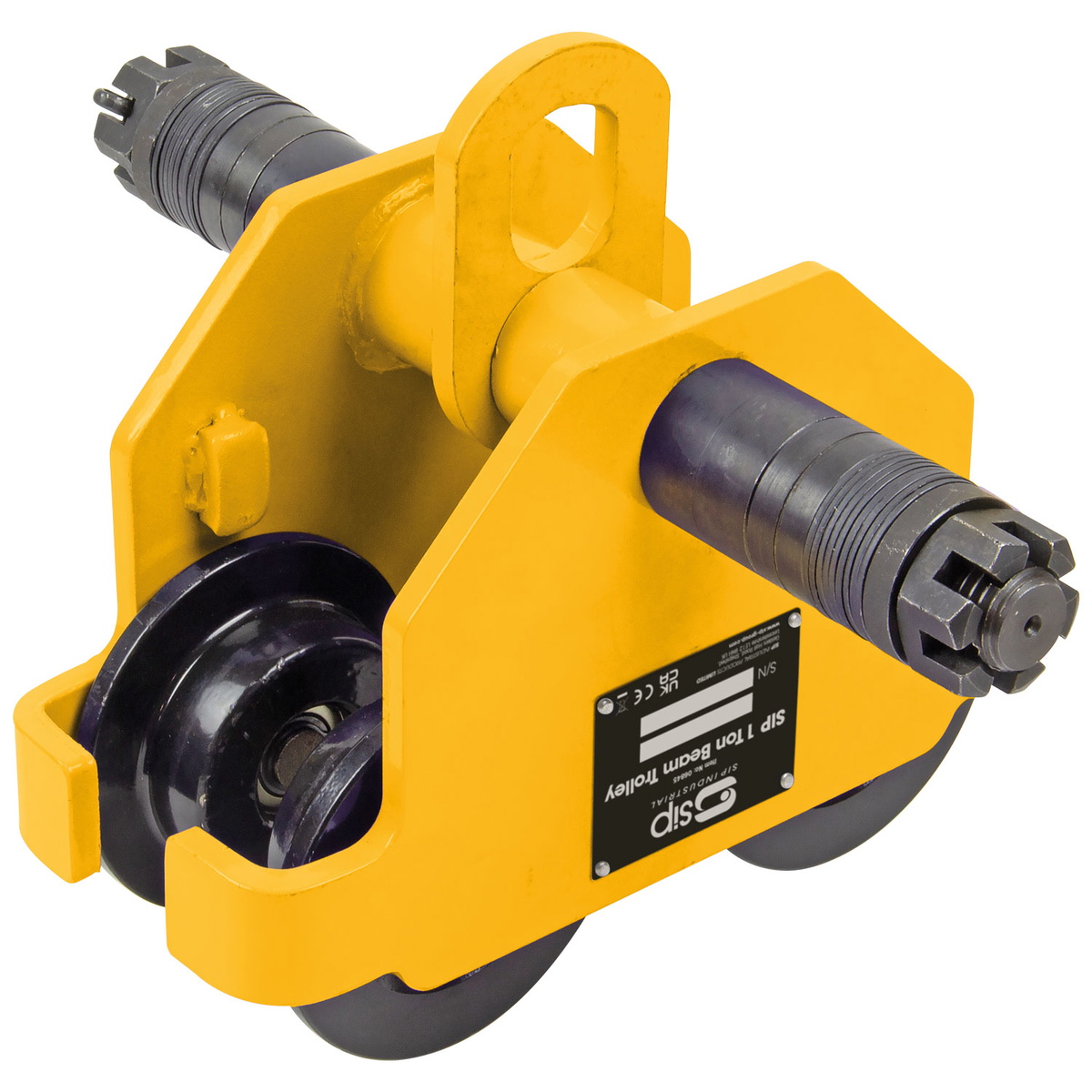

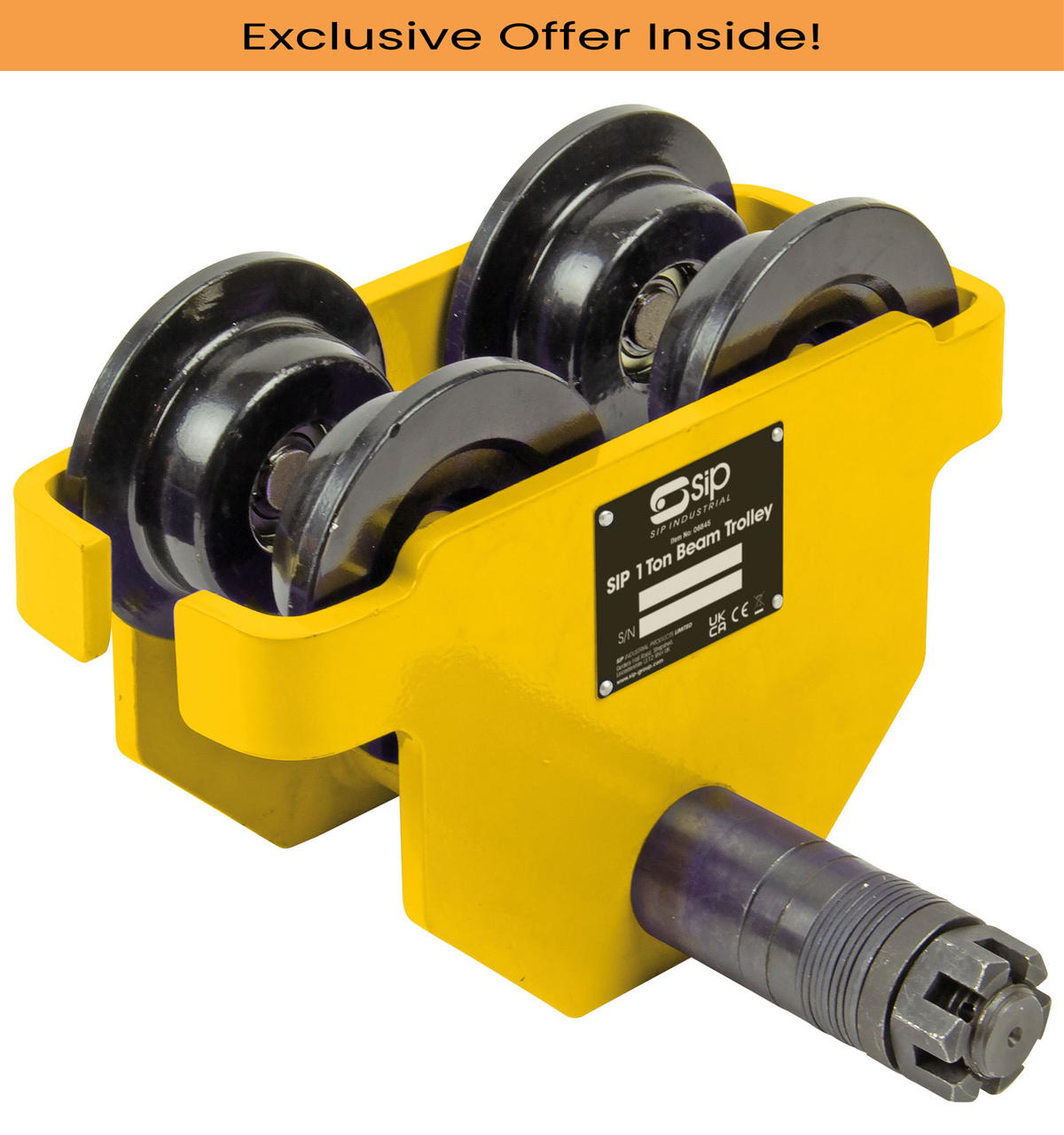

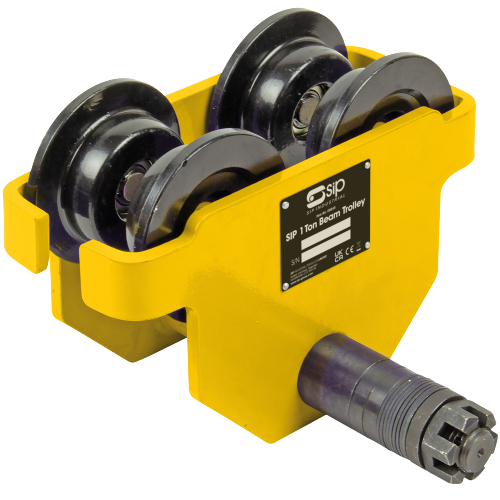

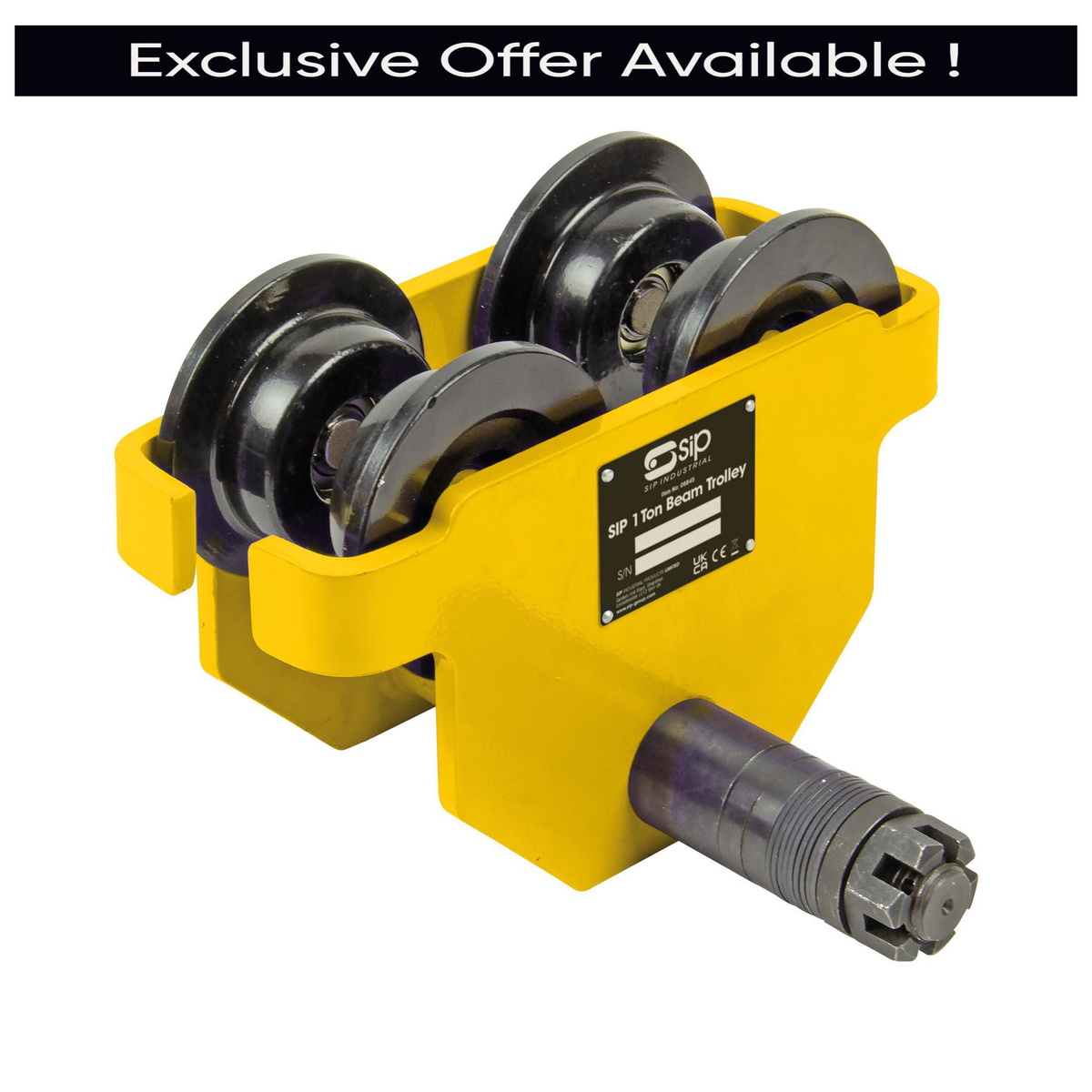

The SIP 03851 is a 1 Tonne Gantry Crane Beam Trolley — a heavy-duty push-pull trolley designed to work alongside the SIP 1 Tonne Mobile Gantry Crane Frame and SIP Chain Block to provide a complete lifting and support solution in garages and workshops.
Constructed for professional-grade manual lifting demands, the trolley is compatible with 'I' section and RSJ beam types across a wide range of sizes. Four heavy-duty bearing-mounted wheels ensure smooth, reliable travel along the beam, whilst integrated wheel guards provide positive protection — a feature of particular importance when two or more trolleys are deployed simultaneously on the same gantry frame.
The trolley accepts 'I' beams with a flange width between 64 mm and 140 mm, accommodating standard beam profiles from 125 mm x 75 mm x 5.5 mm up to 250 mm x 125 mm x 7.5 mm. The rated safe working load is 1 tonne. Designated compatible with item 03849 (the SIP 1 Tonne Mobile Gantry Crane Frame), it is well suited to automotive maintenance and repair, vehicle servicing, material handling, and general manufacturing tasks across garage and workshop environments.
This product is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 1 TONNE Gantry Crane Beam Trolley is a heavy-duty push-pull trolley designed work alongside the SIP 1 TONNE Mobile Gantry Crane Frame and SIP Chain Block to provide a complete lifting and support solution in garages and workshops. This trolley is designed for a variety of professional-grade manual lifting demands with 'I' section and RSJ beam types. With 4 bearing-mounted wheels and integrated wheel guards, it is perfect for when two or more trolleys are in use on the same gantry frame. It is perfect for use in a wide variety of garage and workshop applications including automotive maintenance and repair, servicing, material handling and manufacturing.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03851 |
|---|---|
| Suitable For | 03849 |
| Safe Working Load | 1 TONNE |
| Min. 'I' Beam Width | 64mm |
| Max. 'I' Beam Width | 140mm |
| Min. Standard Beam | 125mm x 75mm x 5.5mm |
| Max. Standard Beam | 250mm x 125mm x 7.5mm |
| Designed For | 'I' sections / RSJ beams |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
03849 | SIP 03849 1 Tonne Gantry Crane Frame | 1 Unit |
£628.23
£609.93
|
Add |
More Info
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey PT1000 Plain Trolley 1 Tonne for I-Beam & RSJ
£96.96
£95.06
2% OFF
Free delivery in UK Mainland
|
Sealey CST802 Canvas Folding Trolley 70kg - 900mm Platform
£80.82
£79.24
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PT1000 | CST802 | PT500 | CST988 | BC3000 |
A. The SIP 03851 has a rated safe working load of 1 tonne.
A. The trolley is designed for use with 'I' section and RSJ beam types.
A. The trolley accepts 'I' beam flange widths from a minimum of 64 mm up to a maximum of 140 mm.
A. It accommodates standard beam profiles from 125 mm x 75 mm x 5.5 mm (minimum) up to 250 mm x 125 mm x 7.5 mm (maximum).
A. The SIP 03851 Beam Trolley is designed to work alongside the SIP 1 Tonne Mobile Gantry Crane Frame (item 03849) and SIP Chain Block to form a complete lifting solution.
A. Yes. The integrated wheel guards fitted to the trolley make it suitable for use when two or more trolleys are deployed simultaneously on the same gantry frame.
A. The SIP 03851 is covered by the SIP 2-Year Standard Silver Warranty.
A. The trolley is suited to garage and workshop applications including automotive maintenance and repair, vehicle servicing, material handling, and manufacturing.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
