Product Number: 25172

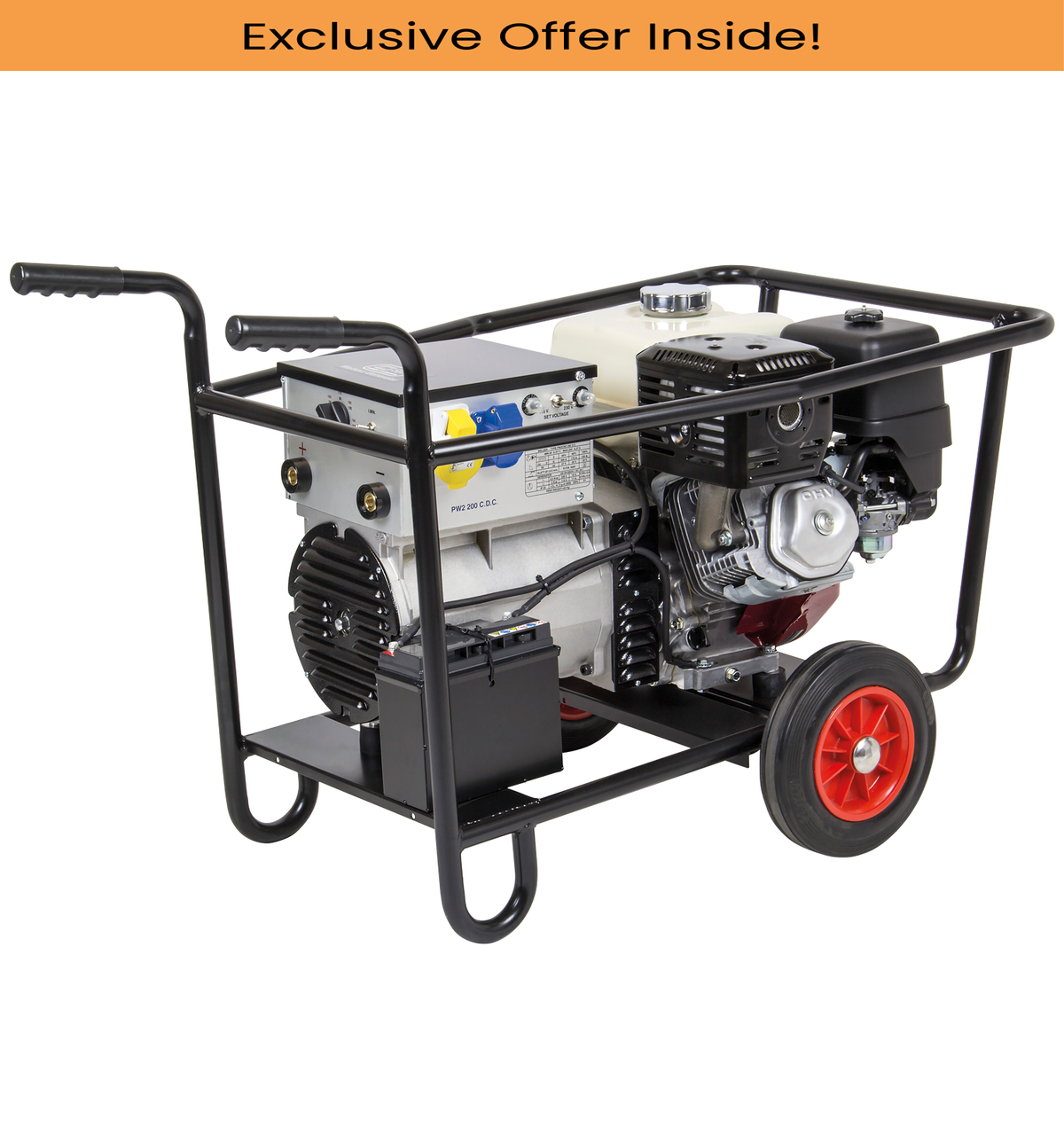

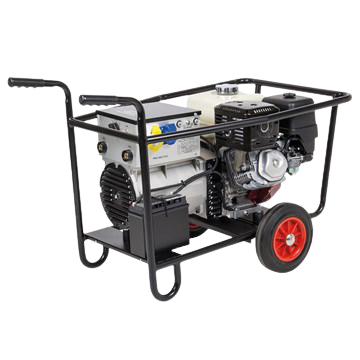

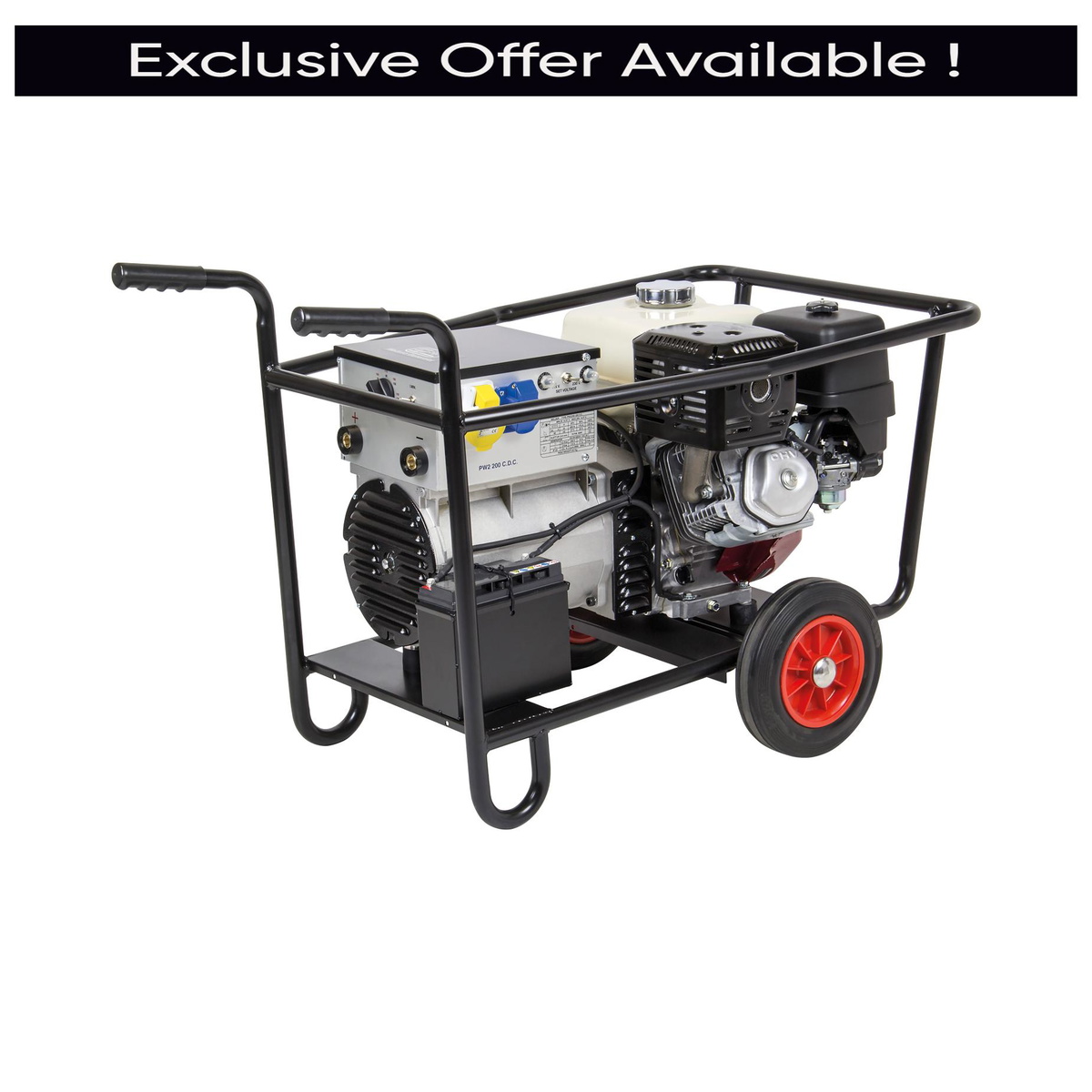

The SIP 25172 P200W-DC ES is a professional petrol welder generator designed for heavy-duty performance in demanding environments. Powered by a Honda GX390 389cc OHV EURO V engine with electric starting, it delivers up to 200A DC welding output and a maximum rated generator output of 4.00kVA, making it equally capable as a field welder and a portable power source.
At the heart of this machine is the Honda GX390 engine, built with a heavy-duty cast iron cylinder liner, inclined cylinder and counterbalance shaft, and a heavy-duty splash-fed lubrication system. A low oil shutdown feature helps prevent engine damage during prolonged use. The welding circuit outputs 50A to 200A DC via Dinse socket connections, with an open circuit voltage of 75V and a duty cycle rated at 170A at 60%. DC output enables the use of specialist electrodes suited to both ferrous and non-ferrous metals.
The generator supplies both 230V and 115V, extending the unit's usefulness as a site power source alongside welding operations. The electrode diameter range runs from 1.6mm to 5mm, accommodating material thicknesses of 1.5mm to 8mm. The 7.3-litre fuel tank provides an approximate runtime of 2.45 hours. The unit carries a Protection Level of IP21 and Insulation Class H. Net weight is 85.50kg; packaged dimensions are 820mm (H) x 800mm (W) x 1200mm (D).
The machine is assembled and tested by SIP in the UK and is supplied on a robust wheel-mounted frame suited to site and workshop deployment. The Honda GX390 engine is covered by a 3-year Honda engine warranty.
Please note: welding plugs and welding leads are not included and must be purchased separately (product number 05110). Accessories for this welder generator must be purchased separately.
Additional Information:
The SIP P200W-DC ES HONDA GX Welder Generator has a powerful 389cc HONDA GX390 engine, which offers 200A weld power and 4KVA generator output for heavy-duty performance.
SIP Industrial are machinery specialists, with the SIP catalogue of products including welding, metalwork, air compressors and tools, power, cleaning, charging, heating, automotive, and more.
Please Note: This product is sold without Welding Plugs/Welding Leads. They need to be bought separately. (Product number: 05110)
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Electric Starting | Yes |
|---|---|
| Engine Type | HONDA GX390 389cc EURO V |
| Output Current | 50A - 200A DC |
| Output Supply | 230v / 115v |
| Duty Cycle | 170A @ 60% |
| Open Circuit Voltage | 75v |
| Electrode Diameter | Ø 1.6mm - 5mm |
| Welding Thickness | 1.5mm - 8mm |
| Max. Rated Output | 4.00kVA |
| Fuel Tank Capacity | 7.3ltr |
| Approx. Runtime | 2.45hrs |
| Protection Level | IP21 |
| Insulation Class | Class H |
| Net Weight | 85.50kg |
| Gross Weight | 90.00kg |
| Packaged Dimensions | 820(H) x 800(W) x 1200mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
14564 | SIP 14564 HONDA GP390 / GX340 / GX390 Air Filter | 1 Unit |
£49.00
£48.04
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25169 P200W-AC ES Honda GX Welder Generator
£2,491.07
£2,442.23
2% OFF
Free delivery in Channel Island
|
SIP 25017 HP200W-AC Honda Welder Generator
£2,075.89
£2,035.19
2% OFF
Free delivery in Channel Island
|
SIP 25020 HP200W-DC Honda Welder Generator
£2,594.87
£2,543.99
2% OFF
Free delivery in Channel Island
|
SIP 25167 P200W-AC Kohler Welder Generator
£1,868.30
£1,831.67
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 25169 | 25017 | 25020 | 25167 |
| Warranty | 24 | 24 | 24 | 24 |
| Fuel Tank Capacity | 7.3 | 7.3 | 7.3 | 7.3 |
| Run time | 2.45 | 2.45 | 2.45 | 2.8 |
| Engine Type | Honda GX | Honda GX | Honda GX | Kohler |
A. The SIP 25172 is powered by a Honda GX390 389cc OHV EURO V petrol engine with electric starting. The engine features a heavy-duty cast iron cylinder liner, inclined cylinder and counterbalance shaft, a heavy-duty splash-fed lubrication system, and a low oil shutdown to help prevent damage.
A. The machine delivers 50A to 200A DC output current, with an open circuit voltage of 75V and a duty cycle of 170A at 60%. Dinse socket connections are fitted as standard. The DC output allows the use of specialist electrodes for both ferrous and non-ferrous metals.
A. The SIP 25172 accommodates electrode diameters from 1.6mm to 5mm and is rated for welding material thicknesses of 1.5mm to 8mm.
A. The maximum rated generator output is 4.00kVA. The unit supplies both 230V and 115V, making it suitable as a site power source alongside welding operations.
A. The fuel tank capacity is 7.3 litres, giving an approximate runtime of 2.45 hours.
A. The SIP 25172 carries a Protection Level of IP21 and Insulation Class H.
A. The Honda GX390 engine is covered by a 3-year Honda engine warranty. The machine is assembled and tested by SIP in the UK.
A. No. Welding plugs and welding leads are not included and must be purchased separately. The compatible product number for welding leads is 05110. All accessories for this welder generator must be purchased separately.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
