Product Number: 25017

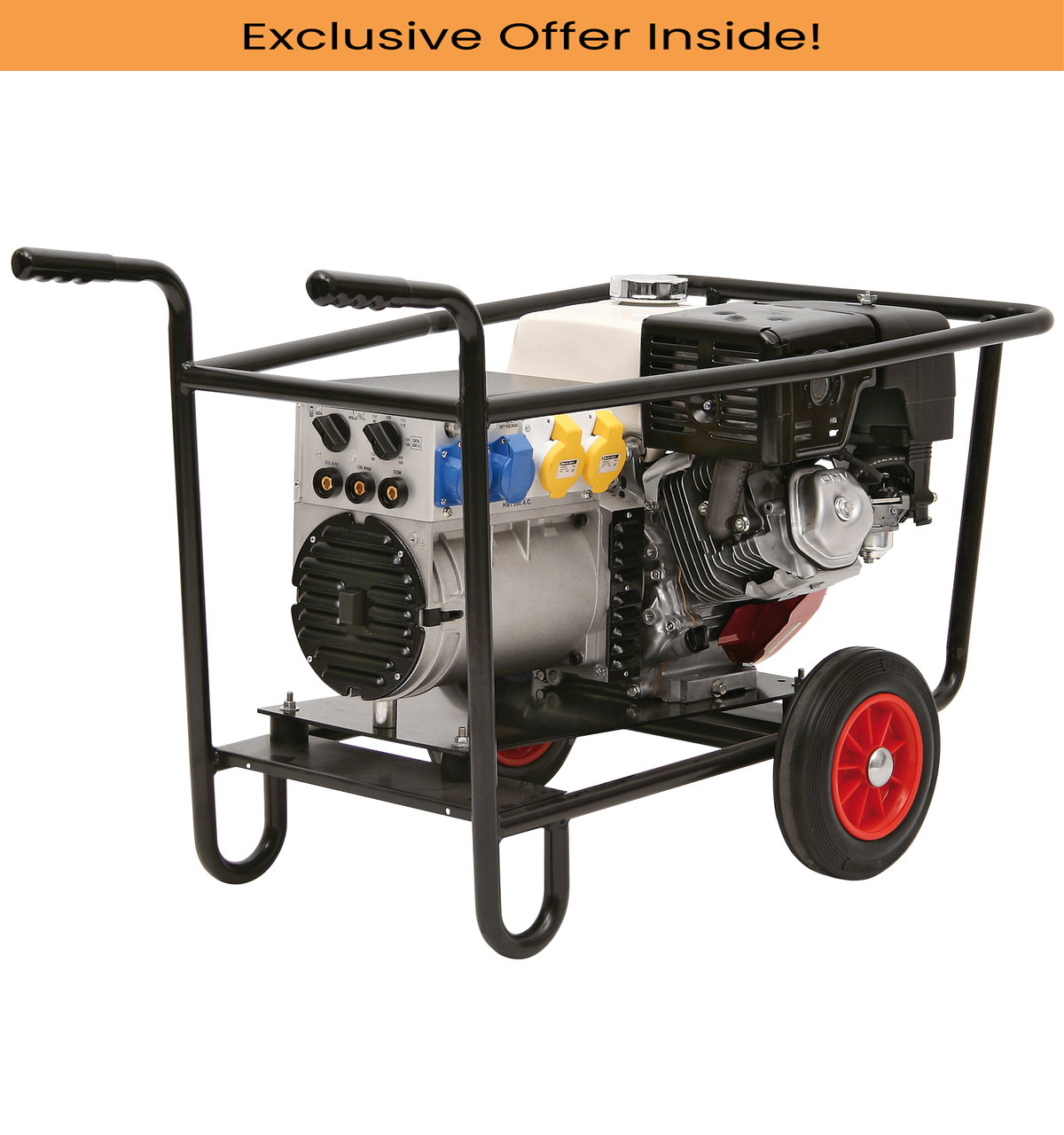

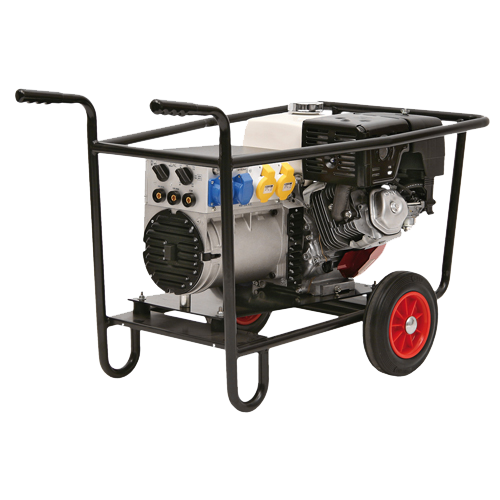

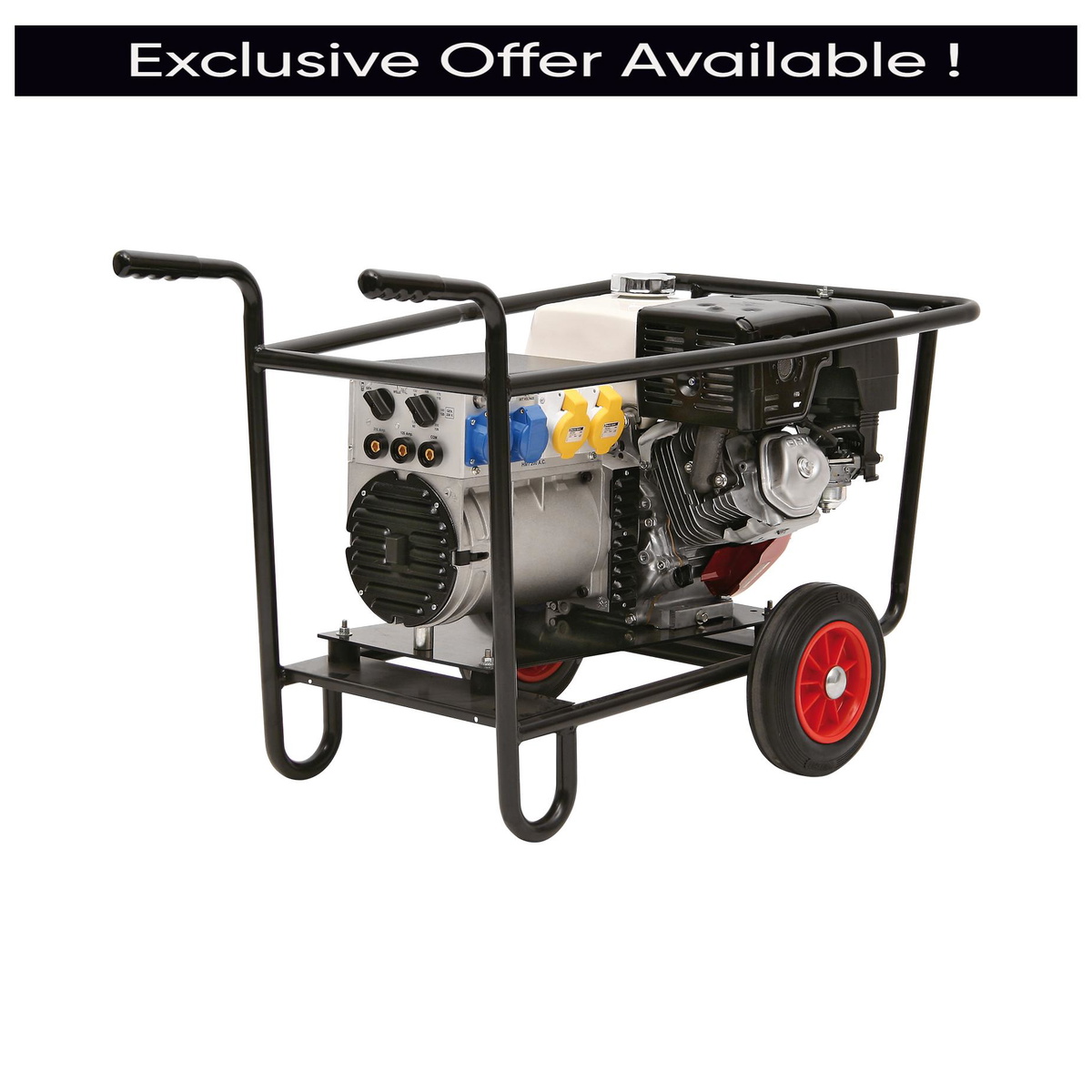

The SIP HP200W-AC (SKU 25017) is a professional petrol welder generator powered by a Honda GX390 389cc EURO V engine, designed to provide mobile welding solutions for various tasks as well as auxiliary power outputs for use as a standalone generator. With an output current range of 60A to 200A AC and a maximum rated output of 7.00kVA, this machine is built for demanding environments where mains power is unavailable.
The HP200W-AC is engineered around a robust wheel-mounted design with durable components suited to site and field use. The Honda GX390 engine features an inclined cylinder and counterbalance shaft, hot spark ignition, and splash-fed lubrication, contributing to efficient fuel consumption and reduced oil consumption for extended working life. A low oil shutdown system helps protect the engine from damage during operation. Dual output supply of 230v and 115v extends the machine's versatility as a generator across a range of auxiliary applications.
Welding performance covers an electrode diameter range of Ø 1.6mm to 5mm and an approximate weld thickness range of 1.5mm to 8mm, with a duty cycle of 180A at 60%. Open circuit voltage is selectable between 45v (LO) and 60v (HI). The 7.3-litre fuel tank delivers an approximate runtime of 2.45 hours. The unit carries IP21 protection and Class H insulation, confirming suitability for professional workshop and outdoor use. Net weight is 85.50kg.
The HP200W-AC is assembled and tested by SIP in the UK. Welding plugs and welding leads are not included and must be purchased separately (product number 02690); accessories for this welder also require separate purchase. The machine benefits from a 3-year Honda engine warranty.
Additional Information:
The SIP HP200W-AC is a powerful petrol welder generator designed to provide mobile welding solutions for various tasks, as well as offer auxiliary outputs for use as a standalone generator.
SIP are machinery specialists, with our catalogue featuring welding, metalwork, air compressors and tools, battery chargers, lifting, heating, power, woodworking, and cleaning equipment.
Please Note: This product is sold without Welding Plugs/Welding Leads. They need to be bought separately. (Product number: 02690)
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Electric Starting | No |
|---|---|
| Engine Type | HONDA GX390 389cc EURO V |
| Output Current | 60A - 200A AC |
| Output Supply | 230v / 115v |
| Duty Cycle | 180A @ 60% |
| Open Circuit Voltage | 45v (LO) / 60v (HI) |
| Electrode Diameter | Ø 1.6mm - 5mm |
| Welding Thickness | 1.5mm - 8mm |
| Max. Rated Output | 7.00kVA |
| Fuel Tank Capacity | 7.3ltr |
| Approx. Runtime | 2.45hrs |
| Protection Level | IP21 |
| Insulation Class | Class H |
| Net Weight | 85.50kg |
| Gross Weight | 90.00kg |
| Packaged Dimensions | 820(H) x 800(W) x 1200mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
04592 | SIP 04592 13a/16a 230v Socket adaptor | 1 Unit |
£37.01
£36.28
|
Add |
|
14564 | SIP 14564 HONDA GP390 / GX340 / GX390 Air Filter | 1 Unit |
£49.00
£48.04
|
Add |
|
04595 | SIP 04595 16a 230v Generator Plug | 1 Unit |
£12.02
£11.78
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25020 HP200W-DC Honda Welder Generator
£2,594.87
£2,543.99
2% OFF
Free delivery in Channel Island
|
SIP 25169 P200W-AC ES Honda GX Welder Generator
£2,491.07
£2,442.23
2% OFF
Free delivery in Channel Island
|
SIP 25172 P200W-DC ES Honda GX Welder Generator
£2,906.26
£2,849.27
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 25020 | 25169 | 25172 | 04462 |
| Warranty | 24 | 24 | 24 | 24 |
| Fuel Tank Capacity | 7.3 | 7.3 | 7.3 | 3.6 |
| Run time | 2.45 | 2.45 | 2.45 | 2.6 |
| Supply Type | 230 / 110 | |||
| Engine Type | Honda GX | Honda GX | Honda GX | Honda GX |
A. The SIP HP200W-AC is powered by a Honda GX390 389cc EURO V petrol engine. It features an inclined cylinder and counterbalance shaft, hot spark ignition, and splash-fed lubrication, along with a low oil shutdown system to help prevent engine damage.
A. The SIP HP200W-AC delivers an output current range of 60A to 200A AC, with a duty cycle of 180A at 60%. Open circuit voltage is selectable at 45v (LO) or 60v (HI).
A. The machine accommodates electrode diameters from Ø 1.6mm to 5mm and is suited to an approximate welding thickness range of 1.5mm to 8mm.
A. Yes. The HP200W-AC provides auxiliary output supply at both 230v and 115v, allowing it to function as a standalone generator with a maximum rated output of 7.00kVA, in addition to its ARC welding capability.
A. The machine has a 7.3-litre fuel tank with an approximate runtime of 2.45 hours. The Honda GX390 engine is noted for efficient fuel consumption.
A. The HP200W-AC has an IP21 protection level and Class H insulation, confirming its suitability for professional outdoor and workshop environments.
A. No. The SIP HP200W-AC is sold without welding plugs or welding leads; these must be purchased separately (product number 02690). Accessories for this welder also require separate purchase.
A. The SIP HP200W-AC benefits from a 3-year Honda engine warranty. The machine is assembled and tested by SIP in the UK.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
