Product Number: 25169
Variations

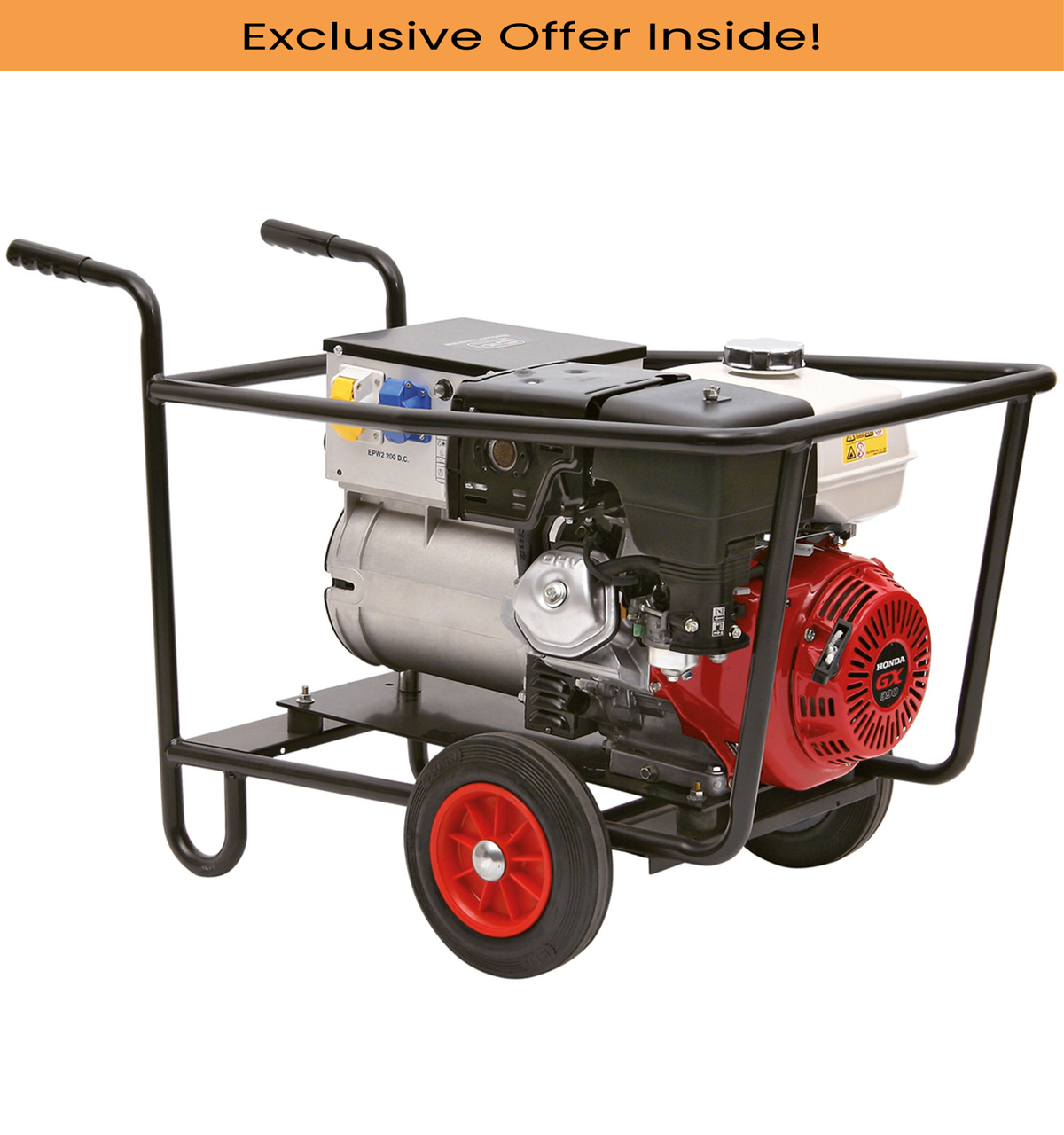

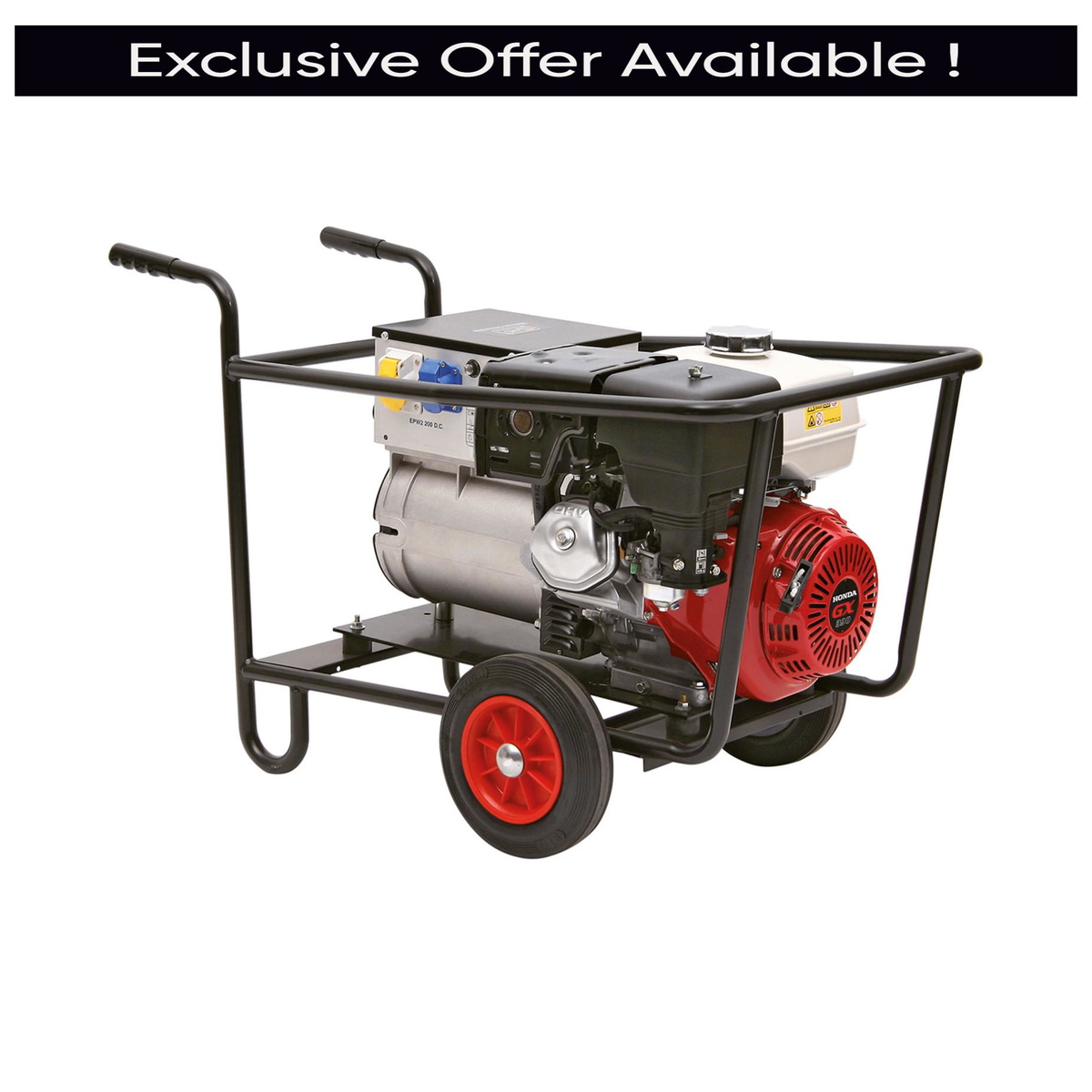

The SIP 25169 P200W-AC ES Honda GX Welder Generator is a professional-grade petrol welder generator designed for heavy-duty performance in demanding workshop and site environments. Powered by a 389cc Honda GX390 OHV Euro V engine with electric starting, the unit delivers up to 200A AC welding current alongside a 7.00kVA maximum rated generator output, making it equally capable as a welding power source and a site power supply.
The welding circuit covers an output current range of 60A to 200A AC, with an open circuit voltage of 45v (LO) and 60v (HI), accommodating electrode diameters from Ø1.6mm to 5mm and welding material thicknesses from 1.5mm to 8mm. A duty cycle of 180A at 60% reflects the unit's sustained working capability. Generator output is available at both 230v and 115v supply voltages, and the machine is equipped with Dinse socket connections. The Honda GX390 engine features a heavy-duty cast iron cylinder liner, an inclined cylinder and counterbalance shaft, and a heavy-duty splash-fed lubrication system. A low oil shutdown function helps protect the engine from damage during operation.
The 7.3-litre fuel tank provides an approximate runtime of 2.45 hours. The unit is rated to Protection Level IP21 and Insulation Class H. The wheel-mounted design supports mobility across site or workshop settings. Net weight is 85.50kg, gross weight 90.00kg, with packaged dimensions of 820(H) x 800(W) x 1200mm(D).
The SIP 25169 P200W-AC ES is assembled and tested by SIP in the UK. The Honda GX390 engine carries a 3-year Honda engine warranty. Welding leads and welding plugs are not included and must be purchased separately (product number 02690).
Additional Information:
The SIP P200W-AC ES HONDA GX Welder Generator has a powerful 389cc HONDA GX390 engine, which offers 200A weld power and 7KVA generator output for heavy-duty performance.
SIP Industrial are machinery specialists, with the SIP catalogue of products including welding, metalwork, air compressors and tools, power, cleaning, charging, heating, automotive, and more.
Please Note: This product is sold without Welding Plugs/Welding Leads. They need to be bought separately. (Product number: 02690)
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Electric Starting | Yes |
|---|---|
| Engine Type | HONDA GX390 389cc EURO V |
| Output Current | 60A - 200A AC |
| Output Supply | 230v / 115v |
| Duty Cycle | 180A @ 60% |
| Open Circuit Voltage | 45v (LO) / 60v (HI) |
| Electrode Diameter | Ø 1.6mm - 5mm |
| Welding Thickness | 1.5mm - 8mm |
| Max. Rated Output | 7.00kVA |
| Fuel Tank Capacity | 7.3ltr |
| Approx. Runtime | 2.45hrs |
| Protection Level | IP21 |
| Insulation Class | Class H |
| Net Weight | 85.50kg |
| Gross Weight | 90.00kg |
| Packaged Dimensions | 820(H) x 800(W) x 1200mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
14564 | SIP 14564 HONDA GP390 / GX340 / GX390 Air Filter | 1 Unit |
£49.00
£48.04
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25172 P200W-DC ES Honda GX Welder Generator
£2,906.26
£2,849.27
2% OFF
Free delivery in Channel Island
|
SIP 25017 HP200W-AC Honda Welder Generator
£2,075.89
£2,035.19
2% OFF
Free delivery in Channel Island
|
SIP 25020 HP200W-DC Honda Welder Generator
£2,594.87
£2,543.99
2% OFF
Free delivery in Channel Island
|
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 25172 | 25017 | 25020 |
| Type | Generator | Generator | Generator |
| Capacity (L) | 7.3 | 7.3 | 7.3 |
| Length (mm) | 1200 | 1200 | 1200 |
| Voltage (V) | 230 | 230 | 230 |
| Weight (kg) | 50 | 50 | 50 |
A. The unit delivers an AC output current range of 60A to 200A, with a duty cycle of 180A at 60%. Open circuit voltage is 45v in the LO setting and 60v in the HI setting, and Dinse socket connections are fitted as standard.
A. The SIP 25169 P200W-AC ES accepts electrode diameters from Ø1.6mm to 5mm and is suited to welding material thicknesses between 1.5mm and 8mm.
A. The generator supplies both 230v and 115v output, with a maximum rated output of 7.00kVA, making it suitable for powering tools and equipment on site as well as providing welding current.
A. The machine is powered by a Honda GX390 389cc OHV Euro V petrol engine with electric starting. The engine incorporates a heavy-duty cast iron cylinder liner, an inclined cylinder and counterbalance shaft, a heavy-duty splash-fed lubrication system, and a low oil shutdown function to help prevent engine damage.
A. The 7.3-litre fuel tank provides an approximate runtime of 2.45 hours under load.
A. The SIP 25169 P200W-AC ES is rated to Protection Level IP21 and Insulation Class H.
A. No — welding leads and welding plugs are not included and must be purchased separately. The dedicated accessory is listed under product number 02690.
A. The Honda GX390 engine fitted to the SIP 25169 P200W-AC ES is covered by a 3-year Honda engine warranty.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). A restocking fee of up to 15% of the order value may apply.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
