Product Number: 25167

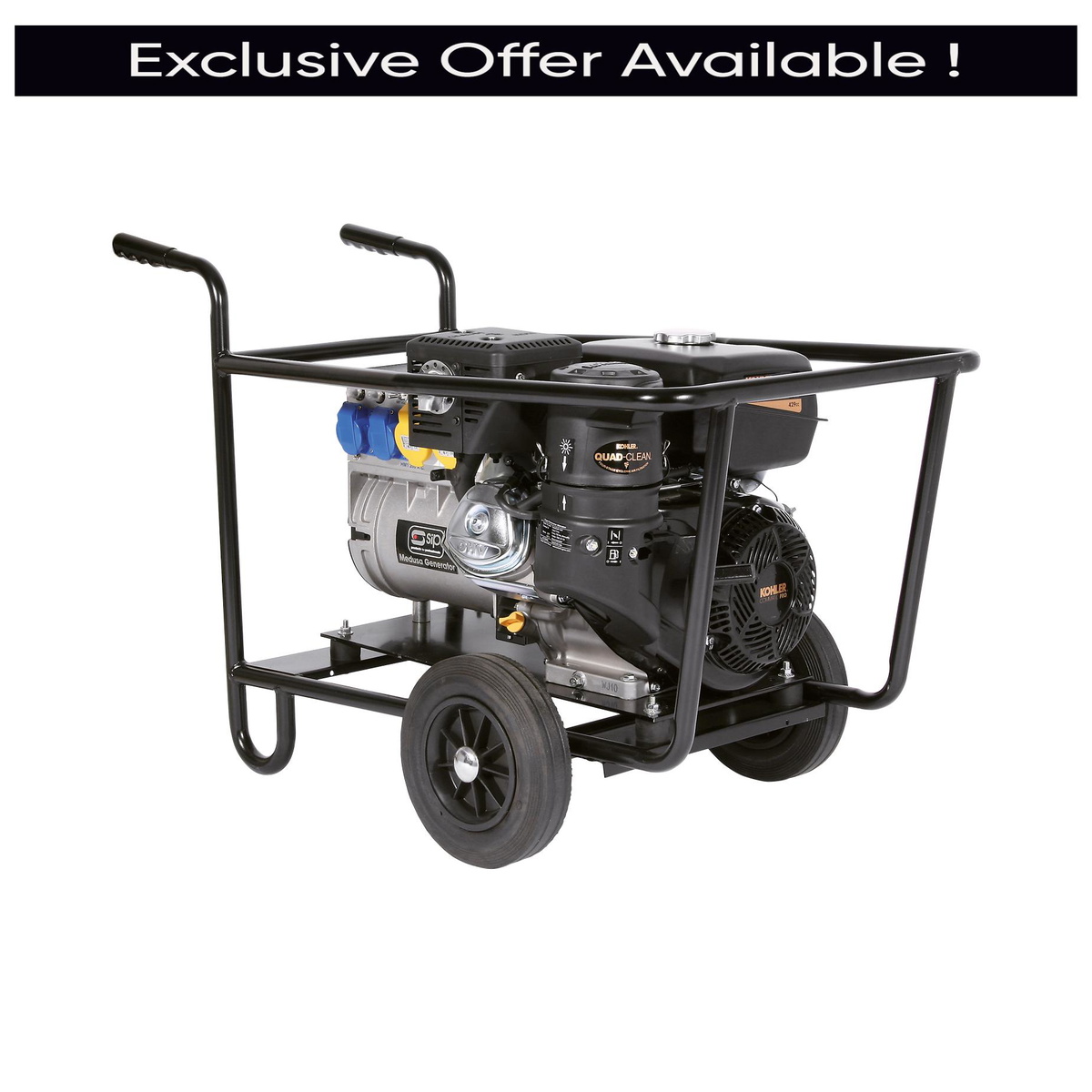

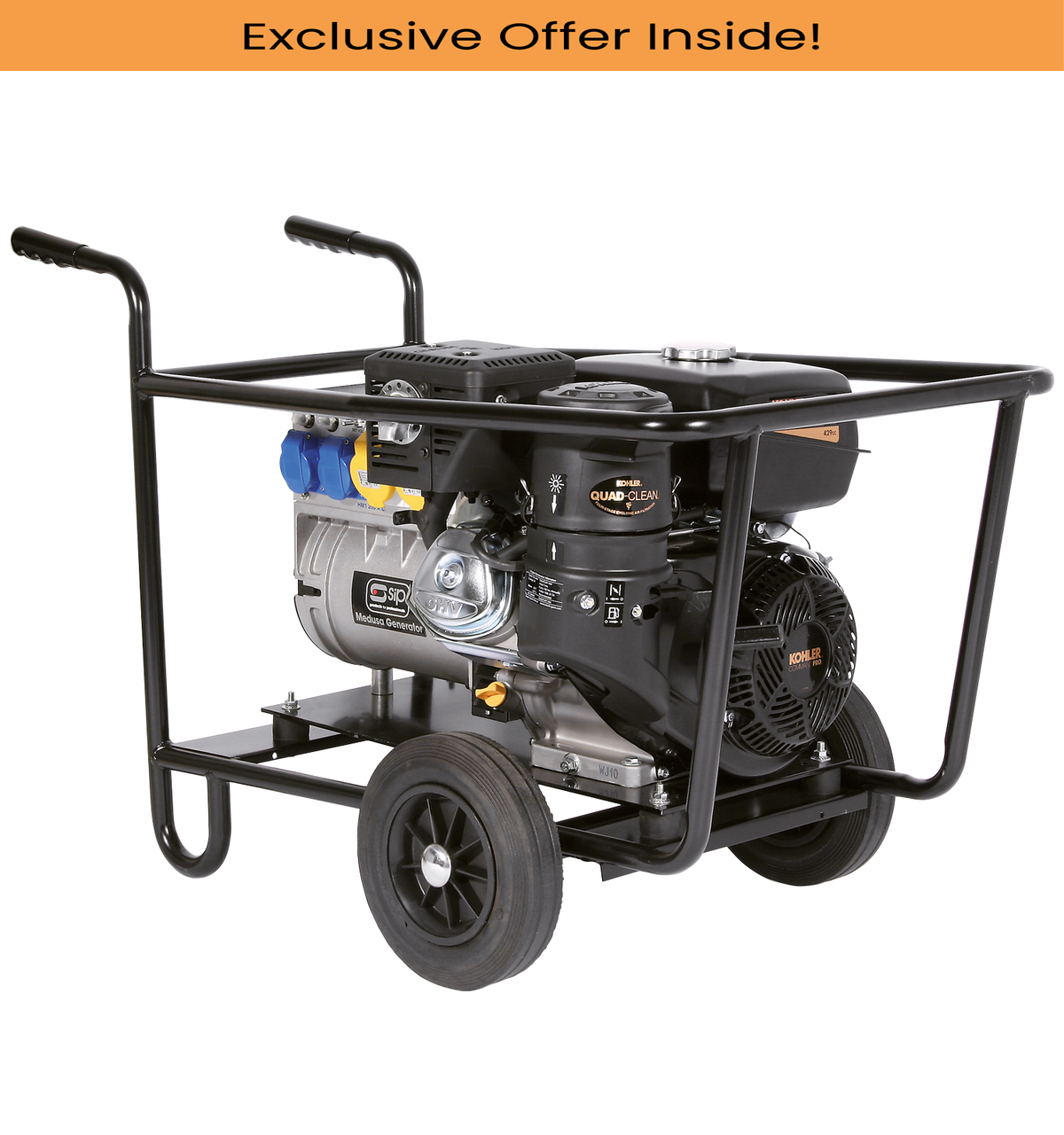

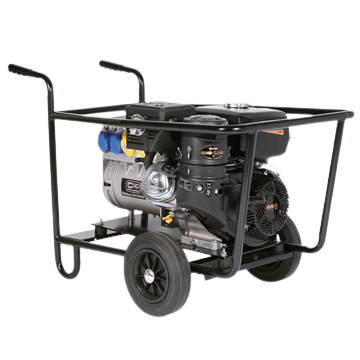

The SIP 25167 P200W-AC KOHLER® Welder Generator is a professional-grade petrol-powered welder generator designed for heavy-duty performance in demanding site and workshop environments. Driven by a 14HP KOHLER OHV EURO V 429cc petrol engine, it delivers both welding and generator supply from a single robust, wheel-mounted unit.
On the welding side, the P200W-AC produces an AC output current ranging from 60A to 200A, accommodating electrode diameters from Ø1.6mm to 5mm and welding thicknesses from 1.5mm to 8mm. A duty cycle of 180A at 60% ensures sustained performance across extended work sessions. Open circuit voltage is selectable between 45V (LO) and 60V (HI), and the unit is equipped with Dinse socket connections for reliable lead attachment. The welding accessories, including welding plugs and welding leads (product number 05100), must be purchased separately.
As a generator, the unit provides a maximum rated output of 7.00kVA with a dual 230V/115V supply, making it versatile across a range of site power requirements. The 7.3-litre fuel tank supports an approximate runtime of 2.8 hours. Engine durability is enhanced by a heavy-duty cast iron cylinder liner, an inclined cylinder and counterbalance shaft, and a heavy-duty splash-fed lubrication system. A low oil shutdown function helps prevent engine damage. The unit carries IP21 protection and Class H insulation. The engine benefits from a 3-year KOHLER warranty.
The SIP 25167 is assembled and tested by SIP in the UK. Net weight is 85.50kg; gross weight is 90.00kg. Packaged dimensions are 820(H) x 800(W) x 1200mm(D).
Additional Information:
The SIP P200W-AC KOHLER Welder Generator has a powerful 14hp KOHLER OHV engine, which offers 200A weld power and 7KVA generator output for heavy-duty performance.
SIP Industrial are machinery specialists, with the SIP catalogue of products including welding, metalwork, air compressors and tools, power, cleaning, charging, heating, automotive, and more.
Please Note: This product is sold without Welding Plugs/Welding Leads. They need to be bought separately. (Product number: 05100)
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Electric Starting | No |
|---|---|
| Engine Type | KOHLER 14HP 429cc EURO V |
| Output Current | 60A - 200A AC |
| Output Supply | 230v / 115v |
| Duty Cycle | 180A @ 60% |
| Open Circuit Voltage | 45v (LO) / 60v (HI) |
| Electrode Diameter | Ø 1.6mm - 5mm |
| Welding Thickness | 1.5mm - 8mm |
| Max. Rated Output | 7.00kVA |
| Fuel Tank Capacity | 7.3ltr |
| Approx. Runtime | 2.8hrs |
| Protection Level | IP21 |
| Insulation Class | Class H |
| Net Weight | 85.50kg |
| Gross Weight | 90.00kg |
| Packaged Dimensions | 820(H) x 800(W) x 1200mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
04592 | SIP 04592 13a/16a 230v Socket adaptor | 1 Unit |
£37.01
£36.28
|
Add |
|
04595 | SIP 04595 16a 230v Generator Plug | 1 Unit |
£12.02
£11.78
|
Add |
|
04482A | SIP 04482A KOHLER 9.5hp & 14hp Engine Service Kit | 1 Unit |
£1,000.00
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25172 P200W-DC ES Honda GX Welder Generator
£2,906.26
£2,849.27
2% OFF
Free delivery in Channel Island
|
SIP 25017 HP200W-AC Honda Welder Generator
£2,075.89
£2,035.19
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 25172 | 04340 | 25017 |
| Warranty | 24 | 24 | 24 |
| Fuel Tank Capacity | 7.3 | 4.1 | 7.3 |
| Run time | 2.45 | 3 | 2.45 |
| Supply Type | 230 / 110 | ||
| Engine Type | Honda GX | Kohler | Honda GX |
A. The SIP 25167 P200W-AC delivers an AC output current of 60A to 200A, with a duty cycle of 180A at 60%. Open circuit voltage is selectable between 45V (LO) and 60V (HI).
A. The P200W-AC accepts electrode diameters from Ø1.6mm to 5mm and is rated for welding material thicknesses from 1.5mm to 8mm.
A. It is powered by a KOHLER 14HP OHV 429cc EURO V petrol engine, which does not feature electric starting. The engine benefits from a heavy-duty cast iron cylinder liner, an inclined cylinder and counterbalance shaft, and a heavy-duty splash-fed lubrication system, with a low oil shutdown function to help prevent damage.
A. The unit delivers a maximum rated output of 7.00kVA with a dual 230V/115V generator supply, suitable for a range of site power applications.
A. The fuel tank holds 7.3 litres, providing an approximate runtime of 2.8 hours.
A. No. Welding plugs and welding leads are not included and must be purchased separately. The relevant product number for compatible leads is 05100.
A. The KOHLER engine fitted to the SIP 25167 is covered by a 3-year KOHLER engine warranty.
A. The unit carries an IP21 protection rating and Class H insulation classification.
