Product Number: 25020

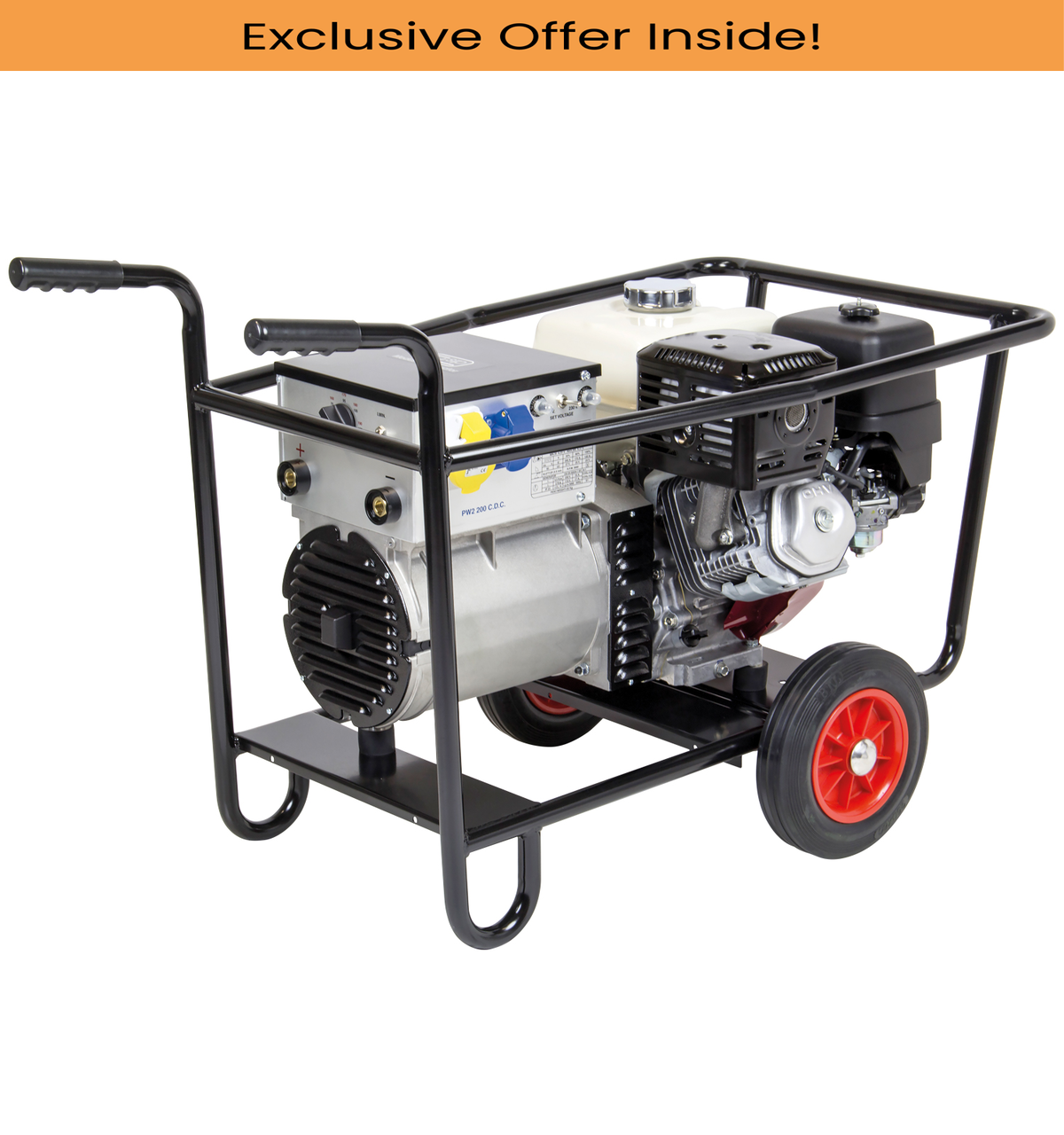

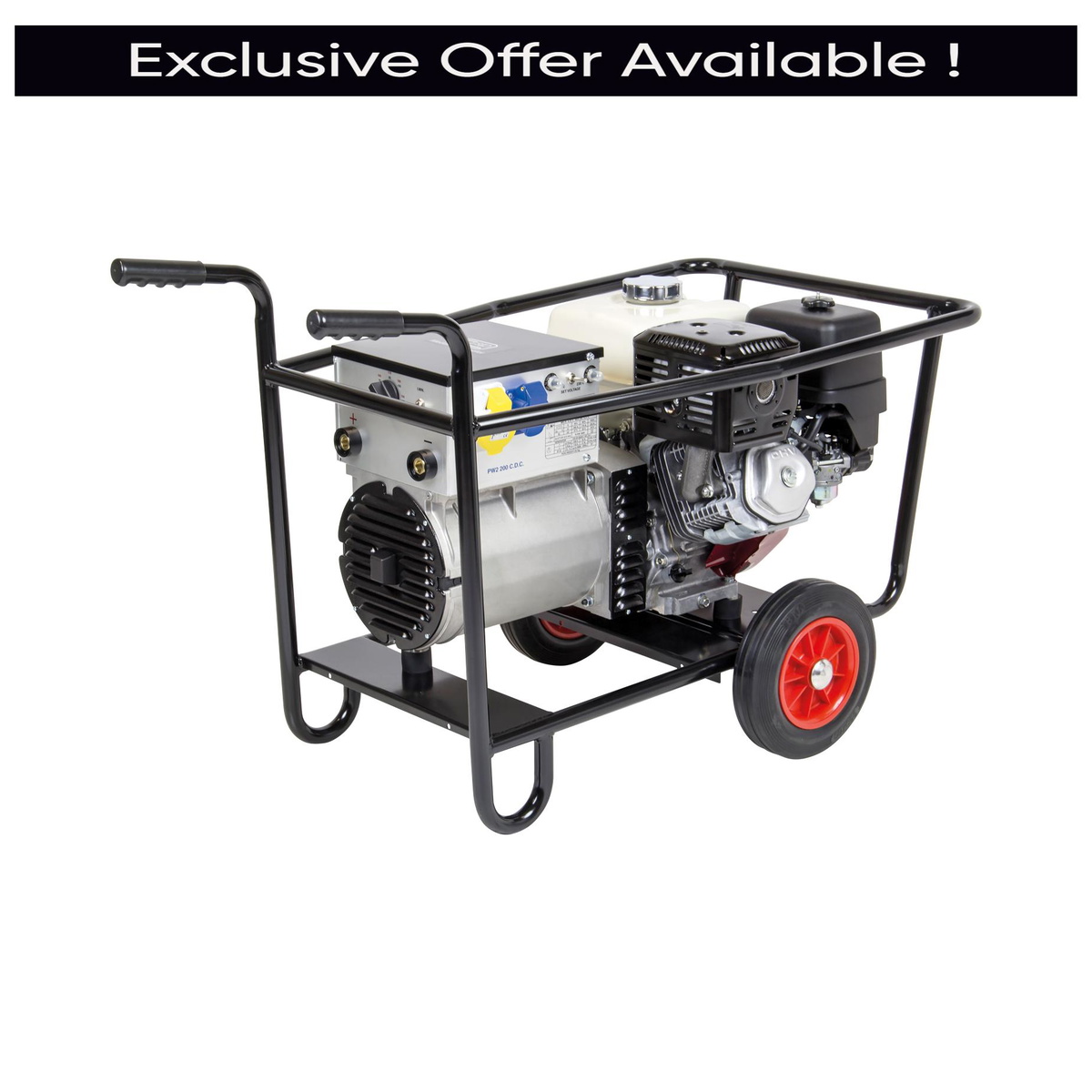

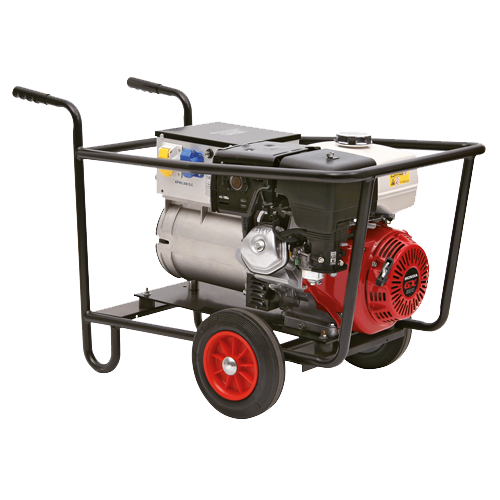

The SIP HP200W-DC (SKU 25020) is a professional petrol welder generator powered by a Honda GX390 389cc EURO V engine, delivering a maximum rated output of 4.00kVA alongside a 50A–200A DC arc welding output. Designed to provide mobile welding solutions for a variety of tasks, the machine also offers auxiliary 230V and 115V supply outputs for use as a standalone generator on site.
At the heart of the HP200W-DC is the Honda GX390 engine, engineered with an inclined cylinder and counterbalance shaft for smooth running. Hot spark ignition and splash-fed lubrication support reliable starts and sustained operation, while a low oil shutdown feature helps prevent engine damage. The unit delivers a welding duty cycle of 170A at 60% and maintains an open circuit voltage of 75V, supporting electrode diameters from Ø1.6mm to 5mm and an approximate welding thickness range of 1.5mm to 8mm.
The 7.3-litre fuel tank provides an approximate runtime of 2.45 hours, and the design is noted for excellent fuel efficiency and reduced oil consumption for longer service life. The machine carries a protection rating of IP21 and Class H insulation, making it suited to demanding workshop and field environments. The wheel-mounted, robust construction supports mobility across site conditions. Net weight is 85.50kg, with packaged dimensions of 820(H) × 800(W) × 1200mm(D).
Note that welding plugs and welding leads are not included and must be purchased separately (product number 05110). Accessories for this welder also require separate purchase.
The HP200W-DC is assembled and tested by SIP in the UK. A 3-year Honda engine warranty applies. No electric starting is fitted; the unit is manually started.
Additional Information:
The SIP HP200W-DC is a powerful petrol welder generator designed to provide mobile welding solutions for various tasks, as well as offer auxiliary outputs for use as a standalone generator.
SIP are machinery specialists, with our catalogue featuring welding, metalwork, air compressors and tools, battery chargers, lifting, heating, power, woodworking, and cleaning equipment.
Please Note: This product is sold without Welding Plugs/Welding Leads. They need to be bought separately. (Product number: 05110)
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Electric Starting | No |
|---|---|
| Engine Type | HONDA GX390 389cc EURO V |
| Output Current | 50A - 200A DC |
| Output Supply | 230v / 115v |
| Duty Cycle | 170A @ 60% |
| Open Circuit Voltage | 75v |
| Electrode Diameter | Ø 1.6mm - 5mm |
| Welding Thickness | 1.5mm - 8mm |
| Max. Rated Output | 4.00kVA |
| Fuel Tank Capacity | 7.3ltr |
| Approx. Runtime | 2.45hrs |
| Protection Level | IP21 |
| Insulation Class | Class H |
| Net Weight | 85.50kg |
| Gross Weight | 90.00kg |
| Packaged Dimensions | 820(H) x 800(W) x 1200mm(D) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
04592 | SIP 04592 13a/16a 230v Socket adaptor | 1 Unit |
£37.01
£36.28
|
Add |
|
14564 | SIP 14564 HONDA GP390 / GX340 / GX390 Air Filter | 1 Unit |
£49.00
£48.04
|
Add |
|
04595 | SIP 04595 16a 230v Generator Plug | 1 Unit |
£12.02
£11.78
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 25017 HP200W-AC Honda Welder Generator
£2,075.89
£2,035.19
2% OFF
Free delivery in Channel Island
|
SIP 25169 P200W-AC ES Honda GX Welder Generator
£2,491.07
£2,442.23
2% OFF
Free delivery in Channel Island
|
SIP 25172 P200W-DC ES Honda GX Welder Generator
£2,906.26
£2,849.27
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 25017 | 25169 | 25172 | 04462 |
| Warranty | 24 | 24 | 24 | 24 |
| Fuel Tank Capacity | 7.3 | 7.3 | 7.3 | 3.6 |
| Run time | 2.45 | 2.45 | 2.45 | 2.6 |
| Supply Type | 230 / 110 | |||
| Engine Type | Honda GX | Honda GX | Honda GX | Honda GX |
A. The HP200W-DC delivers a DC arc welding output current of 50A to 200A, with a duty cycle rated at 170A at 60%.
A. The machine supports electrode diameters from Ø1.6mm to 5mm and an approximate welding thickness range of 1.5mm to 8mm.
A. It is powered by a Honda GX390 389cc EURO V petrol engine, featuring an inclined cylinder, counterbalance shaft, hot spark ignition, and splash-fed lubrication. A low oil shutdown is included to help prevent engine damage.
A. Yes. In addition to its DC welding output, the machine provides auxiliary supply outputs of 230V and 115V, allowing it to be used as a standalone generator on site.
A. The 7.3-litre fuel tank provides an approximate runtime of 2.45 hours.
A. No. Welding plugs and welding leads are not included and must be purchased separately (product number 05110). Accessories for this welder also require separate purchase.
A. A 3-year Honda engine warranty applies to the HP200W-DC.
A. The machine carries a protection rating of IP21 and is built to Class H insulation standard.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
