Product Number: 28494
Variations

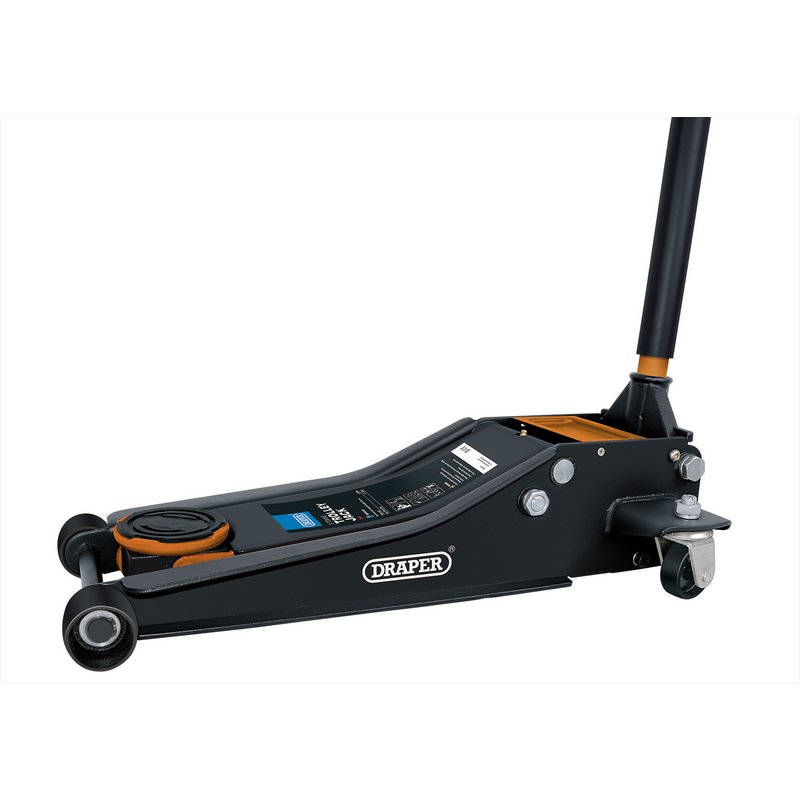

Lifting heavy vehicles safely demands a jack that combines low-entry clearance with sufficient reach and reliable overload protection. The Draper 28494 3 Tonne low-profile trolley jack addresses this with a lifting range of 75 to 505mm, making it suitable for use beneath vehicles with limited ground clearance as well as those requiring greater lift height. The twin-piston quick-lift mechanism reaches maximum height in as few as eight pumps, reducing the effort and time required to raise a vehicle. A twin spring return system ensures the jack lowers in a controlled and safe manner when not under load, while a twin safety valve prevents overloading beyond the 3 Tonne rated capacity. The jack is manufactured to EN 1494 specification. An integrated rubber saddle pad with a 110mm diameter protects the underside of the vehicle during operation. The EVA foam handle cover guards against incidental panel damage, and the knurled handgrip at the end of the 1,145mm handle provides a secure, confident hold. Hardwearing nylon wheels with rear swivelling castors deliver quiet, smooth movement across workshop floors without causing surface damage. Key dimensions include a chassis length of 738mm and a total weight of 35kg. The jack is supplied in orange.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 3 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 3 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 738mm |
| Weight | 35kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28494ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper 28494 has a lifting range of 75mm minimum height to 505mm maximum height, making it suitable for low-clearance vehicles as well as applications requiring a greater lift.
A. The Draper 28494 has a rated capacity of 3 Tonne.
A. The Draper 28494 is manufactured to EN 1494 specification.
A. The twin-piston quick-lift mechanism is designed to reach maximum height in as few as eight pumps, reducing the effort required to raise a vehicle.
A. The jack is fitted with a twin safety valve to prevent overloading and a twin spring return system to ensure it lowers safely when not under load.
A. Yes. An integrated rubber saddle pad with a 110mm diameter protects the underside of the vehicle during use. The EVA foam handle cover helps prevent panel damage, and the hardwearing nylon wheels with rear swivelling castors are designed not to mark or damage garage floor surfaces.
