Product Number: 28485

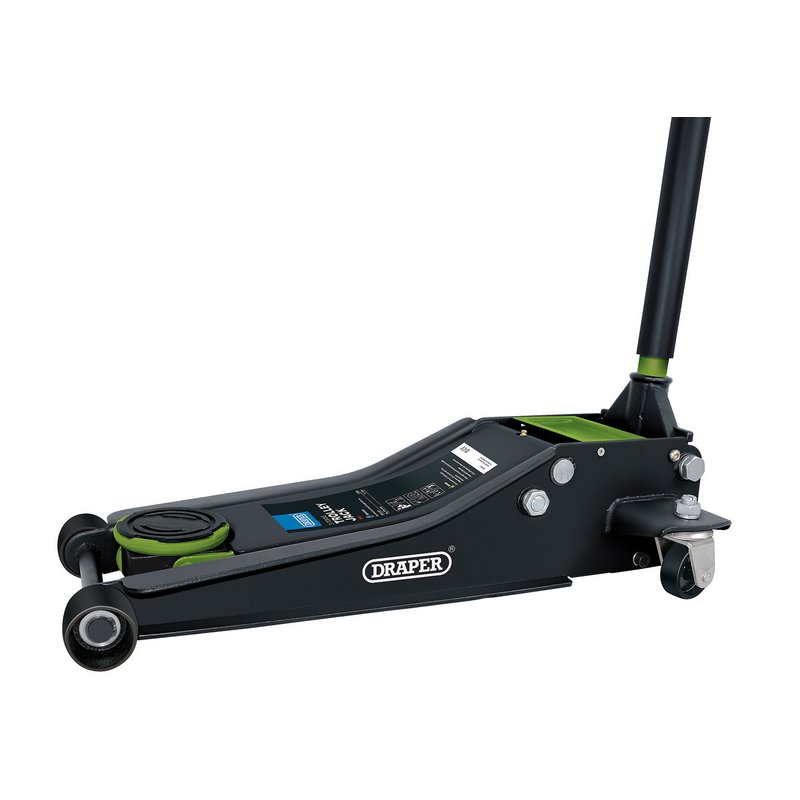

Workshop bays and home garages alike demand a trolley jack that combines a low entry height with reliable, controlled lifting — the Draper 28485 3 Tonne Trolley Jack is built to meet that need. Its low-profile design allows operation from a minimum height of just 75mm, rising to a maximum of 505mm, making it suitable for a wide range of vehicles including those with reduced ground clearance. At the heart of the jack is a twin-piston quick-lift system that reaches maximum height in as few as eight pumps, reducing the effort required during repeated use. A twin spring return system ensures the jack lowers safely when not under load, whilst a twin safety valve prevents overloading beyond the 3 Tonne rated capacity. Both features contribute directly to safe operation in a working environment. To protect both the vehicle and the workshop floor, the jack is fitted with an integrated rubber saddle pad — 110mm in diameter — which cushions contact with the underside of the vehicle. An EVA foam handle cover provides protection against panel damage, and the knurled handgrip on the end of the 1,145mm lifting arm delivers a secure, confident hold. Hardwearing nylon wheels with rear swivelling castors ensure quiet, smooth movement across garage floors without causing surface damage. The jack has a chassis length of 738mm and weighs 35kg. It is manufactured to EN 1494 specification.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 3 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 3 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 738mm |
| Weight | 35kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28485ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper 28485 has a lifting range of 75mm to 505mm, making it suitable for low-profile vehicles as well as those with more conventional ground clearance.
A. The Draper 28485 is rated to a capacity of 3 Tonne.
A. Most passenger cars fall well within a 3 Tonne capacity. However, you should always check the axle weight of your specific vehicle before selecting a jack, and ensure the jack is rated to handle that load safely.
A. The twin-piston quick-lift system enables the jack to reach maximum height in as few as eight pumps, reducing the effort required during repeated lifting tasks.
A. The jack is fitted with a twin safety valve to prevent overloading and a twin spring return system that ensures the jack lowers safely when not under load. It is also manufactured to EN 1494 specification.
A. An integrated rubber saddle pad (110mm diameter) cushions contact with the underside of the vehicle. Hardwearing nylon wheels with rear swivelling castors provide quiet, smooth movement and help prevent damage to garage floor surfaces. An EVA foam handle cover also guards against panel damage.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
