Product Number: 28465

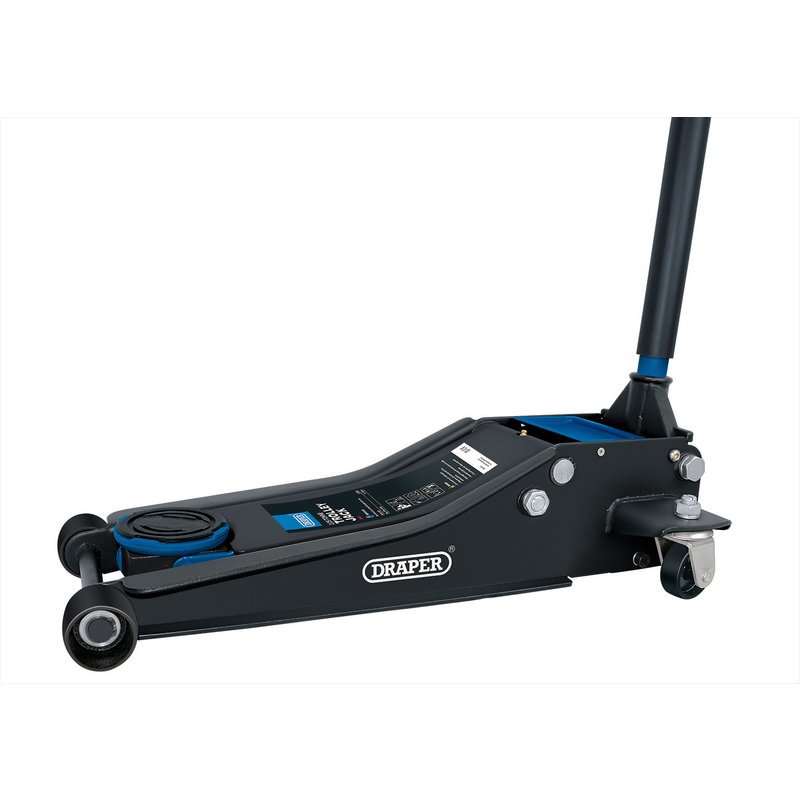

Workshop professionals and serious home mechanics frequently encounter vehicles with minimal ground clearance, where a standard trolley jack simply cannot engage the lifting point. The Draper 28465 low-profile trolley jack addresses this directly with a minimum saddle height of 75mm and a maximum lift of 505mm, providing a working range suited to a wide variety of passenger cars and light commercial vehicles. At the heart of this jack is a twin-piston quick-lift facility that reaches maximum height in just eight pumps, reducing effort and time under the vehicle. Once the lift is complete, the twin spring return system lowers the jack safely and in a controlled manner when not under load. A twin safety valve guards against overloading, ensuring the rated 2.25 tonne capacity is not exceeded. Component quality is evident throughout. An integrated rubber saddle pad with a 110mm diameter protects the vehicle's sill or jacking point from contact damage, while an EVA foam handle cover prevents accidental panel scuffs during positioning. The knurled handgrip on the end of the 1145mm handle provides a secure, positive hold. Hardwearing nylon wheels with rear swivelling castors deliver quiet, smooth movement across workshop floors without causing surface damage. Key specifications: capacity 2.25 tonne, lifting range 75–505mm, saddle diameter 110mm, handle length 1145mm, chassis length 725mm, weight 28.6kg. Manufactured to EN 1494 specification.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 2.25 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 2.25 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 725mm |
| Weight | 28.6kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28465ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper 28465 has a minimum saddle height of 75mm and a maximum lift height of 505mm, providing a working range suitable for low-profile vehicles and standard passenger cars.
A. The Draper 28465 is rated to a maximum capacity of 2.25 tonne. A twin safety valve is fitted to prevent the jack from being overloaded beyond this rating.
A. The twin-piston quick-lift facility is designed to reach maximum height in eight pumps, reducing the time and effort required to raise a vehicle to working height.
A. As a general guide, you should select a jack with a capacity exceeding the gross weight of the heaviest end of your vehicle. Always consult your vehicle handbook for the manufacturer's recommended jacking points and verify the axle loads before selecting lifting equipment.
A. Yes. This trolley jack is manufactured to EN 1494 specification, the European standard for mobile or movable jacks and associated lifting equipment.
A. An integrated rubber saddle pad with a 110mm diameter is fitted to the saddle to prevent damage to the underside of the vehicle. An EVA foam handle cover is also included to reduce the risk of panel damage during manoeuvring.
