Product Number: 28475
Variations

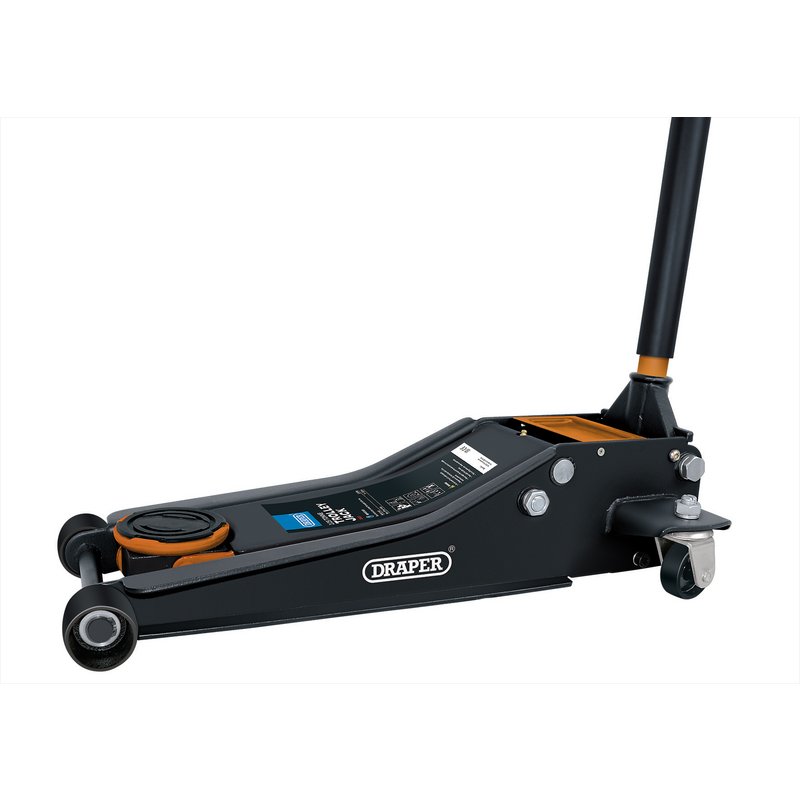

Lifting heavy vehicles safely requires equipment that combines a low entry profile with a reliable, efficient pumping mechanism. The Draper 28475 Trolley Jack addresses this with a lifting range of 75–505mm and a 2.25-tonne capacity, making it well suited to passenger cars and light commercial vehicles where underfloor clearance is limited. At the heart of its operation is a twin-piston quick-lift facility that reaches maximum height in eight pumps, reducing the effort and time spent at floor level. A twin spring return system controls the lowering cycle safely when the jack is not under load, while a twin safety valve prevents the jack from being operated beyond its rated capacity. Together these mechanisms support safe, controlled use in line with the EN 1494 specification to which this jack is manufactured. Component design throughout prioritises both vehicle and workshop protection. An integrated rubber saddle pad with a 110mm diameter cushions contact with the vehicle's underside, and an EVA foam handle cover guards against accidental panel damage during manoeuvring. The knurled handgrip at the end of the lifting arm provides a secure, confident hold during use. Hardwearing nylon wheels with rear swivelling castors deliver quiet, smooth movement across garage floors without marking or damaging the surface. Key dimensions: handle length 1,145mm, chassis length 725mm, weight 28.6kg. Supplied in orange as a single unit.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 2.25 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 2.25 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 725mm |
| Weight | 28.6kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28475ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper 28475 has a rated lifting capacity of 2.25 tonne.
A. The jack lifts from a minimum height of 75mm to a maximum height of 505mm, making it suitable for low-profile vehicles.
A. The jack features a twin-piston quick-lift facility that reaches maximum height in eight pumps, reducing the effort required to raise a vehicle.
A. The jack is fitted with a twin safety valve to prevent overloading and a twin spring return system that ensures controlled, safe lowering when the jack is not under load.
A. The Draper 28475 is manufactured to EN 1494 specification.
A. An integrated rubber saddle pad with a 110mm diameter protects the vehicle's underside, an EVA foam handle cover prevents accidental panel damage, and hardwearing nylon wheels with rear swivelling castors move quietly without marking garage floors.
