Product Number: 28481

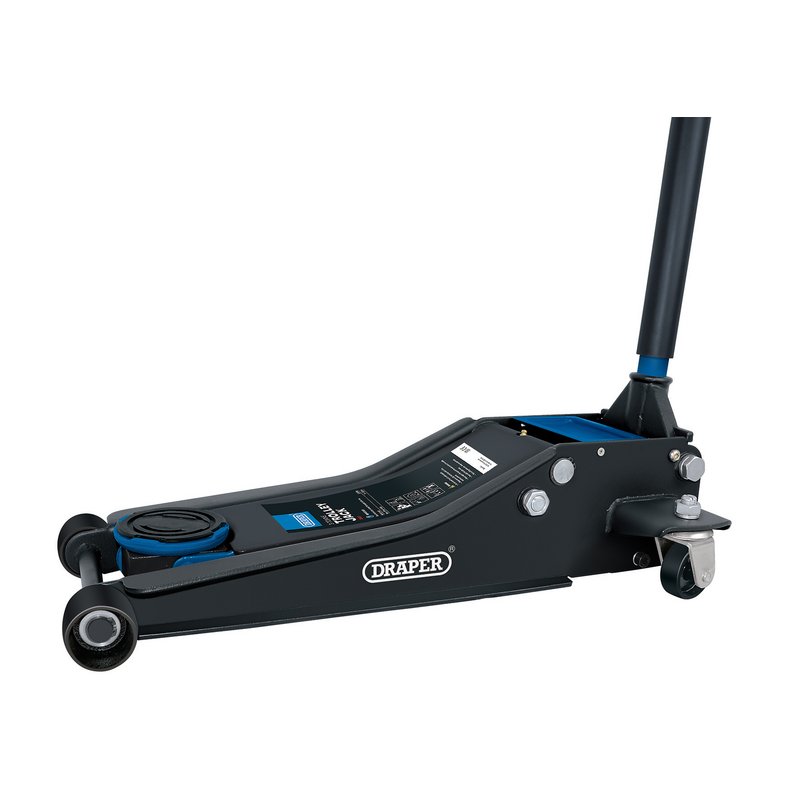

Gaining access to a vehicle's underside demands a jack that combines a low entry point with sufficient travel to raise the chassis safely — the Draper 28481 Trolley Jack delivers exactly that with a lifting range of 75 to 505 mm and a rated capacity of 3 Tonne. The twin-piston quick lift facility reaches maximum height in as few as eight pumps, reducing the time spent beneath the vehicle and improving workshop efficiency. Safety is addressed at two levels. A twin safety valve prevents the jack from overloading during use, while the twin spring return system ensures the load lowers in a controlled manner when the jack is not under pressure. The integrated rubber saddle pad — 110 mm in diameter — sits directly against the vehicle's jacking point and protects the underside from damage throughout the lift. Attention to secondary damage is evident throughout the design. The EVA foam handle cover guards against accidental panel contact, and the knurled handgrip on the end of the lifting arm provides a secure hold during manoeuvring. Hardwearing nylon wheels with rear swivelling castors enable quiet, smooth movement across the workshop floor without marking or scratching the surface. Key dimensions: handle length 1,145 mm; chassis length 738 mm; weight 35 kg. The jack is manufactured to EN 1494 specification, the European standard governing the performance and safety of mobile vehicle lifts.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 3 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 3 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 738mm |
| Weight | 35kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28481ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey 1020LEBBAGCOMBO 2T Low Entry Trolley Jack & Accessories Combo - Blue
£162.84
£159.58
2% OFF
Free delivery in UK Mainland
|
Sealey 2001LEBL Trolley Jack 2.25 Tonne Low Entry Rocket Lift Blue
£161.54
£158.31
2% OFF
Free delivery in UK Mainland
|
Draper 23817 Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1020LEB | 1020LEBBAGCOMBO | 2001LEBL | 23817 | 27635 | MCL-20_BatteryTrolleyJack |
| Warranty | 12 | 12 | ||||
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | |
| Capacity | 2 Tonne | 2tonne | 2.25 Tonne | |||
| Brand | Sealey | Sealey | Sealey | |||
| Length (mm) | 563 | 563 | 734 | |||
| Model No | 1020LEB | 1020LEBBAGCOMBO | 2001LEBL | |||
| Weight (kg) | 12 | 31 | ||||
| Show More | ||||||
A. The Draper 28481 has a lifting range of 75 mm to 505 mm, making it suitable for low-profile vehicles as well as those with a higher ride height.
A. The jack has a rated capacity of 3 Tonne.
A. The twin-piston quick lift facility is designed to reach maximum height in as few as eight pumps, enabling efficient use in a workshop environment.
A. The jack is fitted with a twin safety valve to prevent overloading and a twin spring return system that ensures the load lowers safely when the jack is not under pressure.
A. An integrated 110 mm rubber saddle pad protects the vehicle's underside at the jacking point. The hardwearing nylon wheels with rear swivelling castors are designed to prevent damage to garage floors, and the EVA foam handle cover helps avoid accidental panel contact.
A. The Draper 28481 is manufactured to EN 1494 specification, the European standard for mobile vehicle lifts and their accessories.
