Product Number: 28466

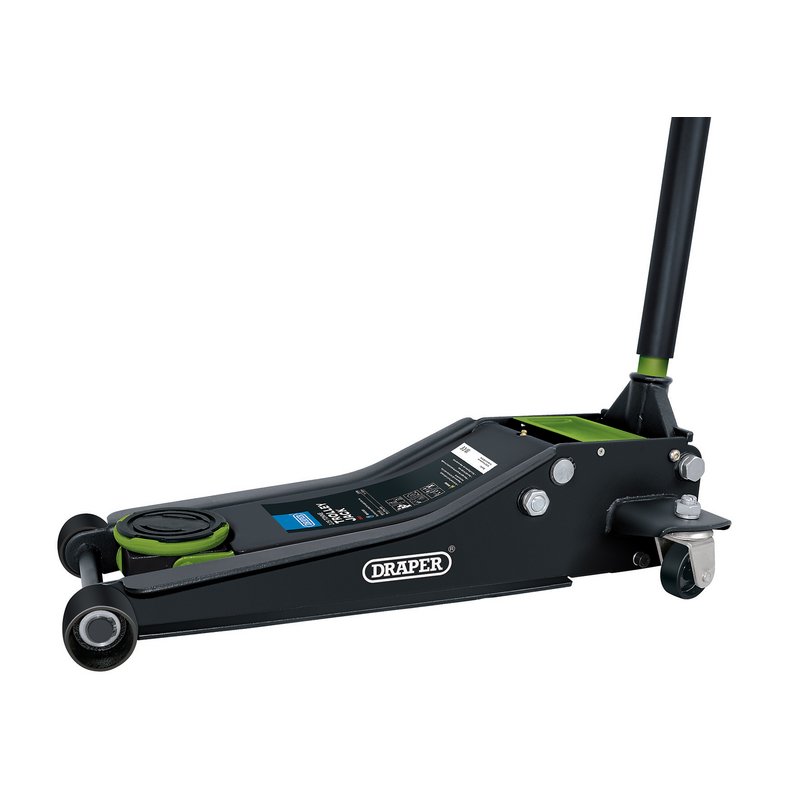

Lifting a vehicle safely requires a jack that combines a low entry point with sufficient travel, and the Draper 28466 trolley jack answers that need with a lifting range of 75–505mm and a rated capacity of 2.25 tonne. The low-profile chassis allows the saddle to engage beneath vehicles where ground clearance is limited, making it suitable for a wide range of passenger cars and light commercial vehicles in a professional workshop or home garage setting. At the heart of the design is a twin-piston quick lift facility that reaches maximum height in as few as eight pumps, reducing cycle time between lifts. A twin spring return system controls the lowering sequence, ensuring the jack descends safely when it is not under load. A twin safety valve provides a secondary layer of overload protection, preventing the jack from being operated beyond its rated capacity. The integrated rubber saddle pad, measuring 110mm in diameter, protects the underside of the vehicle during lifting. An EVA foam handle cover guards against accidental panel contact, while the knurled handgrip at the end of the 1,145mm handle provides a firm, secure hold during operation. Hardwearing nylon wheels with rear swivelling castors deliver quiet, smooth movement across workshop floors without causing surface damage. Key dimensions include a chassis length of 725mm and a total weight of 28.6kg. The jack is manufactured to EN 1494 specification, the European standard governing mobile vehicle lifts.
This low profile trolley jack is capable of lifting from 75-505mm and it has a capacity of 2.25 Tonne. It has a twin-piston quick lift facility, with eight pumps to enable it to reach maximum height efficiently. The twin spring return system ensures the jack lowers safely when not under load. It is fitted with a twin safety valve to prevent the jack from overloading. There is an integrated rubber saddle pad to prevent damage to the underside of the vehicle when in operation. There is also an EVA foam handle cover to prevent panel damage. The knurled handgrip on the end of the lifting arm enables a more secure hold when used. Fitted with hardwearing nylon wheels with rear swiveling castors, for quiet and smooth operation. These wheels also prevent damage to garage floors.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 2.25 Tonne |
|---|---|
| Min. height | 75mm |
| Max. height | 505mm |
| Saddle diameter | 110mm |
| Handle length | 1,145mm |
| Chassis length | 725mm |
| Weight | 28.6kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
28466ins.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03633 Quick-Lift Trolley Jack, Weight Capacity - 3 Tonne
£171.24
£167.88
2% OFF
Free delivery in UK Mainland
|
SIP 03642 Long Floor Jack, Weight Capacity - 5 Tonne
£651.78
£639.00
2% OFF
Free delivery in UK Mainland
|
SIP 03647 Long Floor Jack,Weight Capacity - 10 Tonne
£901.81
£884.13
2% OFF
Free delivery in Channel Island
|
SIP 09804 WINNTEC Aluminium Racing Jack, Weight Capacity -1.35 Tonne
£204.78
£200.76
2% OFF
Free delivery in UK Mainland
|
SIP 09886 WINNTEC Long Chassis Jack, Weight Capacity -10 Tonne
£1,050.18
£1,029.59
2% OFF
Free delivery in Channel Island
|
Sealey RJAS2500 Trolley Jack 2.5T Aluminium Rocket Lift
£191.56
£187.80
2% OFF
Free delivery in UK Mainland
|
Sealey RJAS1500 Trolley Jack 1.5T Aluminium Rocket Lift
£171.34
£167.91
2% OFF
Free delivery in UK Mainland
|
Sealey 3010CX 3 Tonne Trolley Jack with Axle Stands (Pair) 3 Tonne per Stand
£195.40
£191.49
2% OFF
Free delivery in UK Mainland
|
Draper 31242 Aluminium Low Profile Trolley Jack, 1.25 Tonne
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 31481 Professional Low Profile Garage Trolley Jack, 2 Tonne
£165.07
£161.83
2% OFF
Free delivery in UK Mainland
|
Draper 31479 Aluminium and Steel Trolley Jack, 2.5 Tonne
£189.83
£186.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03633 | 03642 | 03647 | 09804 | 09886 | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | 31242 | 31481 | 31479 | 03461 |
| Warranty | 24 | 24 | 24 | 36 | 36 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack |
| Capacity | 2 Tonne | 2 Tonne | 2.5 Tonne | 1.5 Tonne | 3 Tonne | Jack - 3 Tonne, Axle Stands - 6 Tonne pe | 1.25 Tonne (1,250kg) | 2 Tonne | 2.5 Tonne (2,500kg) | 2 Tonne (2,000kg) | |||||
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | |||||||||
| Length (mm) | 80 | 150 | 160 | 80 | 160 | 450 | 563 | 659 | 553 | 659 | 130 | 620 | 72 | 726 | 270 |
| Model No | 1050CX | 1020LE | RJAS2500 | RJAS1500 | 3000CXD | 3010CX | |||||||||
| Weight (kg) | 8.6 | 12 | 25.9 | 14.7 | 35 | 34.5 | 250 | 32 | 500 | 000 | |||||
| Show More | |||||||||||||||
A. The Draper 28466 has a rated capacity of 2.25 tonne and a lifting range of 75mm to 505mm, making it suitable for low-profile vehicles as well as standard passenger cars and light commercial vehicles.
A. The twin-piston quick lift facility is designed to reach maximum height in as few as eight pumps, reducing lifting time in a workshop environment.
A. The jack is fitted with a twin safety valve to prevent overloading beyond the rated 2.25 tonne capacity, and a twin spring return system that controls safe lowering when the jack is not under load.
A. An integrated rubber saddle pad with a 110mm diameter protects the underside of the vehicle during lifting. Hardwearing nylon wheels with rear swivelling castors allow smooth, quiet movement without damaging garage or workshop floor surfaces. An EVA foam handle cover also helps prevent accidental panel damage.
A. The jack is manufactured to EN 1494 specification, the European standard governing the design and performance of mobile vehicle lifts.
A. The saddle diameter is 110mm, the handle length is 1,145mm, the chassis length is 725mm, and the overall weight of the jack is 28.6kg.
