Product Number: SM2503A

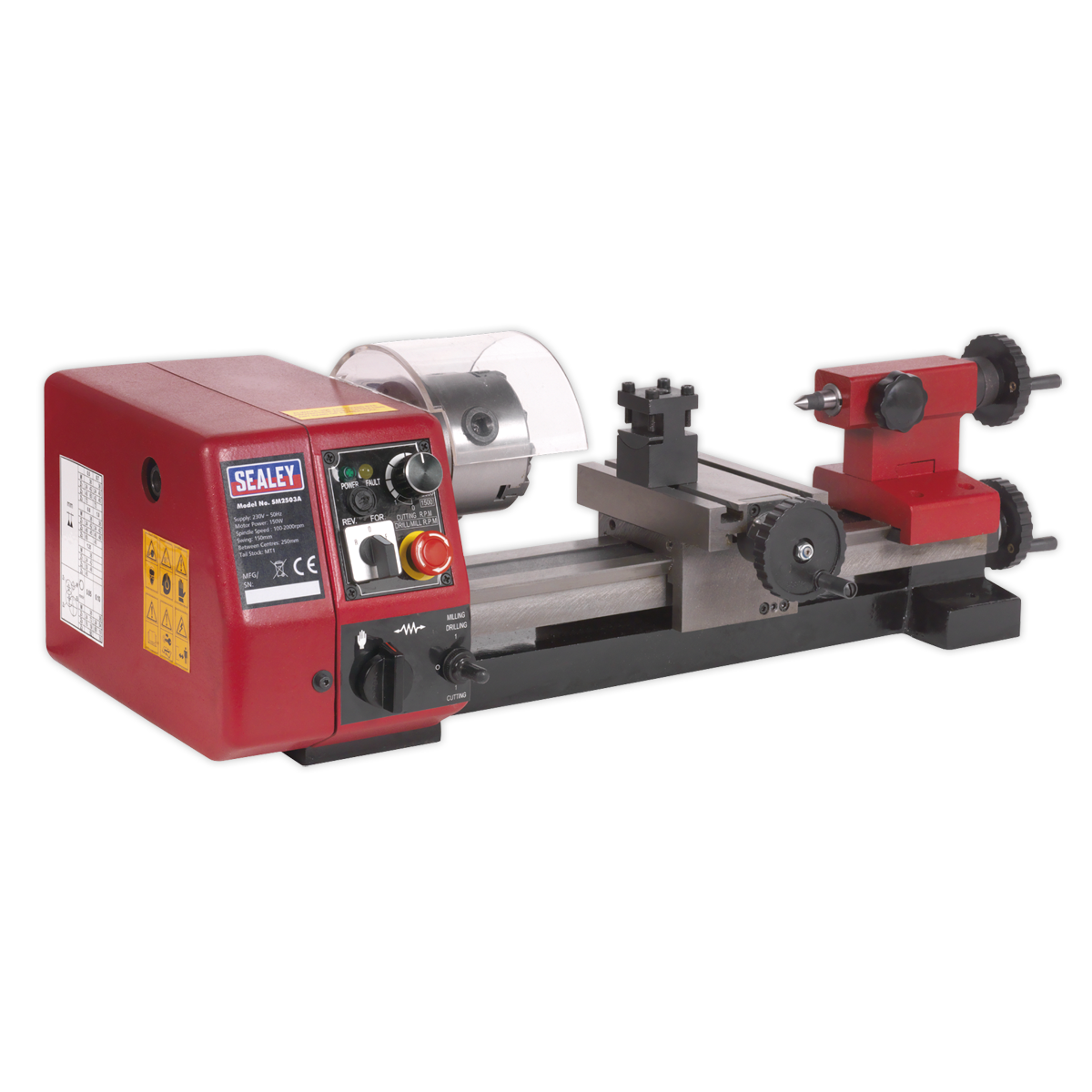

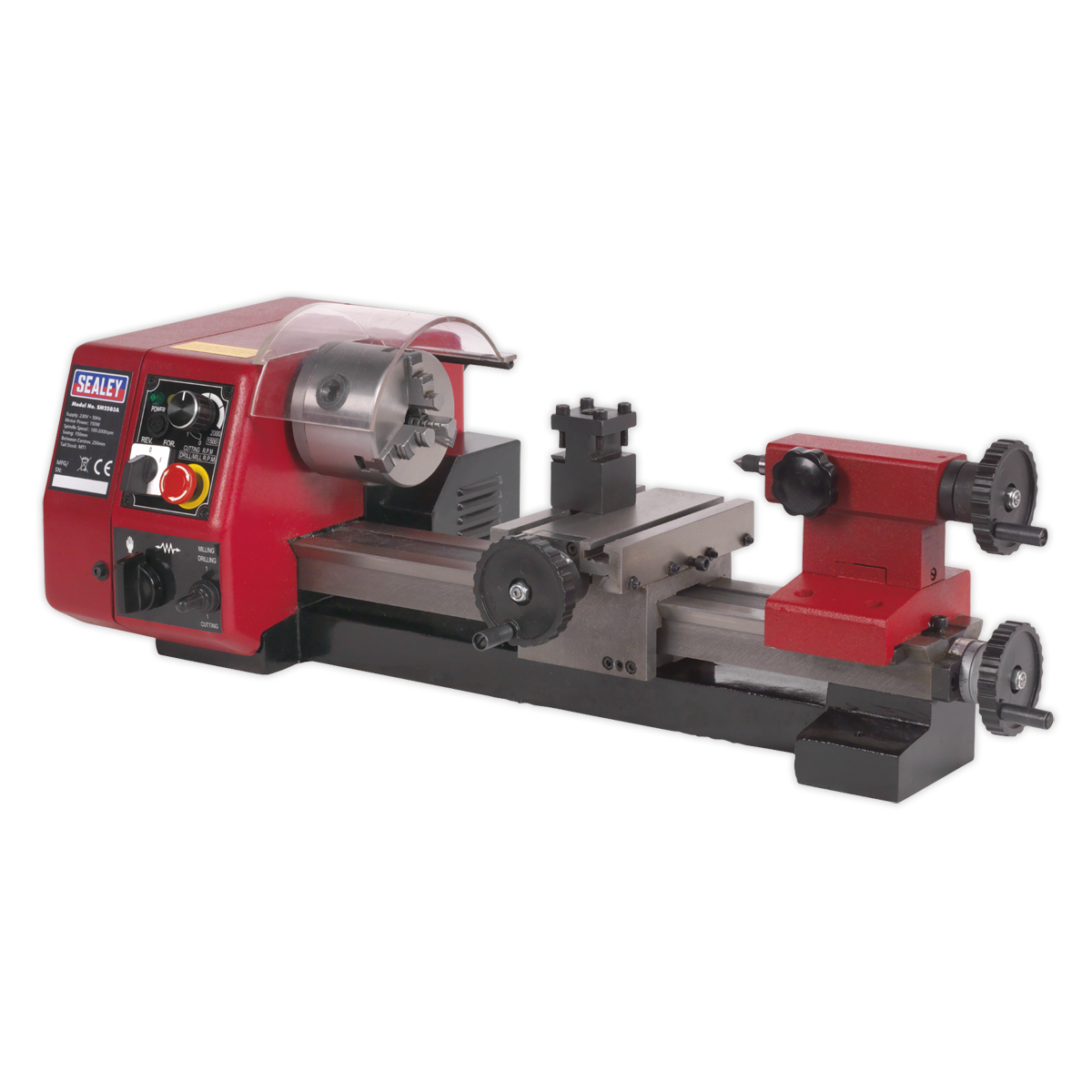

Finding a capable metalworking lathe that fits a smaller workshop without sacrificing genuine machining performance is no easy task. The Sealey SM2503A is a bench-mounting miniature lathe built predominantly from cast iron and steel, compact enough to sit in the corner of a workshop yet light enough at 26.2kg to be truly portable when required. Powered by a 150W high-torque motor running on 230V, it offers variable spindle speeds from 100 to 2000rpm, giving you control across a range of turning tasks. The capacities are 150mm swing over bed and 250mm between centres, with a cross slide travel of 50mm. The spindle features an MT2 taper and the tailstock an MT1 taper. Five metric thread pitches are available (0.5-1.25mm), and the lathe features both manual and powered lead screw feed as well as overload protection for added reliability. Supplied as standard with an 80mm 3-jaw self-centring chuck, tailstock centre, and service tools. An extensive range of accessories is available separately, and the unit can be upgraded with a mill/drill head by ordering model SM2503B.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM2503A |
|---|---|
| Brand | Sealey |
| Nett Weight | 26.2kg |
| Swing Over Bed | 150mm |
| Distance Between Centres | 250mm |
| Spindle Hole Taper | MT2 |
| Cross Slide Travel | 50mm |
| Tailstock Taper | MT1 |
| Spindle Speed (Variable) | 100-2000rpm |
| Range of Metric Threads | 5 Pitches (0.5-1.25mm) |
| Motor Power | 150W - 230V |
| Weight | 26.2kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SM2503B | Sealey SM2503B Drill Head for Mini Lathe SM2503A 150W | 1 Unit |
£496.11
£486.38
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 60988 Variable Speed Mini Wood Lathe, 250W
£215.03
£210.81
2% OFF
Free delivery in UK Mainland
|
Draper 33893 Variable Speed Metal Work Lathe, 250W
£905.91
£888.15
2% OFF
Free delivery in UK Mainland
|
Sealey SM2503B Drill Head for Mini Lathe SM2503A 150W
£496.11
£486.38
2% OFF
Free delivery in UK Mainland
|
Draper 60989 COMPACT DIGITAL VARIABLE SPEED WOOD LATHE, 550W
£353.54
£346.61
2% OFF
Free delivery in UK Mainland
|
Sealey SM3002 Metalworking Lathe 300mm Between Centres
£1,063.86
£1,043.00
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 7610700 | 60988 | 33893 | SM2503B | 60989 | SM3002 |
A. The SM2503A has a 150mm swing over bed and 250mm between centres, with a cross slide travel of 50mm.
A. It is fitted with a 150W high-torque motor running on 230V.
A. The spindle speed is variable between 100 and 2000rpm.
A. It is supplied with an Ø80mm 3-jaw self-centring chuck, a tailstock centre, and service tools.
A. The spindle hole taper is MT2 and the tailstock taper is MT1.
A. Yes, an extensive range of accessories is available, and the unit can be upgraded with a mill/drill head by ordering model SM2503B.
A. Five metric thread pitches are available, ranging from 0.5mm to 1.25mm.
A. The SM2503A weighs 26.2kg.
