Product Number: SM3002

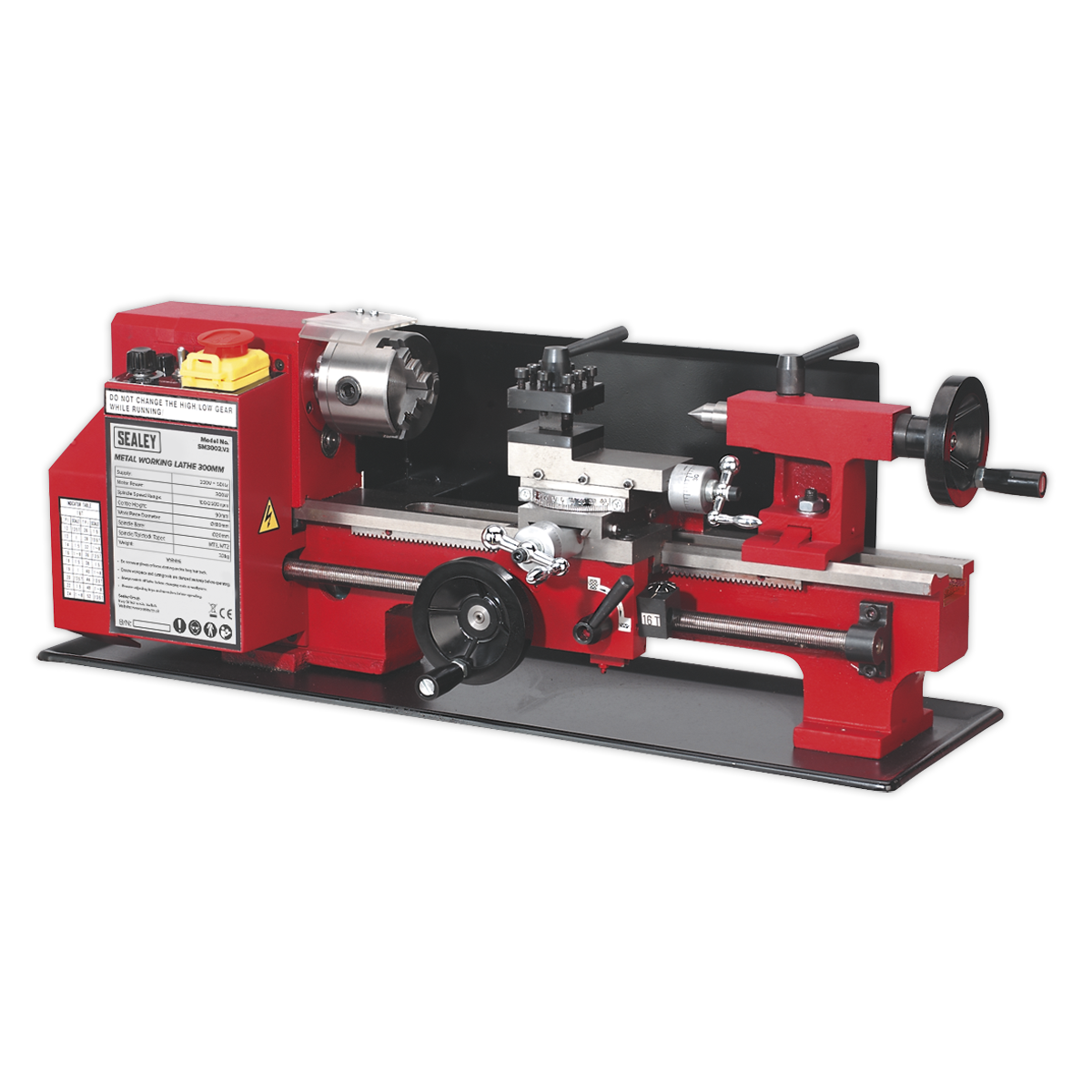

Setting up precision turning work in a small workshop or home engineering space means finding a lathe that balances capability with a compact footprint. The Sealey SM3002 is a precision built metalworking lathe designed for the small workshop, professional or home engineer, and model maker. Powered by a 300W, 230V motor, it offers a variable speed reversible drive with a spindle speed range of 100-2500rpm, and includes a powered cutting facility for both right and left-hand threads via a metric lead screw. The working envelope covers 300mm between centres, a centre height of 90mm, a maximum workpiece diameter of 180mm, a spindle bore of 20mm, and spindle and tailstock tapers of MT3 and MT2 respectively. Overall dimensions are 830 x 300 x 300mm. The machine is supplied complete with a self-centring 3-jaw chuck, 4-way tool post, swarf tray, rear splash guard, emergency stop button, and chuck guard. An optional stand is available order model SM3002ST.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM3002 |
|---|---|
| Brand | Sealey |
| Nett Weight | 40kg |
| Spindle Speed Range | 100-2500rpm |
| Distance Between Centres | 300mm |
| Centre Height | 90mm |
| Maximum Workpiece Diameter | Ø180mm |
| Spindle Bore | Ø20mm |
| Spindle Taper | MT3 |
| Tailstock Taper | MT2 |
| Lead Screw | Metric |
| Dimensions | 300 x 300 x 830mm |
| Motor Power | 300W - 230V |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 33893 Variable Speed Metal Work Lathe, 250W
£905.91
£888.15
2% OFF
Free delivery in UK Mainland
|
Draper 60988 Variable Speed Mini Wood Lathe, 250W
£215.03
£210.81
2% OFF
Free delivery in UK Mainland
|
Draper 60989 COMPACT DIGITAL VARIABLE SPEED WOOD LATHE, 550W
£353.54
£346.61
2% OFF
Free delivery in UK Mainland
|
Sealey SM2503B Drill Head for Mini Lathe SM2503A 150W
£496.11
£486.38
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 33893 | 7610700 | 60988 | SM2503A | 60989 | SM2503B |
A. The SM3002 has 300mm between centres.
A. The SM3002 is powered by a 300W, 230V motor.
A. The spindle speed range is 100-2500rpm.
A. The SM3002 is supplied with a self-centring 3-jaw chuck, 4-way tool post, swarf tray, rear splash guard, emergency stop button, and chuck guard.
A. Yes. The SM3002 features a powered cutting facility for both right and left-hand threads using a metric lead screw.
A. Yes, an optional stand is available. Order model SM3002ST.
A. The spindle taper is MT3 and the tailstock taper is MT2.
A. The maximum workpiece diameter is Ø180mm.
