Product Number: SAC42755BLN

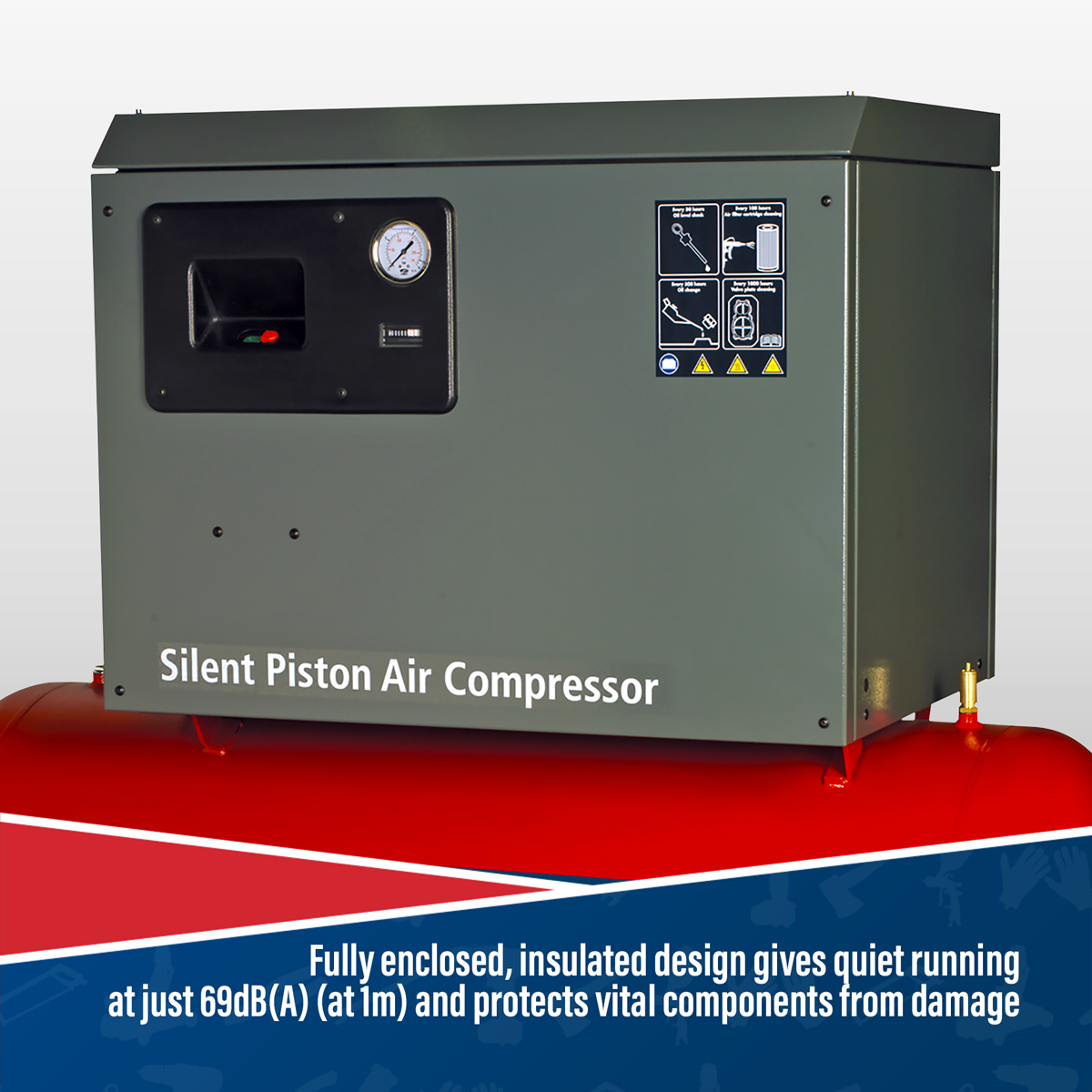

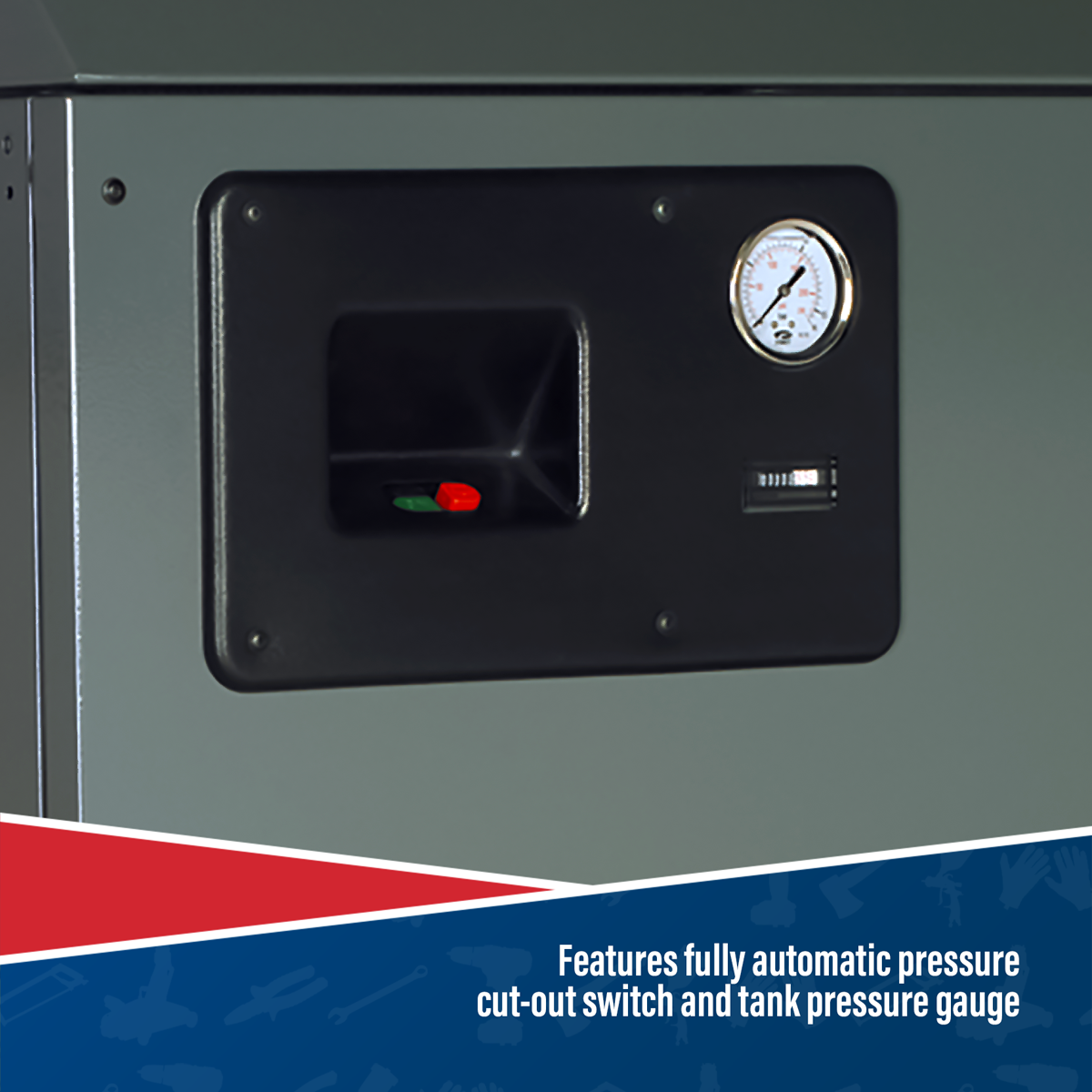

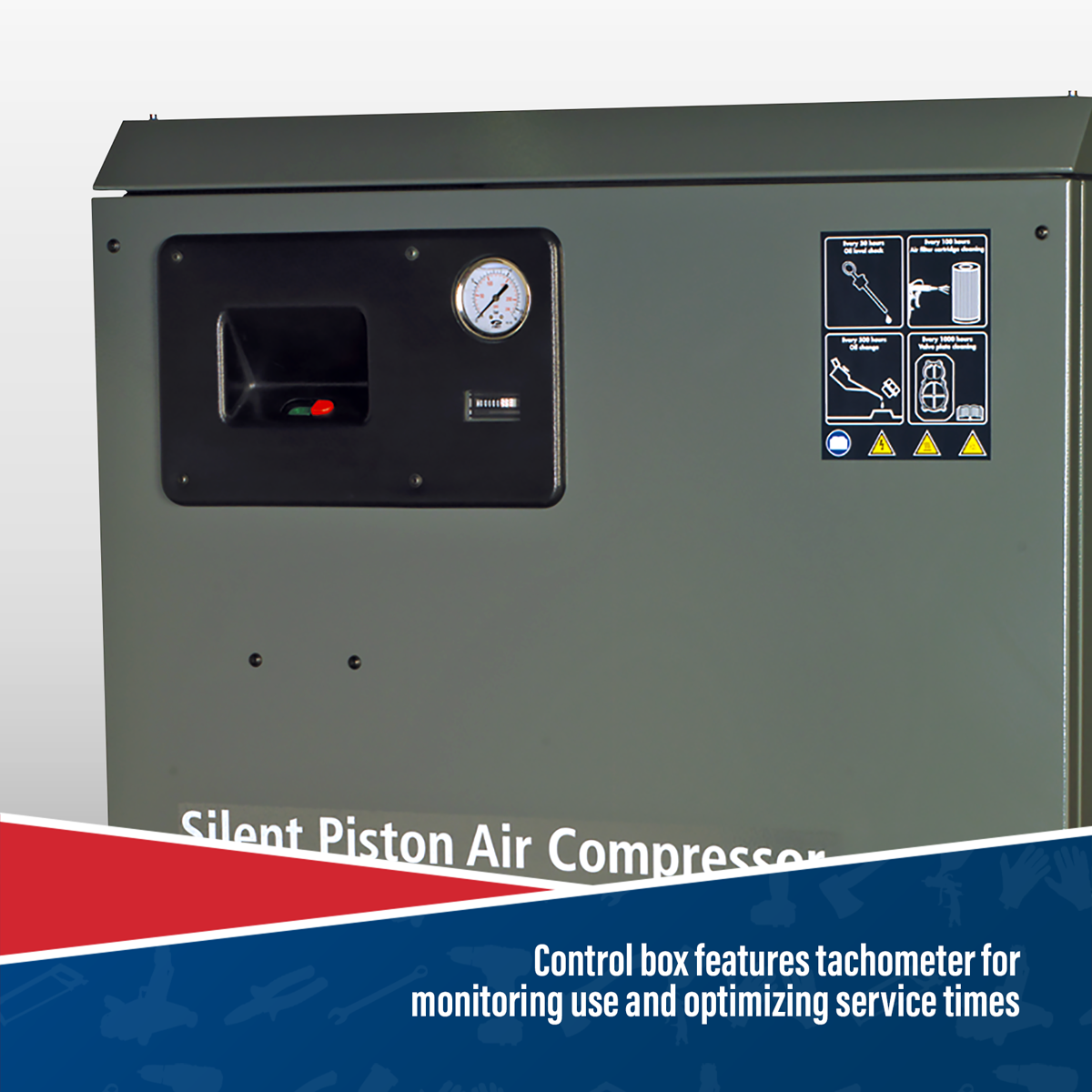

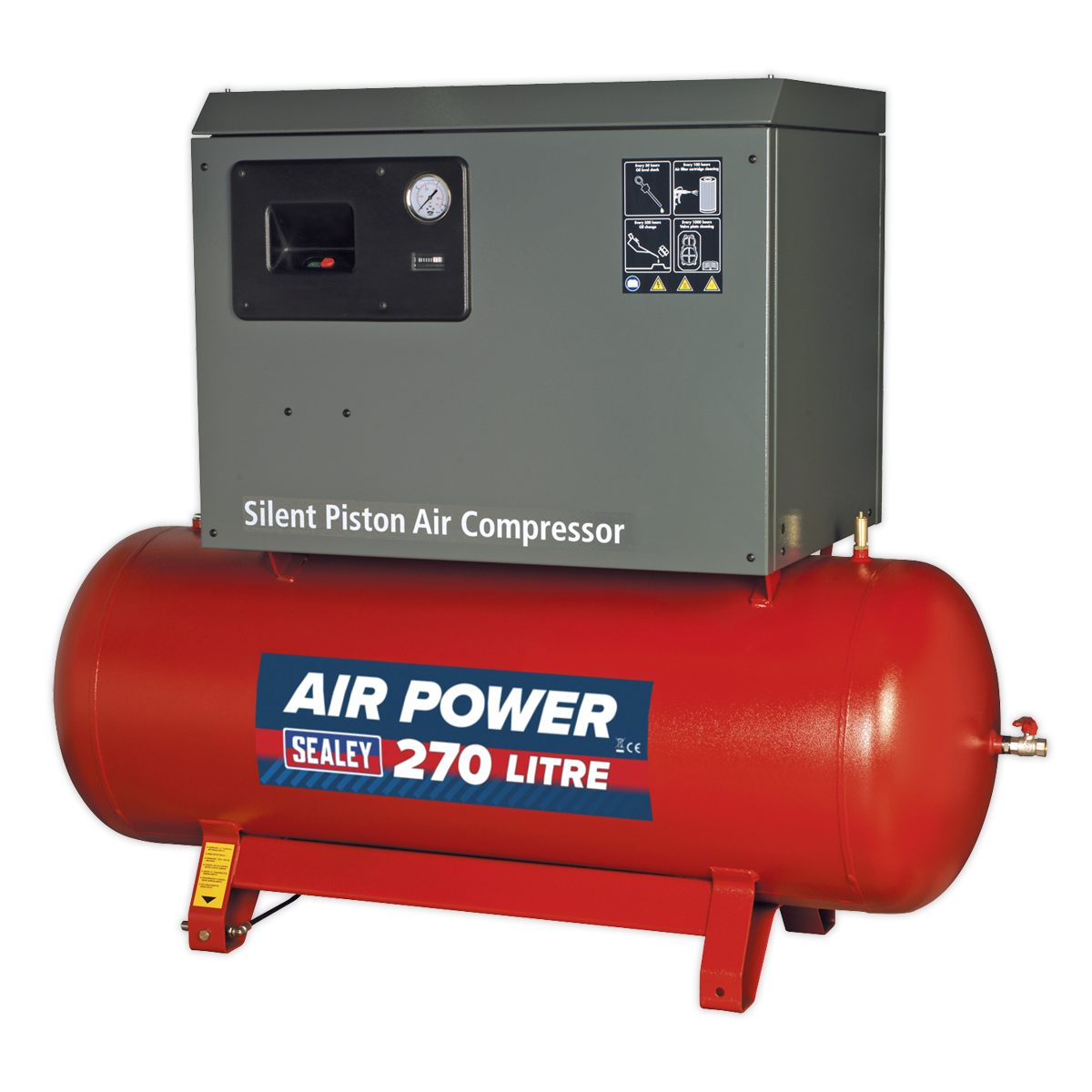

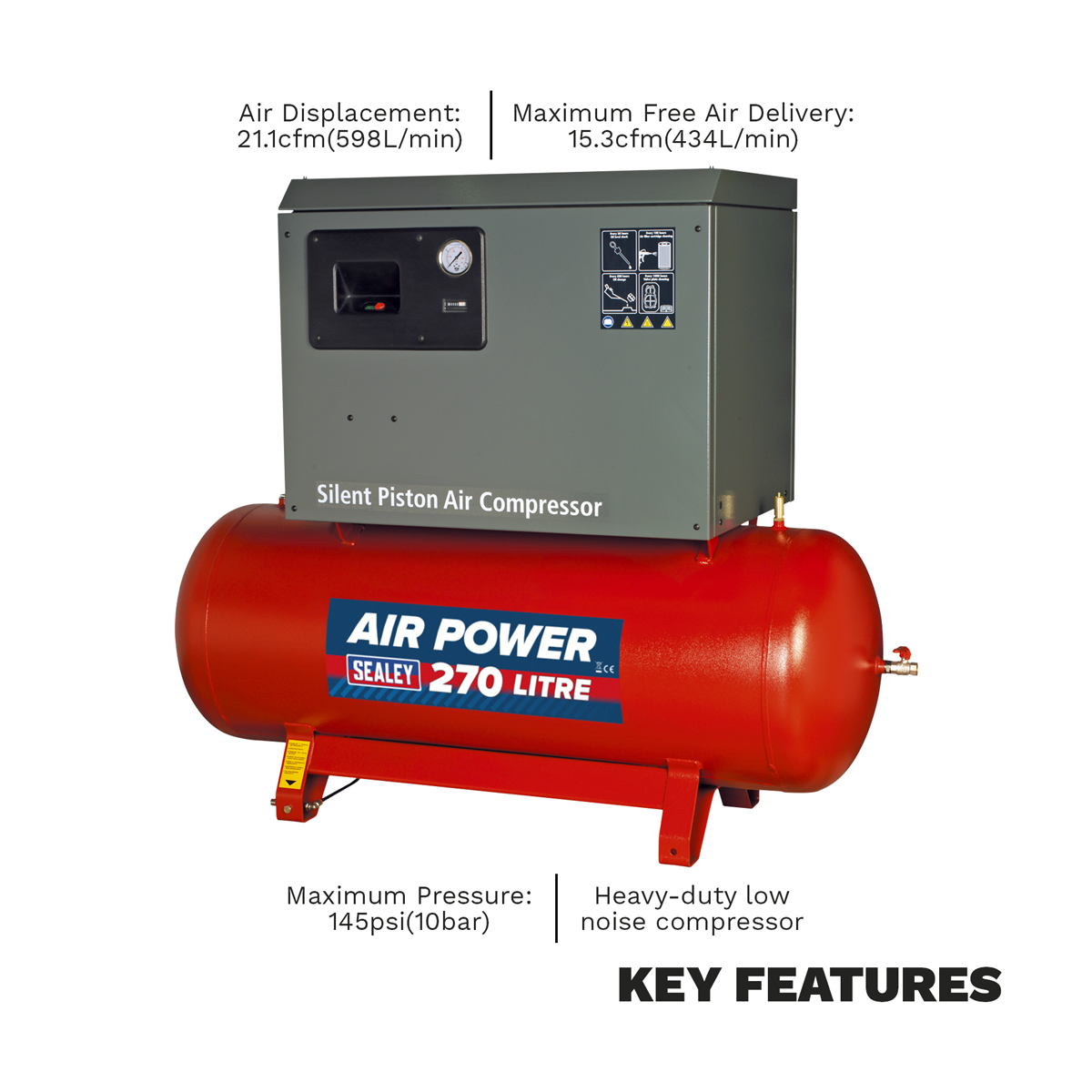

Sealey SAC42755BLN Air Compressor 270L Belt Drive 5.5hp 3ph 2-Stage with Cast Cylinders Low Noise is a heavy-duty, low‑noise compressor for garage, bodyshop and industrial use. A 5.5hp 3‑phase motor with soft start drives a 2‑stage pump delivering 21.1cfm (598L/min) displacement and 15.3cfm (434L/min) free air delivery at up to 145psi (10bar). Cast iron cylinder heads enable slower running and longer pump life. The fully enclosed, insulated design reduces noise to just 69dB(A) at 1m and protects vital components from damage. A 270L receiver provides generous air storage, while an automatic pressure cut‑out switch and tank pressure gauge support safe, easy operation. The control box includes a tachometer for monitoring usage and optimising service intervals. With full CE certification, documentation and a heavy-duty 415V 32A supply requirement, this compressor is ideal for users needing high output with significantly reduced noise.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SAC42755BLN |
|---|---|
| Air Displacement cfm(L/min) | 21.1(598) |
| Brand | Sealey |
| Maximum Free Air Delivery cfm(L/min) | 15.3(434) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 32A |
| Motor Output | 5.5hp |
| Nett Weight | 198kg |
| Noise Level | 69dB(A) |
| Oil Capacity | 1.2L |
| Outlet | 1/2"BSP Female Tap |
| Phase | 3ph |
| Receiver Capacity | 270L |
| Motor Output | 5.5hp |
| Supply | 415V |
| Phase | 3ph |
| Minimum Rated Supply | 32A |
| Speed | 1516rpm |
| Noise Level | 69dB(A) |
| Air Displacement cfm(L/min) | 21.1(598) |
| Maximum Free Air Delivery | 15.3(434) |
| Maximum Pressure | 145psi(10bar) |
| Receiver Capacity | 270L |
| Outlet | 1/2" BSP Female Tap |
| Size (W x D x H) | 1550 x 600 x 1260mm |
| Weight | 198kg |
| Size (W x D x H) | 1550 x 600 x 1260mm |
| Speed | 1516rpm |
| Supply | 415V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SAC2203BLN Air Compressor 200L Belt Drive 3hp with Cast Cylinders Low Noise
£3,724.54
£3,650.05
2% OFF
Free delivery in UK Mainland
|
Sealey SAC52775B Air Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders
£2,676.38
£2,622.85
2% OFF
Free delivery in UK Mainland
|
SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,566.39
£2,516.07
2% OFF
Free delivery in Channel Island
|
SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£2,658.28
£2,606.16
2% OFF
Free delivery in Channel Island
|
SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar
£1,722.30
£1,688.53
2% OFF
Free delivery in Channel Island
|
TIGREN 270ltr Tandem Belt-Driven Compressor
£1,470.26
£1,441.43
2% OFF
Free delivery in Channel Island
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SAC2203BLN | SAC52775B | 05251 | 06587 | 06585 | 04386 |
| Warranty | 24 | 24 | 24 | |||
| Capacity (L) | 200 | 270 | 270 | 270 | 270 | 270 |
| Max Pressure (psi) | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 |
| Power (kW) | 2.2 | 7.5 | 5.6 | 2.2 | ||
| Weight (kg) | 175 | 143 | ||||
A. It is a 270 litre, 5.5hp three-phase belt-drive compressor designed with reduced noise features.
A. It offers 21.1cfm displacement and 15.5cfm maximum free air delivery, suitable for demanding workshop tasks.
A. The unit operates up to 145psi, around 10bar, aligning with many industrial tool requirements.
A. It is tailored for professional workshops needing strong performance with reduced noise output.
A. A multi-cylinder pump and appropriately matched motor maximise performance while controlling running costs.
A. Its low-noise configuration, with enclosed components and tuned air paths, reduces operational sound compared with standard models.
A. Variants include SAC3203B3PH, SAC72775BLN and SACV52775B within the same low-noise professional series.
A. It needs a 415V three-phase supply with a 32A minimum rated feed.
A. The tank-mounted hose reel keeps hoses stored neatly, reducing trip hazards and clutter.
A. It is supplied with CE certification, test certificates and an operating/maintenance manual.
A. The unit is heavy, so additional help is required to unload it safely at the delivery point.
