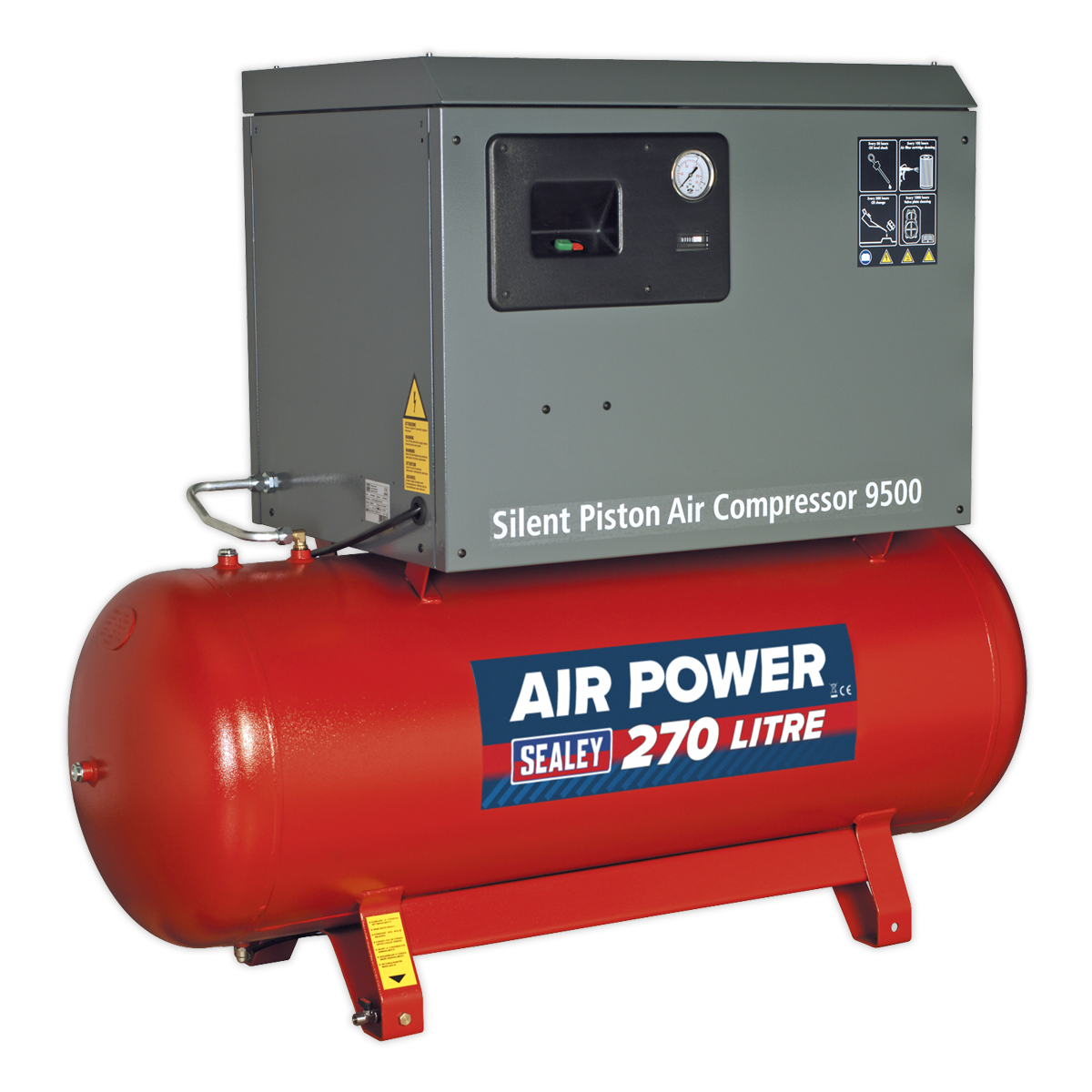

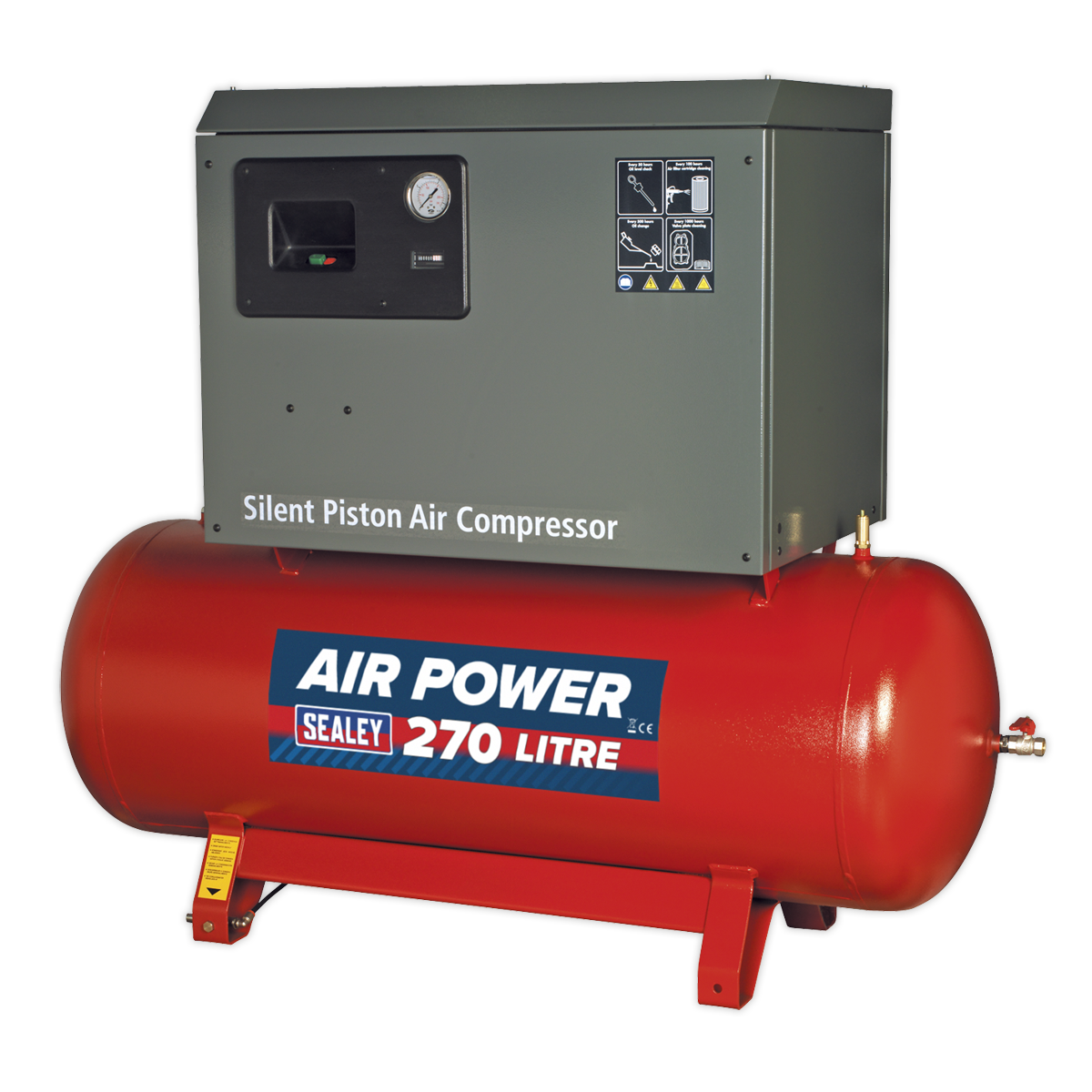

Sealey SAC72775BLN Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders Low Noise

Product Number: SAC72775BLN

£4,290.94 £4,206.80

BUY NOW

ADD TO CART

Variations

SAC3203B3PH

SAC42755BLN

SACV52775B

Click on the button below to find the right air compressor

Air Compressor Finder

Sealey SAC72775BLN Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders Low Noise is a powerful yet quiet solution for garages, bodyshops and industrial sites. A 7.5hp three‑phase motor with soft start drives a 2‑stage pump featuring cast iron heads for slower running and extended pump life. The unit delivers 32.6cfm (924L/min) displacement and 23.6cfm (668L/min) free air delivery at up to 145psi (10bar), making it suitable for intensive multi‑tool use. A fully enclosed, insulated cabinet reduces noise to just 66dB(A) at 1m, protecting vital components and improving the working environment. Heavy‑duty drive guards protect the belt and flywheel while directing cooling air over the pump. An automatic pressure cut‑out switch and tank pressure gauge support safe operation, and the control box incorporates a tachometer to monitor use and optimise service intervals. This 270L low‑noise compressor is ideal where high output, 3‑phase performance and reduced sound levels are all essential.

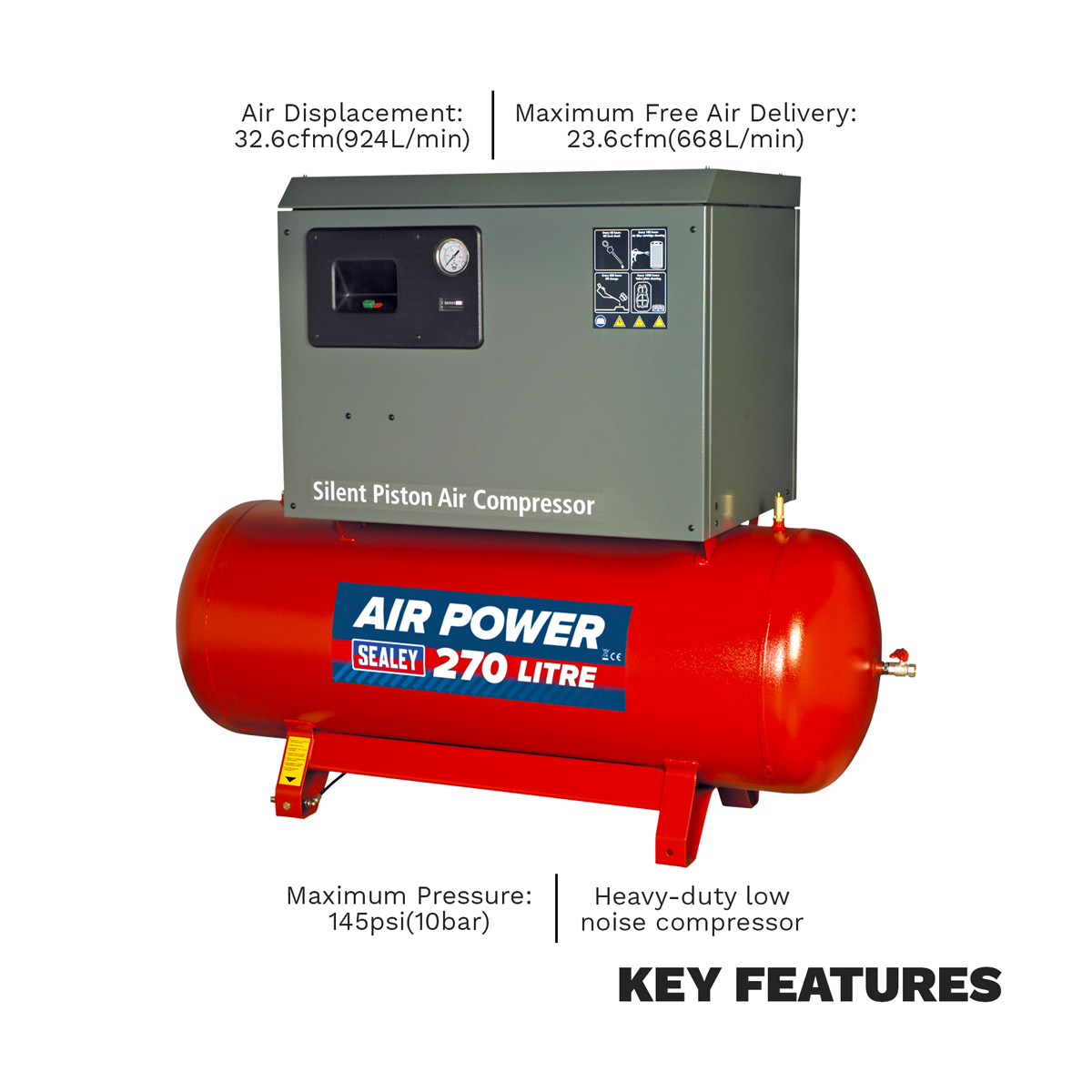

Key Features:

Air Displacement: 32.6cfm(924L/min).
Maximum Free Air Delivery: 23.6cfm(668L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
Fitted with cast iron cylinder head enabling slower revving and improved pump life.
Fully enclosed, insulated design gives quiet running at just 66dB(A) (at 1m) and protects vital components from damage.
Features fully automatic pressure cut-out switch and tank pressure gauge.
Heavy-duty 3-phase electric motor with soft start feature.

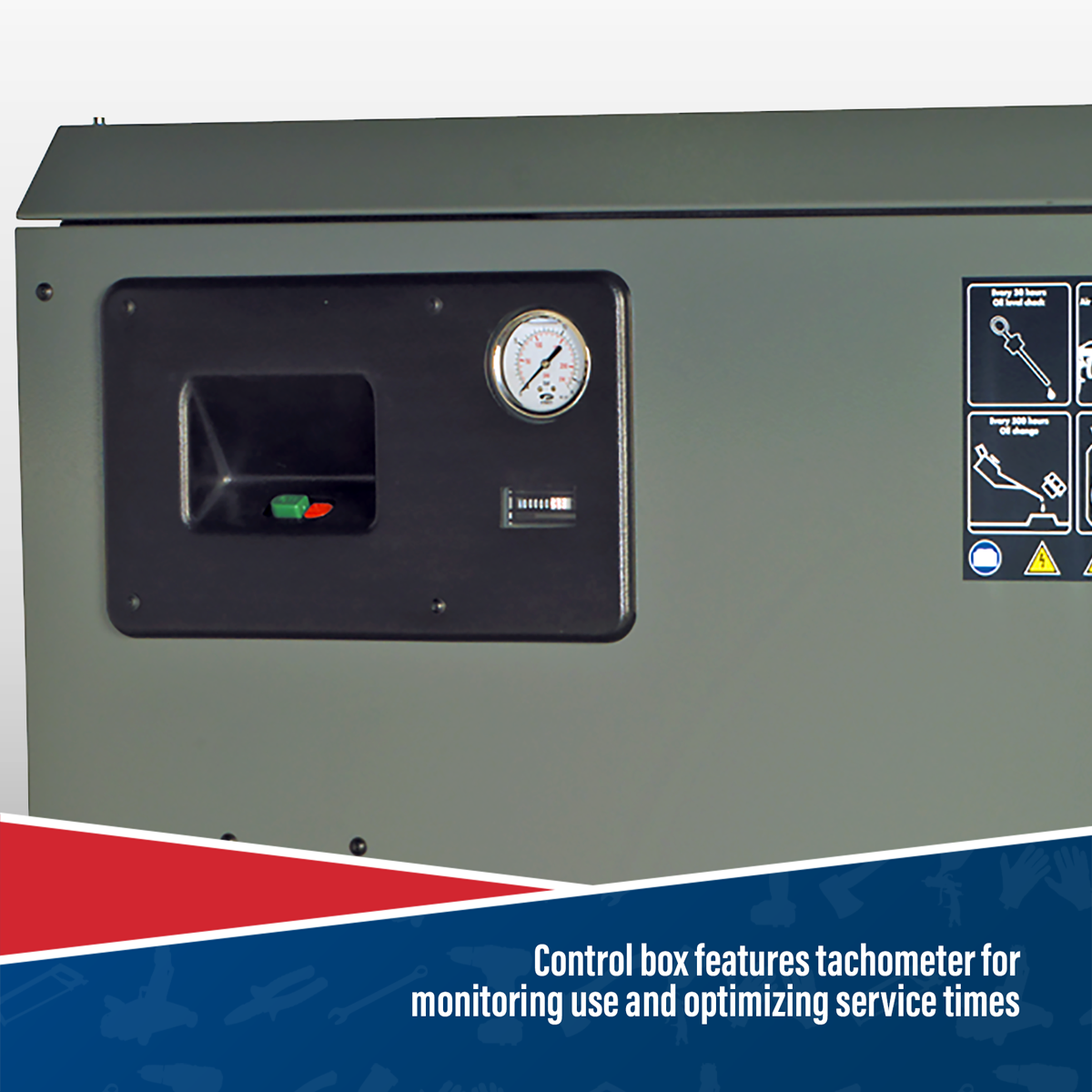

Control box features tachometer for monitoring use and optimizing service times.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SAC72775BLN
Air Displacement cfm(L/min)	32.6(924)
Brand	Sealey
Maximum Free Air Delivery cfm(L/min)	23.6(668)
Maximum Pressure	145psi(10bar)
Minimum Rated Supply	32A
Motor Output	7.5hp
Nett Weight	213kg
Noise Level	66dB(A)
Oil Capacity	1.57L
Outlet	1/2"BSP Female Tap
Phase	3ph
Receiver Capacity	270L
Size (W x D x H)	1550 x 600 x 1260mm
Speed	1280rpm
Supply	415V

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Hi, I'm Simon, your PartsForMachines product expert.

Checking fit, size, power, or compatibility?

Ask your question — I’ll cut through the jargon.

Thinking

Disclaimer: This chat uses AI and may be inaccurate or incomplete. Always verify details on the product page, datasheets and on equipment manual. For precise advise, contact our customer support.

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "LFTH1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £778.45 £763.19 2% OFF Free delivery in Channel Island ADD	Compare SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £934.15 £915.83 2% OFF Free delivery in Channel Island ADD	Compare SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £891.72 £874.24 2% OFF Free delivery in Channel Island ADD	Compare SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £1,694.20 £1,660.98 2% OFF Free delivery in Channel Island ADD	Compare SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,524.52 £2,475.02 2% OFF Free delivery in Channel Island ADD	Compare SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £1,446.27 £1,417.91 2% OFF Free delivery in Channel Island ADD	Compare SIP 06583TN5.5/200 Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £1,342.96 £1,316.63 2% OFF Free delivery in Channel Island ADD	Compare SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,614.91 £2,563.64 2% OFF Free delivery in Channel Island ADD	Compare SIP 06291 ISBD7.5/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £1,987.33 £1,948.36 2% OFF Free delivery in Channel Island ADD	Compare SIP 06295 ISBD10/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £3,137.90 £3,076.37 2% OFF Free delivery in Channel Island ADD	Compare SIP 06297 ISBD15/500 Super Electric Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 11 Bar £4,393.06 £4,306.92 2% OFF Free delivery in Channel Island ADD	Compare SIP 04328 ISKP7/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,250.82 £1,226.29 2% OFF Free delivery in Channel Island ADD	Compare SIP 04330 ISKP7/150 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,472.83 £1,429.93 3% OFF Free delivery in Channel Island ADD	Compare SIP 04331 ISKP7/150ES Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,608.36 £1,576.82 2% OFF Free delivery in Channel Island ADD	Compare SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,291.31 £1,265.99 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05302	06323	05308	06585	05251	06335	06583	06587	06291	06295	06297	04328	04330	04331	04444
Input Supply		230	230	400	230	415	400	400	400	400	400
Motor Power		2.2		5.6	2.2	4.1	4.1	7.5	5.6	7.5	11.2
Warranty		24	24	24	24	24	24	24	24	24	24	24	24	24	24
Maximum Pressure (bar)	0	10	0	10	10	10	10	10	11	11	11	10	10	10	10
Free AirDelivery (FAD)	0	8.5	0	25	22	18	18	28	20.5	25	40.7	11	11	11	11
Noise Level	0	96	97	0	0	97	0	0	0	0	0	0	0	0	0
Maximum Pressure (psi)	0	145	0	145	145	145	145	145	160	160	160	150	150	150	150
Piston Displacement (CFM)		13	18	34	32	24	24	42	31	38	61.5	16	16	16	15
Piston Displacement (litres/min)		368	510	963	906	680	680	1189	878	1076	1744	453	453	453	425
Show More

Technical

Q 1. What are the key characteristics of the Sealey SAC72775BLN compressor?

A. It is a 270 litre, 7.5hp, three-phase, 2-stage belt-drive low-noise compressor.

Q 2. How much air delivery does the SAC72775BLN provide?

A. It offers 32.6cfm displacement and 23.6cfm maximum free air delivery, suiting very demanding applications.

Q 3. What maximum pressure can this low-noise compressor reach?

A. The unit operates up to 145psi, approximately 10bar, for heavy-duty pneumatic tools.

Q 4. How quiet is the SAC72775BLN during operation?

A. It runs at about 66dB(A) at one metre, significantly quieter than many conventional compressors.

Q 5. How does the cast iron cylinder head assist pump life?

A. It enables slower revving and improved heat management, thereby extending pump service life.

Q 6. What protection does the insulated enclosure provide?

A. The fully enclosed, insulated design reduces noise and shields vital components from accidental damage.

Q 7. Which control features help monitor and service this compressor?

A. A control box with tachometer helps monitor use and optimise service intervals.

Q 8. Which related compressors are variants of the SAC72775BLN model?

A. Variants include SAC3203B3PH, SAC42755BLN and SACV52775B in the low-noise, heavy-duty range.

Q 9. What electrical supply is required for this unit?

A. It operates from a 415V three-phase supply with a 32A minimum rated feed.

Q 10. For which environments is a low-noise 270 litre compressor particularly useful?

A. It suits garages, bodyshops and industrial sites where noise control is important.
