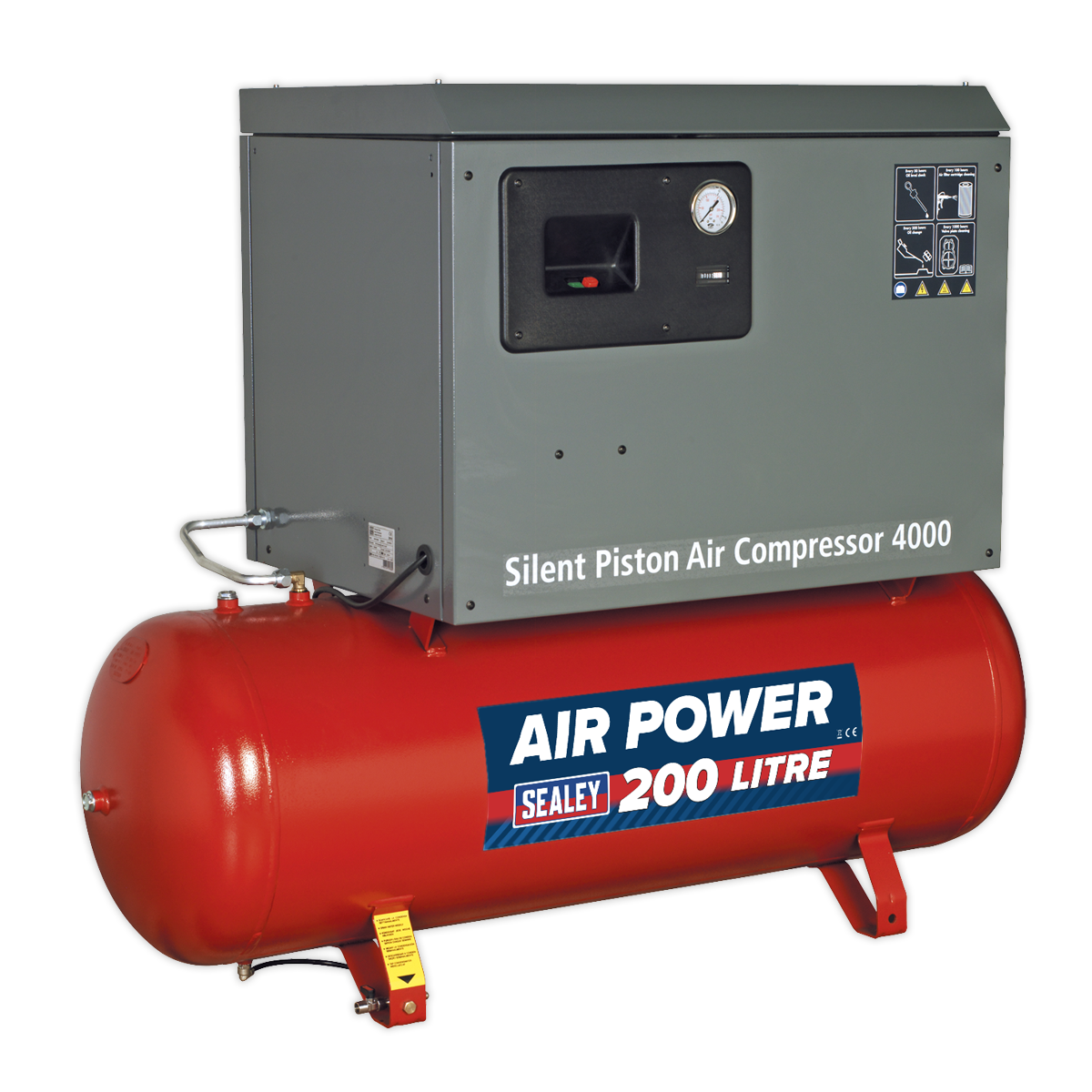

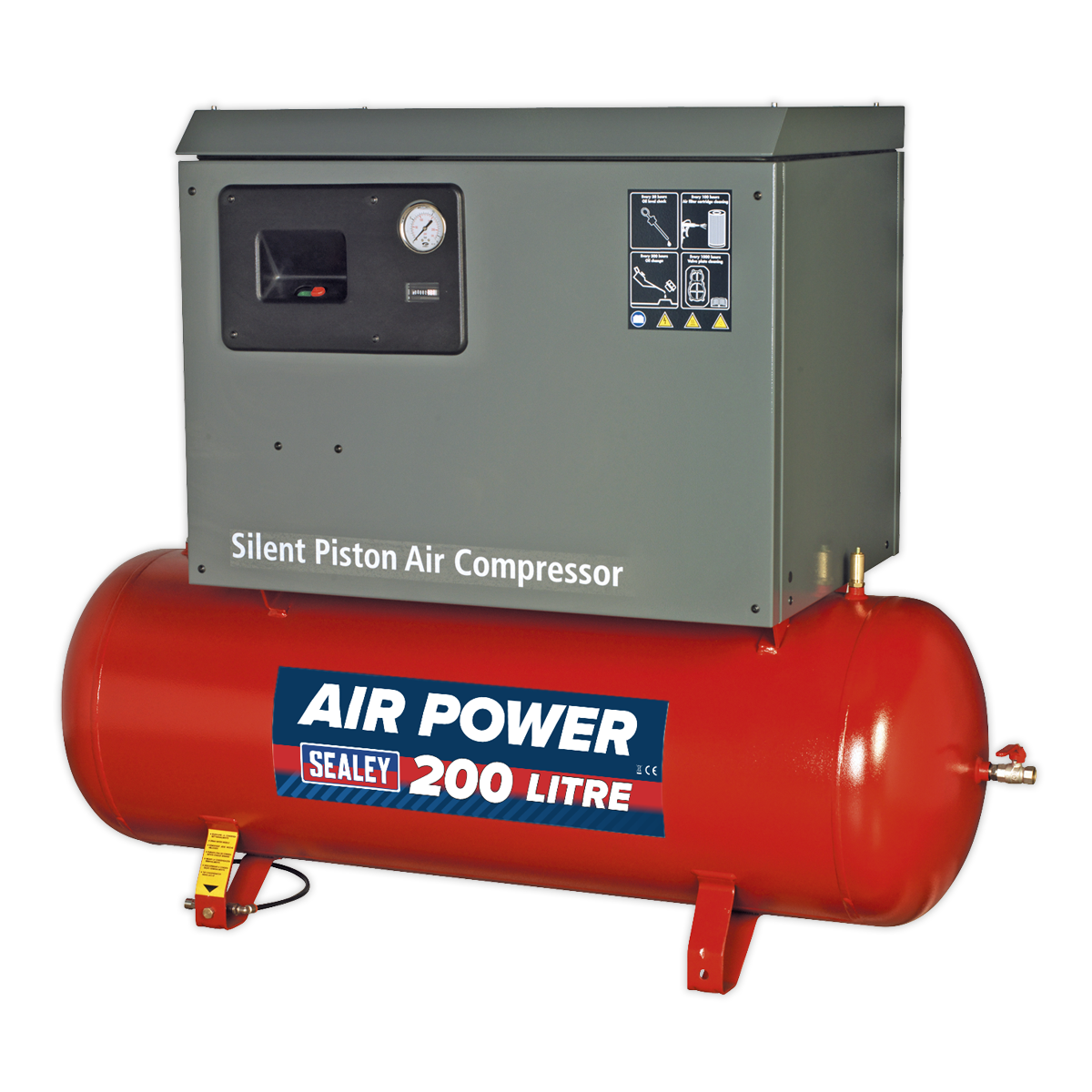

Sealey SAC2203BLN Air Compressor 200L Belt Drive 3hp with Cast Cylinders Low Noise

Product Number: SAC2203BLN

£3,516.14 £3,447.20

BUY NOW

ADD TO CART

Click on the button below to find the right air compressor

Air Compressor Finder

Sealey SAC2203BLN Air Compressor 200L Belt Drive 3hp with Cast Cylinders Low Noise is a heavy-duty single-phase compressor designed for quieter operation in garage, bodyshop and industrial environments. A 3hp motor on 230V 16A with soft start drives a belt pump delivering 15cfm (425L/min) displacement and 10.9cfm (309L/min) free air delivery at up to 145psi (10bar). Cast iron cylinder heads allow slower running and improved pump life. The fully enclosed, insulated cabinet reduces noise to just 68dB(A) at 1m and shields vital components from accidental damage. The 200L receiver offers ample storage, and the unit features an automatic pressure cut‑out switch and tank pressure gauge for safe operation. A control box with tachometer allows usage monitoring and optimisation of service intervals. Supplied with CE certificate, test certificate and documentation, this compressor suits workshops needing strong performance with significantly reduced noise.

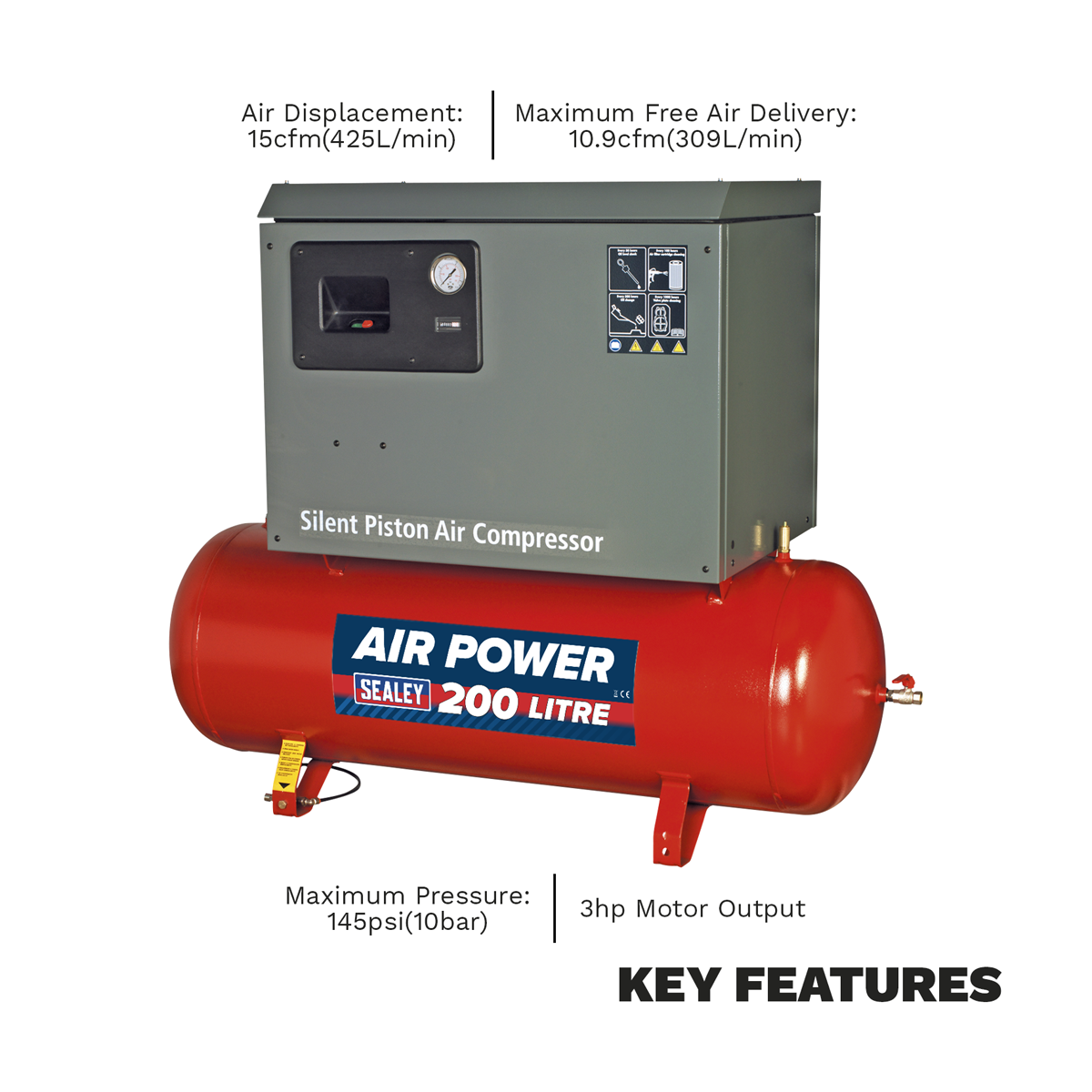

Key Features:

Air Displacement: 15cfm(425L/min).
Maximum Free Air Delivery: 10.9cfm(309L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.

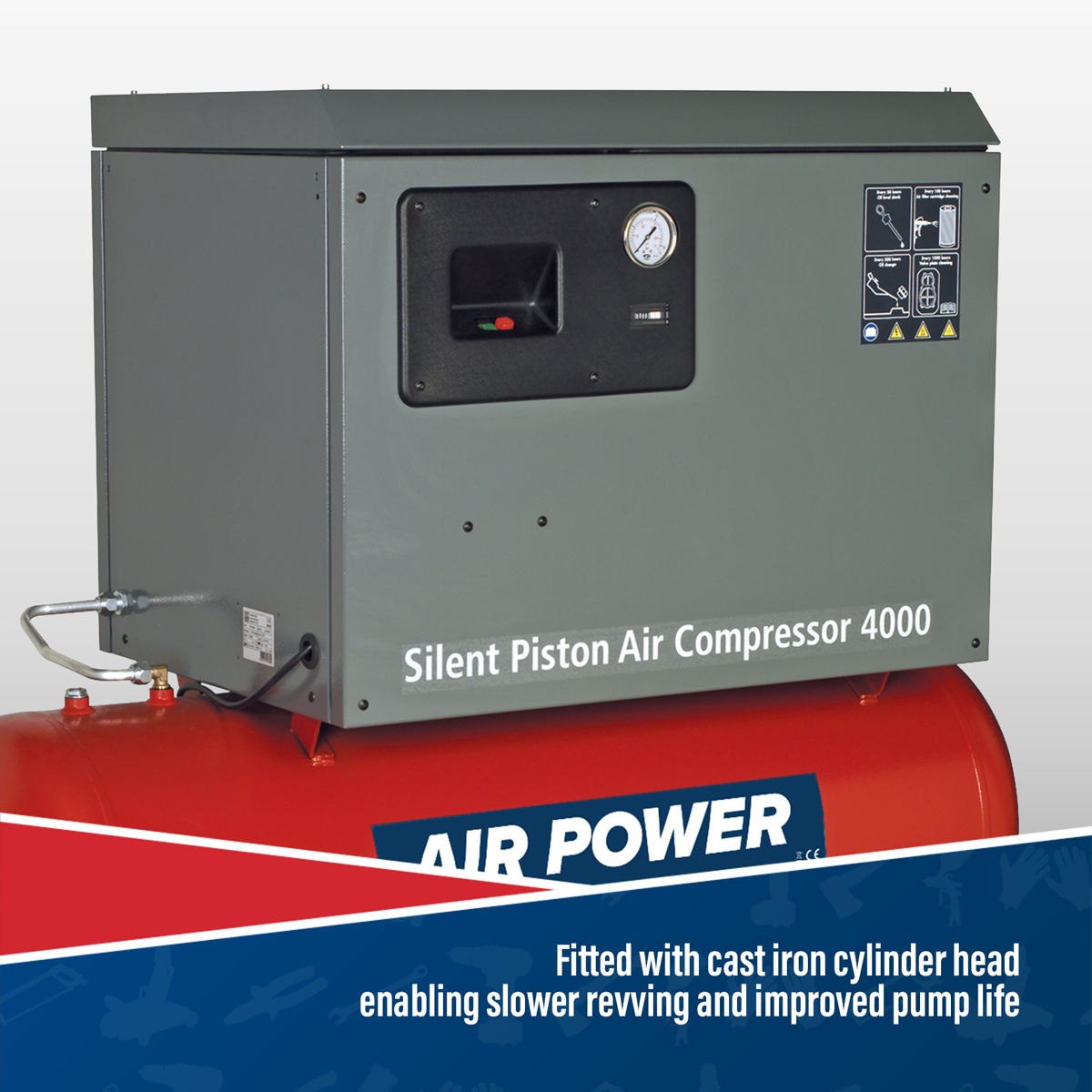

Fitted with cast iron cylinder head enabling slower revving and improved pump life.

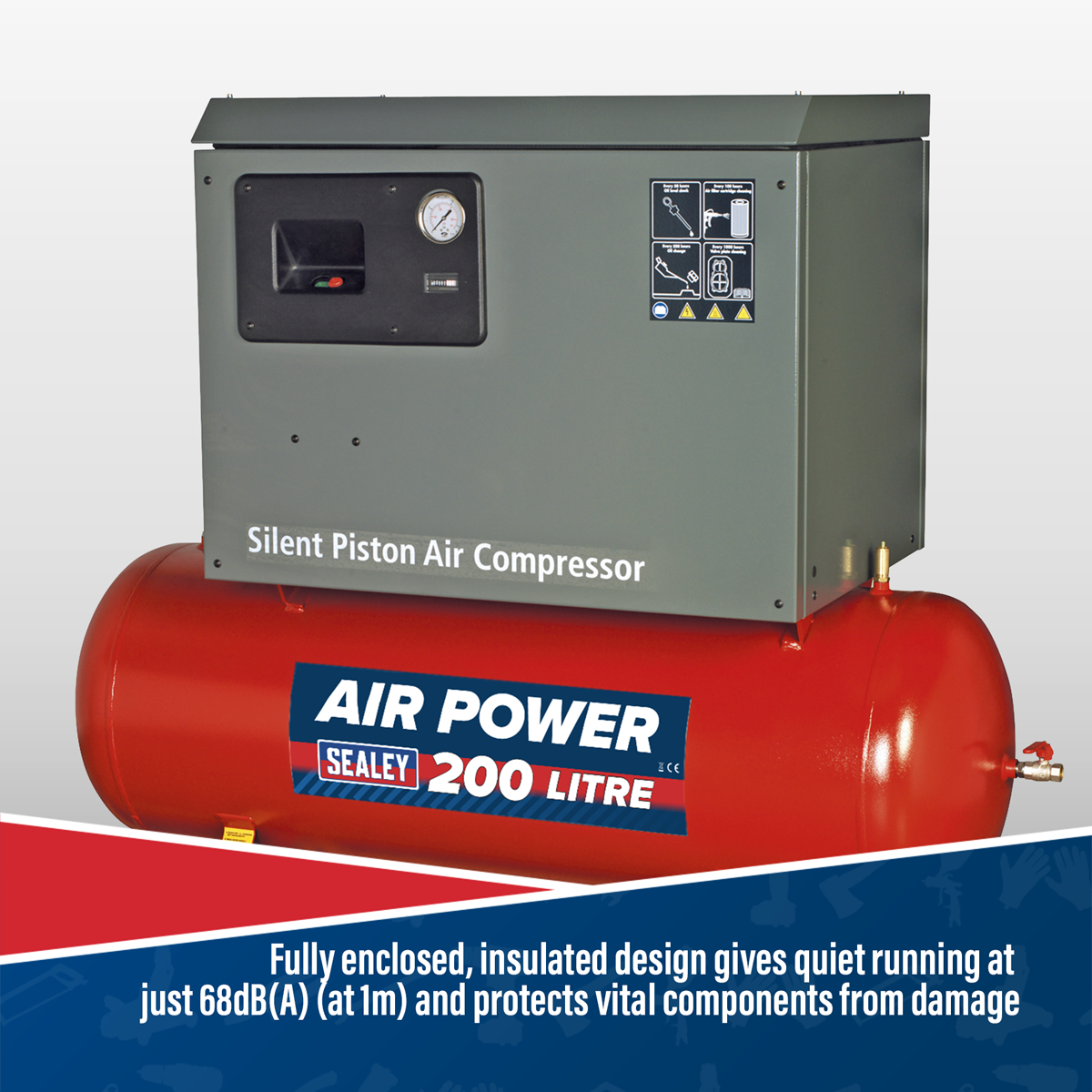

Fully enclosed, insulated design gives quiet running at just 68dB(A) (at 1m) and protects vital components from damage.
Features fully automatic pressure cut-out switch and tank pressure gauge.
Heavy-duty single phase electric motor with soft start feature.

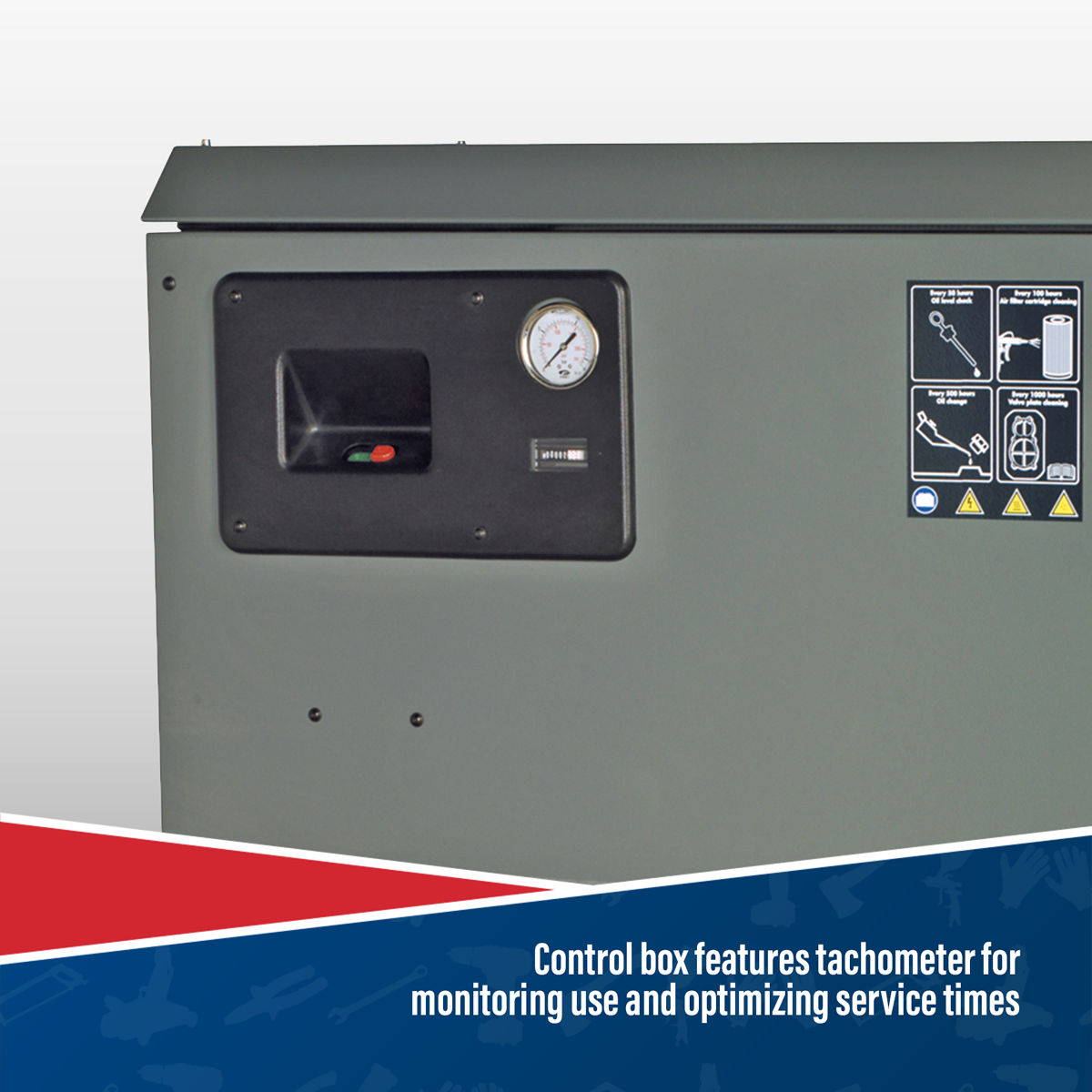

Control box features tachometer for monitoring use and optimizing service times.
Supplied with full CE certification, test certificate, operating/maintenance manual.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SAC2203BLN
Air Displacement cfm(L/min)	15(425)
Brand	Sealey
Maximum Free Air Delivery cfm(L/min)	10.9(309)
Maximum Pressure	145psi(10bar)
Minimum Rated Supply	16A
Motor Output	3hp
Nett Weight	175kg
Noise Level	68dB(A)
Oil Capacity	0.72L
Outlet	1/2"BSP Female Tap
Phase	1ph
Receiver Capacity	200L
Motor Output	3hp
Supply	230V
Phase	1ph
Minimum Rated Supply	16A
Speed	1075rpm
Noise Level	68dB(A)
Air Displacement cfm(L/min)	15(425)
Maximum Free Air Delivery cfm (L/min)	10.9(309)
Maximum Pressure	145psi(10bar)
Receiver Capacity	200L
Outlet	1/2" BSP Female Tap
Size (W x D x H)	1440 x 440 x 1210mm
Weight	175kg
Size (W x D x H)	1440 x 440 x 1210mm
Speed	1075rpm
Supply	230V
