Product Number: 2051478314
Variations
Click on the button below to find the right air compressor

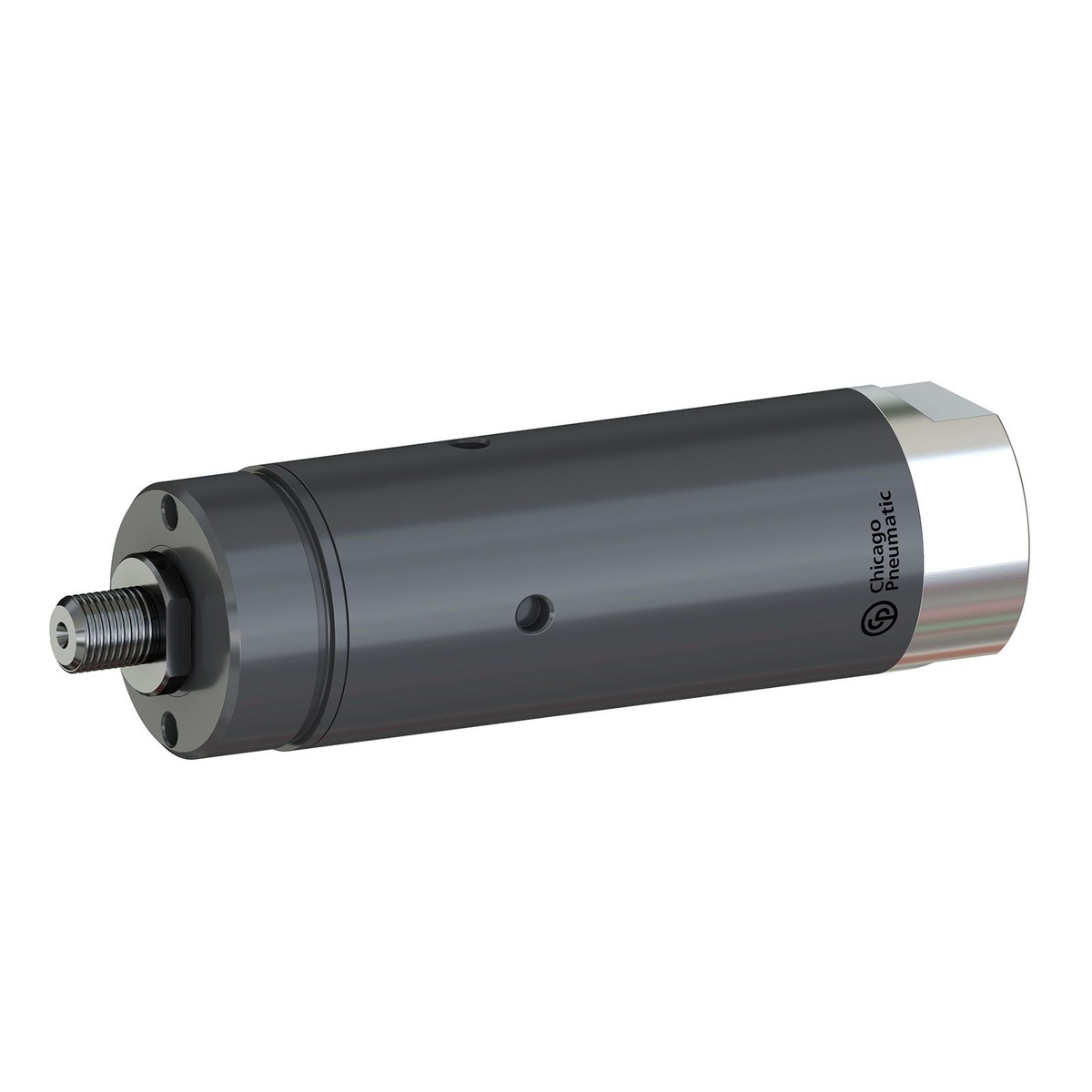

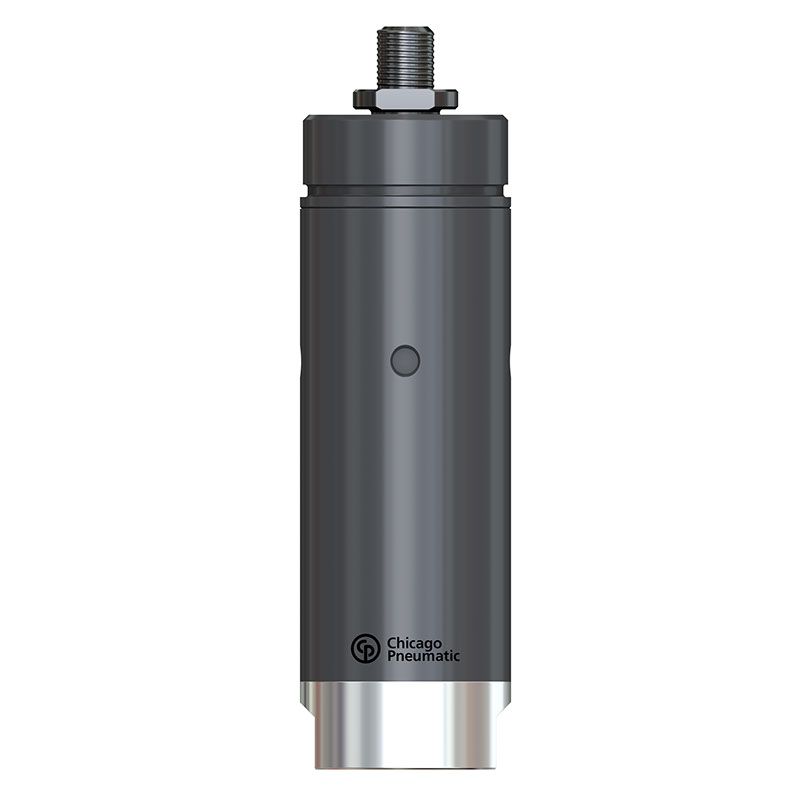

Air Compressor FinderThe standard pneumatic vane motors are compact in design, light in weight, lubrication free, have keyed output shaft spindle and are available for a variety of speed and torque requirements. They are suitable for building using handheld machines or any industrial equipment. The range offers non-reversible versions delivering a maximum power of 1 800 W (2.45 hp), with torque from 0.17 to 299 Nm (0.13 to 221 ft.lbs) and speed from 35 to 19,500 rpm.
Product Feature:| Air consumption at load | 5.3 l/s |
|---|---|
| Air flow max power | 5.3 l/s |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Safety | Index of protection (IP code) |
| Max free speed range | 3550 rpm |
| Minimum starting torque | 3.1 Nm |
| Stall torque | 3.2 Nm |
| Torque at max power | 1.6 Nm |
| Max output power | 0.3 kW |
| Back Head Coaxial | No |
| Front nut threaded | Yes |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Output Spindle Thread | 3/8-24 UNF |
| Rotation drive | Clockwise |
| Shaft loading code | b |
| Spindle type | Threaded shaft |
| Starting system | None |
| Weight | 0.55 kg |
