Product Number: 2051478224
Variations
Click on the button below to find the right air compressor

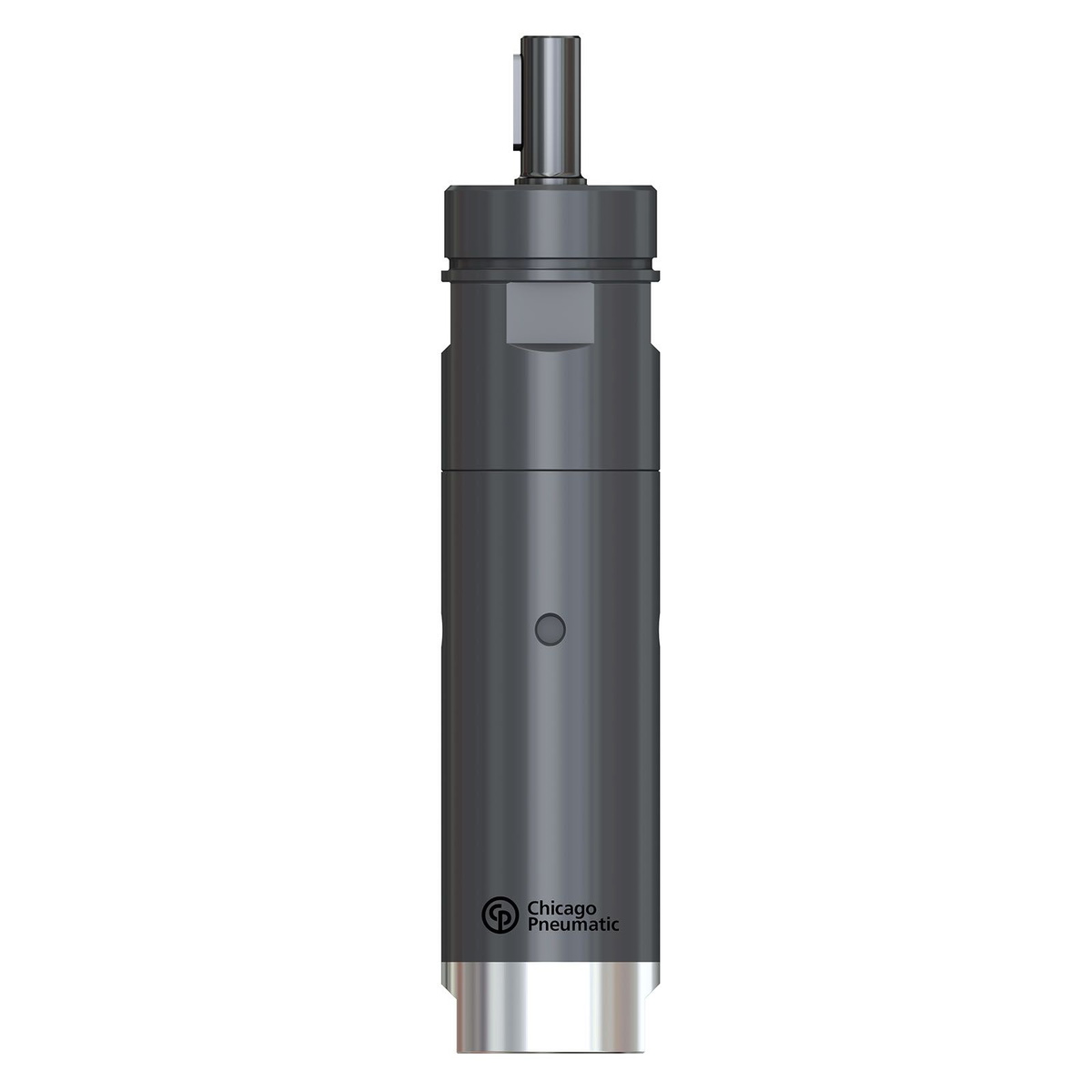

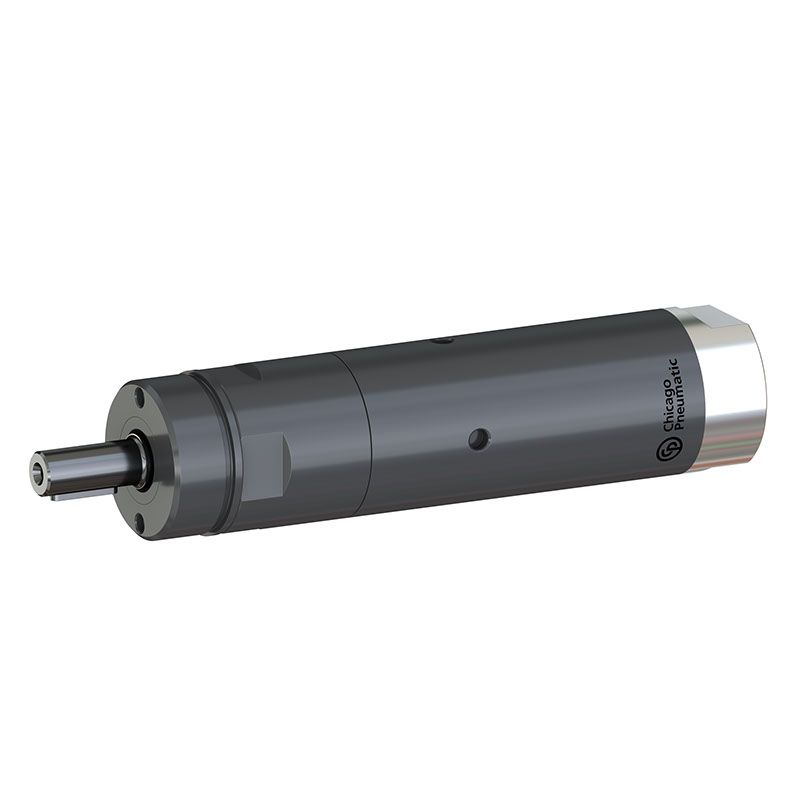

Air Compressor FinderThe standard pneumatic vane motors are compact in design, light in weight, lubrication free, have keyed output shaft spindle and are available for a variety of speed and torque requirements. They are suitable for building using handheld machines or any industrial equipment. The range offers non-reversible versions delivering a maximum power of 1 800 W (2.45 hp), with torque from 0.17 to 299 Nm (0.13 to 221 ft.lbs) and speed from 35 to 19,500 rpm.
Product Feature:| Air consumption at load | 5.3 l/s |
|---|---|
| Air flow max power | 5.3 l/s |
| Air inlet thread size (in) | 1/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Safety | Index of protection (IP code) |
| Max free speed range | 21500 rpm |
| Minimum starting torque | 0.51 Nm |
| Stall torque | 0.54 Nm |
| Torque at max power | 0.27 Nm |
| Max output power | 0.3 kW |
| Back Head Coaxial | No |
| Front nut threaded | Yes |
| Main Material type | Steel |
| Motor Lubrication free | Yes |
| Rotation drive | Clockwise |
| Shaft loading code | b |
| Spindle type | Keyed shaft |
| Starting system | None |
| Output Spindle size | 10 mm |
| Weight | 0.55 kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Quick delivery and the product at a very competitive price.
Highly Recommend
I ordered a starter motor for my Polaris ranger, best price around and prompt service.
thanks for sending the part so quickly, and was just the job
1st class,excellent service.
Excellent service
You stock the parts that I needed and delivered quickly and efficiently.
Worth the Money
Strong and Excellent Quality.
10 out of 10 from me!
Great price.
Great delivery.
Very easy transaction the machine arrived on time and well packaged,
Absolutely spot on!
Excellent website, easy ordering, great price, speedy delivery and an excellent machine at an excellent price!
Thanks very much!!
Great service with speedy delivery, easy ordering system and great during & after service support.
Rating
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic 2H410-500-ATEX, Reversible Vane Air Motor, 660 W Power, 500 Rpm Free Speed – 2051473194
£3,976.86
£3,898.88
2% OFF
|
Chicago Pneumatic 2H410-350-ATEX, Reversible Vane Air Motor, 660 W Power, 350 Rpm Free Speed – 2051473204
£4,388.15
£4,302.11
2% OFF
|
Chicago Pneumatic 2H410-150-ATEX, Reversible Vane Air Motor, 660 W Power, 150 Rpm Free Speed – 2051473214
£4,947.22
£4,850.22
2% OFF
|
Chicago Pneumatic 2H410-90-ATEX, Reversible Vane Air Motor, 660 W Power, 90 Rpm Free Speed – 2051473224
£5,046.03
£4,947.09
2% OFF
|
Chicago Pneumatic 2H410-60-ATEX, Reversible Vane Air Motor, 660 W Power, 60 Rpm Free Speed – 2051473234
£4,947.22
£4,850.22
2% OFF
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 2051473194 | 2051473204 | 2051473214 | 2051473224 | 2051473234 | 2051478244 | 2051478254 | 2051478264 | 2051478274 | 2051478284 | 2051478294 | 2051478304 | 2051478314 | 2051478324 | 2051478334 |
| Power Output(W) | 700 | 700 | 700 | 700 | 700 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Stall Torque(Nm) | 3.2 | 5.4 | 10.6 | 14.2 | 23.6 | 0.54 | 2.4 | 3.2 | 5.4 | 10.6 | |||||
| Shaft Type | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Hexagonal | Keyed | Keyed | Keyed | Keyed | Keyed | Threaded | Threaded | Threaded | Threaded | Threaded |
