Product Number: 6151590590

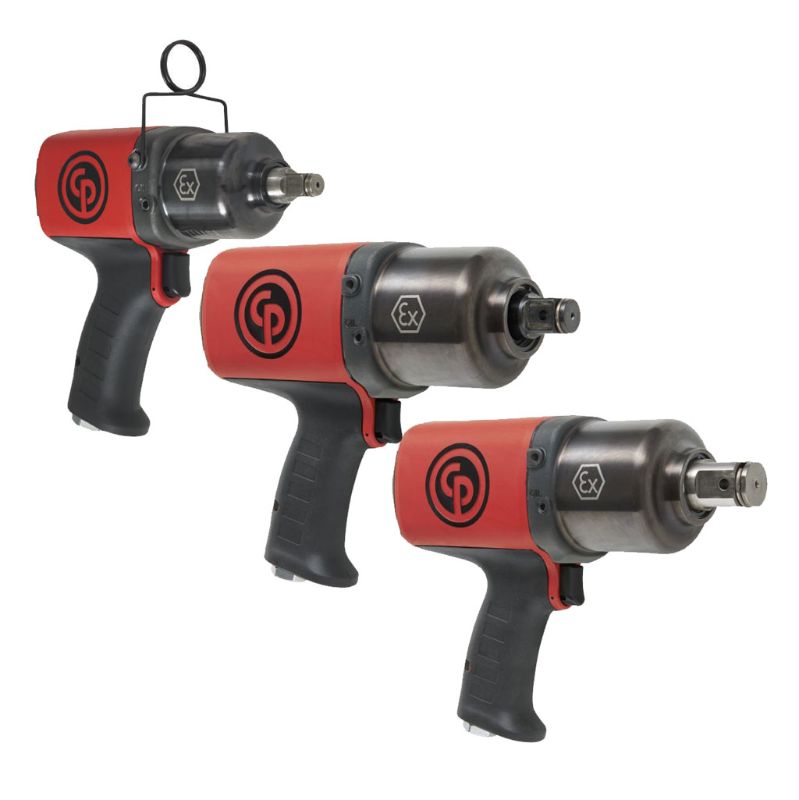

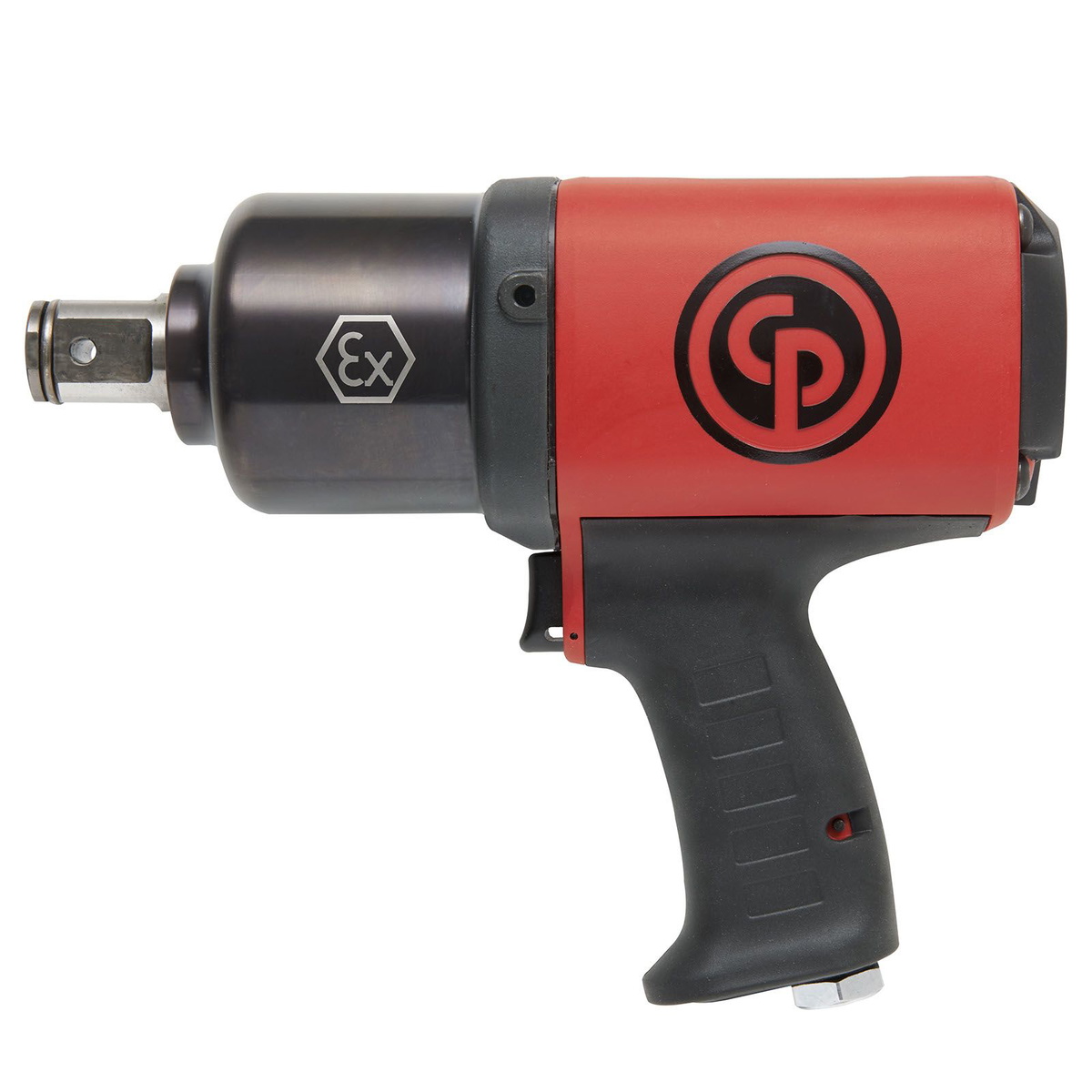

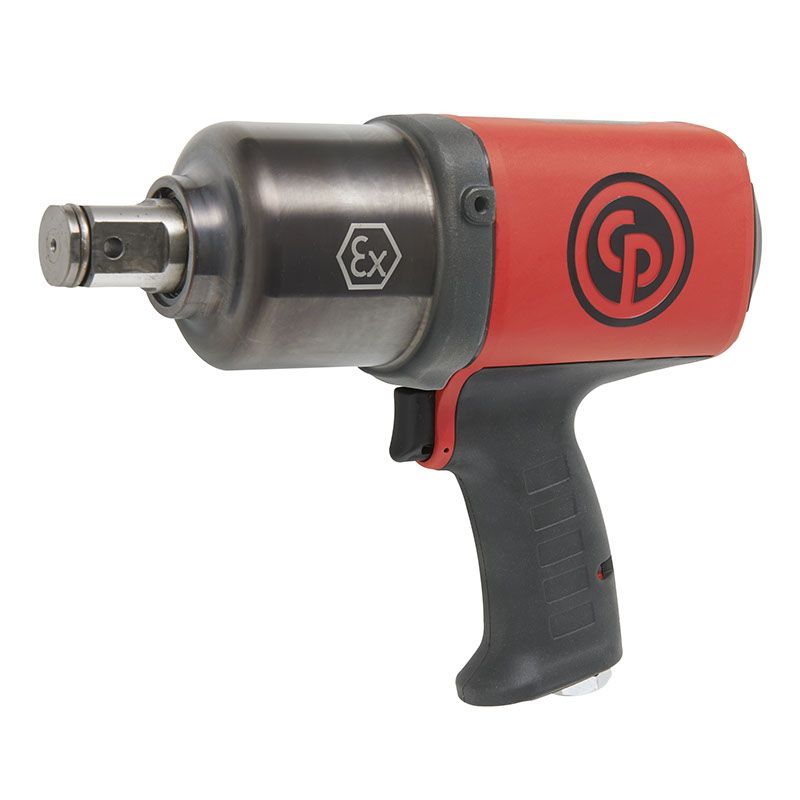

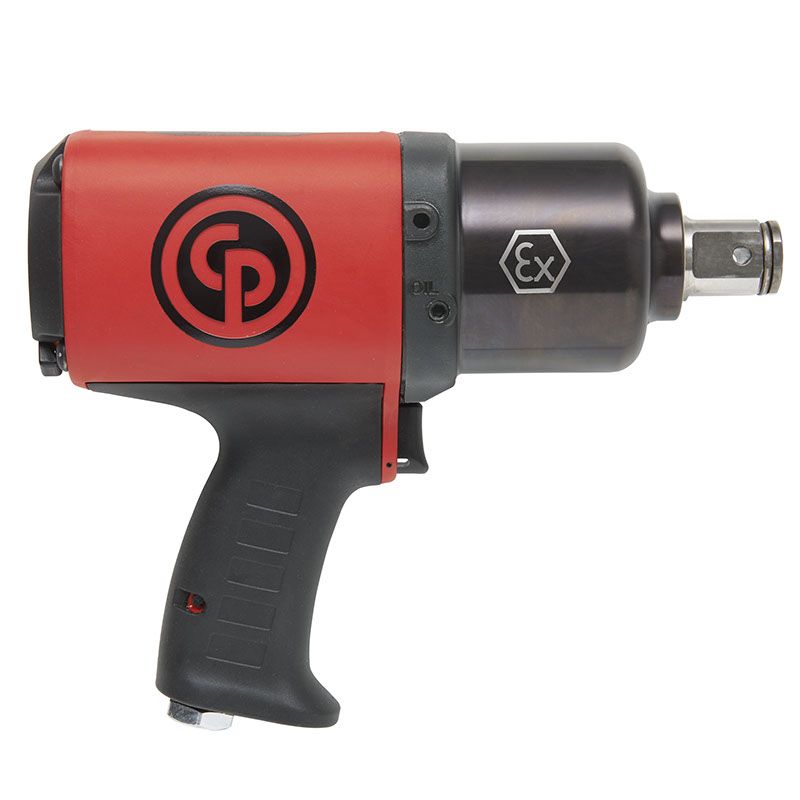

The Chicago Pneumatic CP6778EX-P18D delivers the raw power and certified safety that demanding industrial environments require, making it the go-to choice for professionals who cannot afford compromise. Engineered for use in potentially explosive atmospheres, this ATEX-rated 1-inch drive air impact wrench brings 1400 Nm of maximum forward working torque and an impressive 1750 Nm in reverse, giving technicians the muscle needed to break even the most stubborn fasteners free with confidence. Built around a pistol grip design, the CP6778EX-P18D offers excellent balance and control during extended use, reducing operator fatigue on heavy-duty assembly and maintenance tasks. A minimum working torque of 400 Nm forward provides a broad and practical torque range, ensuring versatility across a wide spectrum of bolting applications without the need for additional equipment. As a professional-grade chicago pneumatic impact wrench, it draws on decades of CP engineering heritage to deliver consistent, repeatable performance shift after shift. The tool accepts a standard air inlet connection and operates efficiently on a conventional compressed air supply, integrating seamlessly into existing workshop or site infrastructure. This cp impact wrench is ideally suited for petrochemical plants, oil refineries, offshore platforms, gas terminals, and any hazardous-zone facility where a certified air impact wrench is non-negotiable. From heavy flange work to large structural bolting, it handles the toughest jobs where safety certification and maximum torque output must go hand in hand.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Max working torque fwd | 1400 Nm |
|---|---|
| Max torque reverse | 1750 Nm |
| Min working torque fwd | 400 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Sound Pressure | 94 dB(A) |
| Uncertainty vibration-K | 2.4 m/s² |
| Free Speed | 5100 rpm |
| Air consumption at free speed | 26 l/s |
| Length (L) | 255 mm |
| Power weight ratio | 380 Nm/kg |
| Side to Center | 45 mm |
| Weight | 4.6 kg |
| Blow per minute | 1050 |
| Body | Composite |
| Clutch housing | Steel |
| Clutch lubrication type | Oil bath |
| Handle type | Pistol |
| Impact mechanism | Twin hammer |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Dual |
| Starting system | Trigger |
| Suspension option | Included |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP7773D-6, 1" Air Impact Wrench
£555.80
£539.61
3% OFF
Free delivery in UK Mainland
|
Sealey CP20VXIWKIT Premier SV20 Brushless Cordless Impact Wrench Kit 20V 4Ah
£302.26
£296.21
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 8941077737 | 8941077731 | 90204500 | CP20VXIWKIT | 07202 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | |
| Capacity (L) | 269 | ||||
| Drive Size (Inch) | 1 | 1 | 1 | 1/2 | 3 |
| Free Speed | 6600 rpm | 6600 rpm | |||
| Length (mm) | 13 | 13 | 300 | ||
| Max Pressure (psi) | 90 | ||||
| Torque Range (Nm) | 1450 | 1450 | 1450 | ||
| Weight (kg) | 7.4 | 6.6 | 6.8 | ||
| Show More | |||||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP6778EX-P18D delivers 1400 Nm maximum forward torque and 1750 Nm in reverse, operating at 6.3 bar working pressure.
A. The CP6778EX-P18D reaches 5100 rpm free speed with 26 l/s air consumption at 6.3 bar working pressure.
A. The CP6778EX-P18D measures 255 mm in length, weighs 4.6 kg, and features a 1 drive, delivering up to 1750 Nm maximum torque, at a free speed of 5100 rpm.
A. Sound pressure is 94 dB(A) - use ear and vibration PPE accordingly.
A. The CP6778EX-P18D uses a 3/8" NPT air inlet at 6.3 bar maximum dynamic working pressure.
A. ATEX-certified models in this range are available - check for the ATEX suffix in the CP6778EX-P18D product family on partsformachines.com.
A. The CP6778EX-P18D is engineered for professional industrial use - suited for heavy automotive and MRO fastening work.
A. The CP6778EX-P18D features an aluminium alloy body with composite over-sleeve insulation for durability and reduced tool weight.
A. The CP6778EX-P18D requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP6778EX-P18D consumes 26 l/s at load via 3/8" NPT inlet at 6.3 bar.
