Product Number: 6151590160

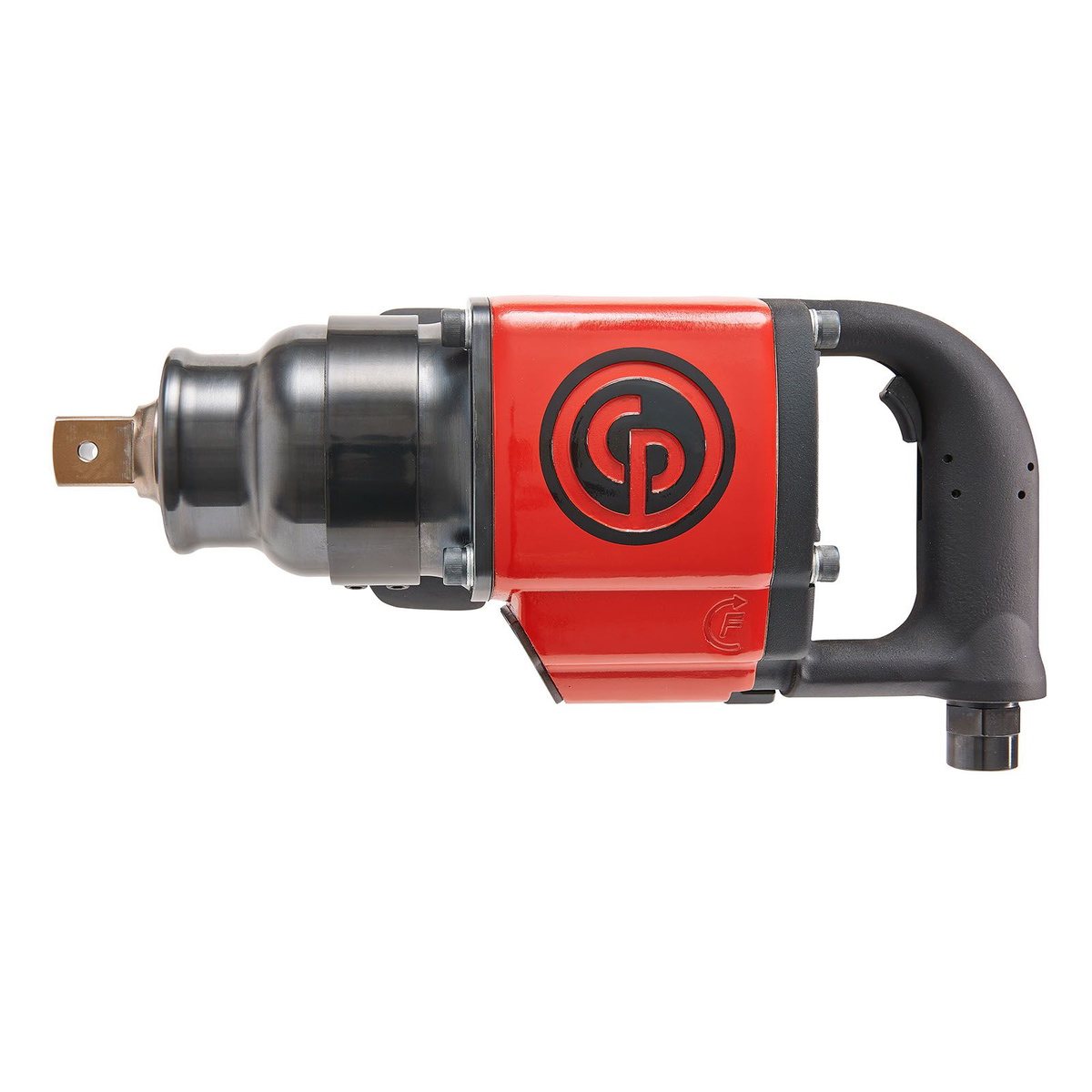

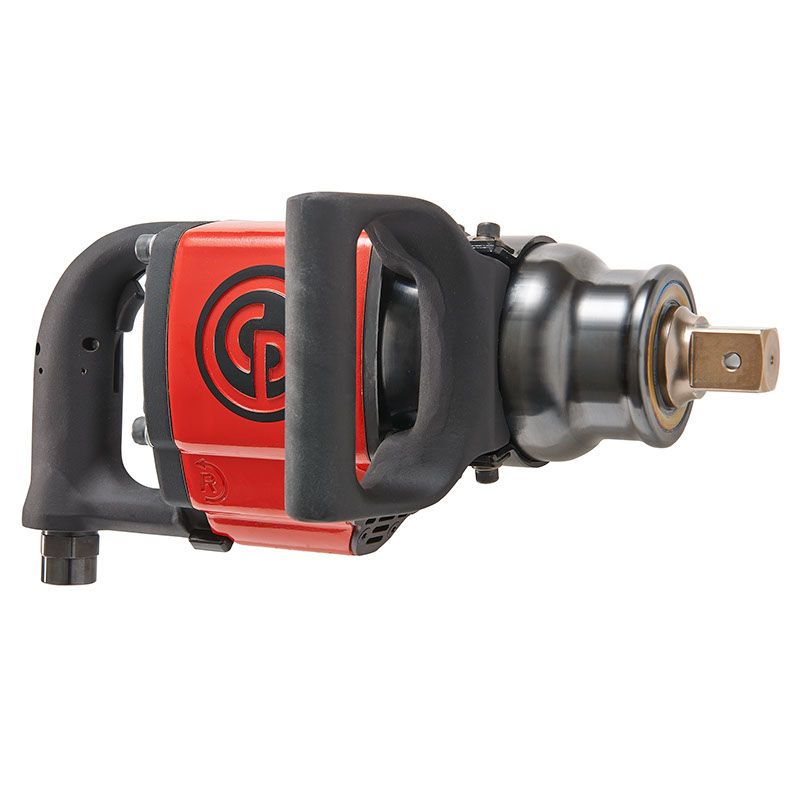

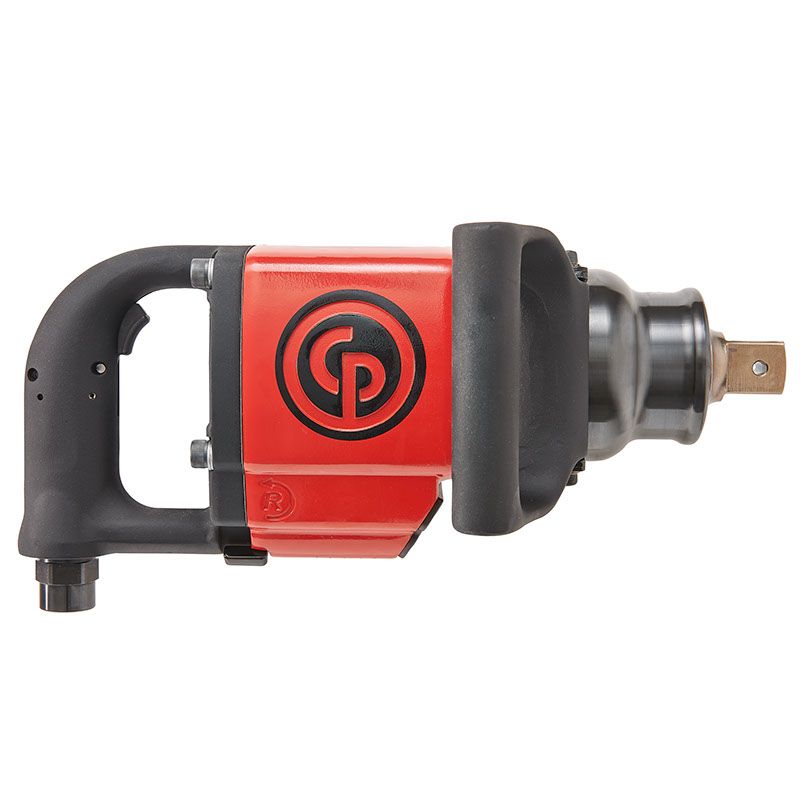

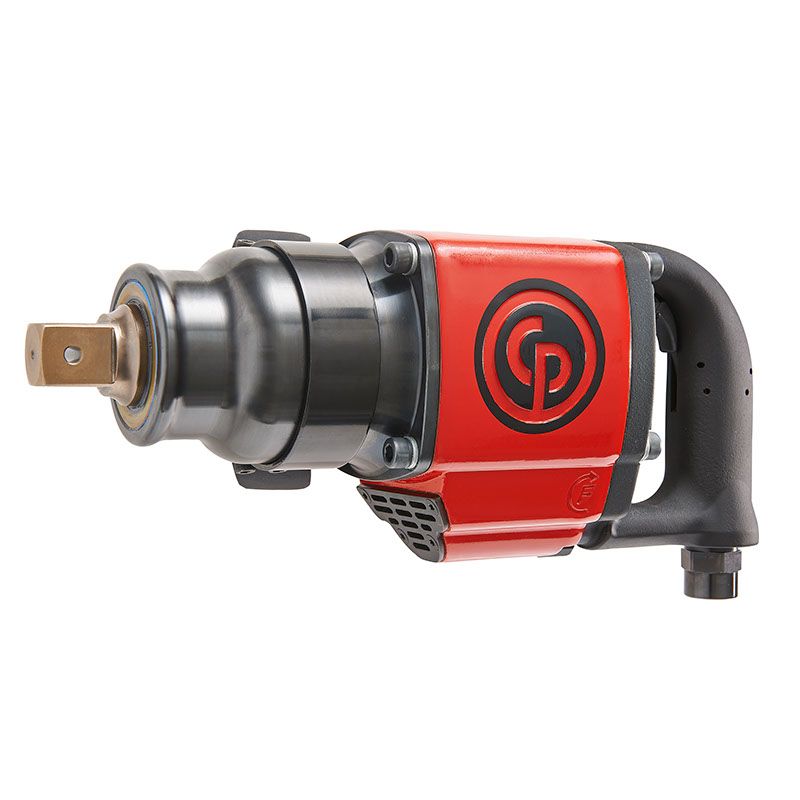

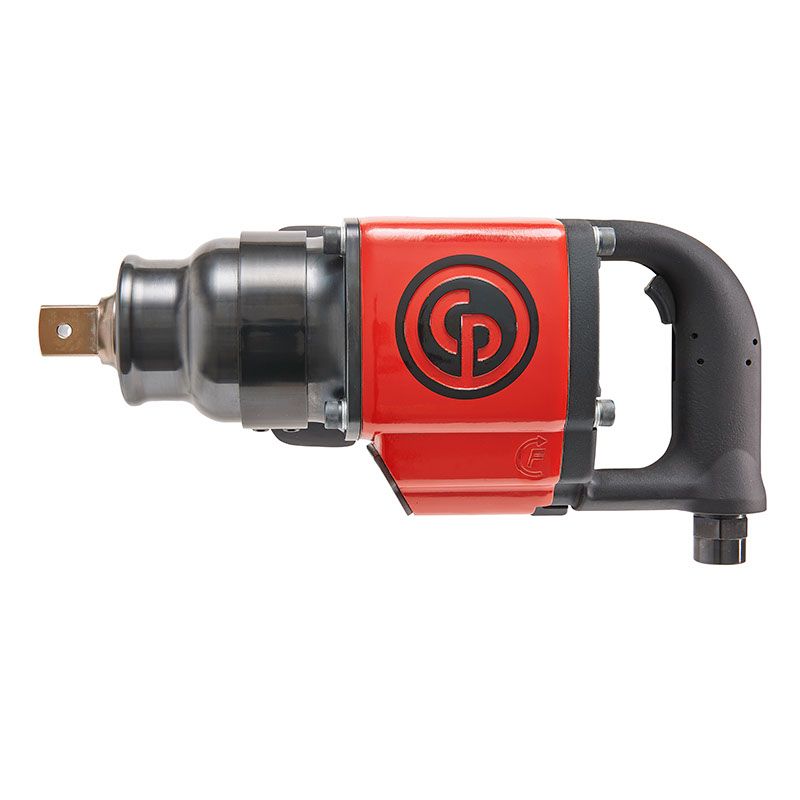

Built for the most demanding heavy-duty applications, the Chicago Pneumatic CP0611-D28H delivers the raw power and precision that industrial professionals depend on when standard tools simply won't cut it. This 1-inch drive D-handle air impact wrench produces an exceptional maximum working torque of 2440 Nm in forward and a formidable 3790 Nm in reverse, making it one of the most capable chicago pneumatic impact wrench models available for tackling seized fasteners and high-torque assemblies with confidence. Operating at up to 3500 RPM, the CP0611-D28H ensures rapid and efficient fastener removal and installation, reducing downtime across demanding workshop and field environments. The ergonomic D-handle configuration provides superior grip stability and operator control during extended use, while the robust air inlet design supports consistent airflow and sustained performance under continuous load. As a cp impact wrench engineered without torque limiting, it delivers its full power output precisely when needed, giving technicians unrestricted capability at every stage of the job. Constructed to Chicago Pneumatic's renowned standards for durability, this air impact wrench is ideally suited for heavy vehicle maintenance, mining equipment servicing, agricultural machinery repair, and large-scale construction applications where maximum torque output and long-term reliability are non-negotiable. Whether working in a professional garage or on-site in challenging conditions, this tool consistently performs where results matter most.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Max working torque fwd | 2440 Nm |
|---|---|
| Max torque reverse | 3790 Nm |
| Min working torque fwd | 1220 Nm |
| Torque limited | No |
| Air inlet thread size (in) | 1/2 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 1 in |
| Min hose diam (5 m hose length) | 16 mm |
| Sound Pressure | 99 dB(A) |
| Uncertainty vibration-K | 4.1 m/s² |
| Free Speed | 3500 rpm |
| Air consumption at free speed | 55 l/s |
| Length (L) | 360 mm |
| Power weight ratio | 360 Nm/kg |
| Side to Center | 46 mm |
| Weight | 10.4 kg |
| Blow per minute | 1020 |
| Body | Aluminium |
| Clutch housing | Steel |
| Clutch lubrication type | Grease |
| Handle type | D-handle |
| Impact mechanism | 2-jaws |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Side handle | Yes |
| Starting system | Trigger |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP0611-D28L, 1" D-Handle Air Impact Wrench
£3,874.94
£3,762.08
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic - CP0611P RLS, 1" D-Handle Air Impact Wrench
£3,214.95
£3,121.31
3% OFF
Free delivery in UK Mainland
|
Sealey SA6004 3/4" Drive Compact Twin Hammer Air Impact Wrench
£274.47
£268.98
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 90203500 1/4" IMPACT WRENCH
£194.75
£190.93
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151590170 | 6151590060 | 06795 | SA6004 | 90204500 | 90203500 |
| Type | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | Air Impact Wrenche | |
| Capacity (L) | 425 | |||||
| Drive Size (Inch) | 1 | 1 | 1 | 3/4 | 1 | 1/4 |
| Free Speed | 3500 rpm | 3500 rpm | 7300rpm | |||
| Length (mm) | 25 | 13 | 300 | 55 | ||
| Max Pressure (psi) | 87 | |||||
| Torque Range (Nm) | 2440 | 2440 | 1900 | |||
| Weight (kg) | 10.4 | 10.5 | 09 | 6.8 | 079 | |
| Show More | ||||||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP0611-D28H delivers 2440 Nm maximum forward torque and 3790 Nm in reverse, operating at 6.3 bar working pressure.
A. The CP0611-D28H reaches 3500 rpm free speed with 55 l/s air consumption at 6.3 bar working pressure.
A. The CP0611-D28H measures 360 mm in length, weighs 10.4 kg, and features a 1 drive, delivering up to 3790 Nm maximum torque, at a free speed of 3500 rpm.
A. Sound pressure is 99 dB(A) - use ear and vibration PPE accordingly.
A. The CP0611-D28H uses a 1/2" NPT air inlet at 6.3 bar maximum dynamic working pressure.
A. The CP0611-D28H is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. The CP0611-D28H is engineered for professional industrial use - suited for heavy automotive and MRO fastening work.
A. The CP0611-D28H features an aluminium alloy body for durability and reduced tool weight.
A. The CP0611-D28H requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP0611-D28H consumes 55 l/s at load via 1/2" NPT inlet at 6.3 bar.
