Product Number: 83811
Variations

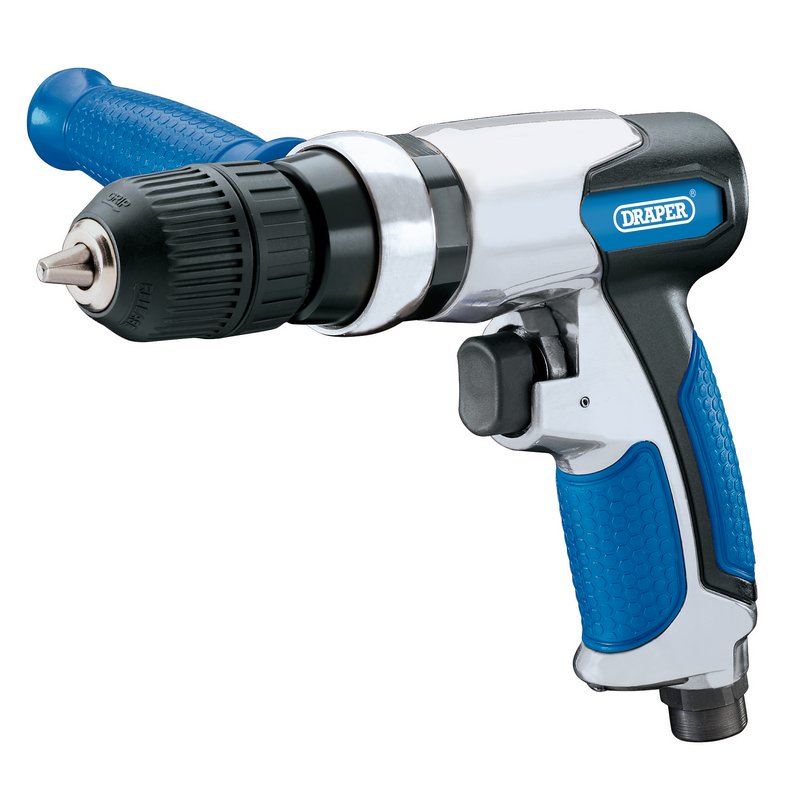

Workshop drilling tasks demand a reliable, responsive air drill capable of sustained operation without fatigue. The Draper 83811 Reversible Keyless Air Drill addresses this directly with a quick-change keyless chuck that eliminates the delay of conventional key-operated chucks, keeping workflows moving during intensive use.At its core, the drill is built around a heavy-duty, full caged gear system engineered for increased tool life. The ergonomic rubber protective grip and auxiliary handle work together to reduce operator fatigue during prolonged periods of use, maintaining control and comfort throughout the working session. A forward and reverse control feature adds precision when driving or withdrawing fixings, whilst the rotating 1/4" BSP air inlet and handle exhaust contribute to unrestricted, comfortable positioning at the tool. The 83811 operates at a free speed of 2,200rpm with an operating air pressure of 90psi (6.2bar). Average air consumption is 5.5cfm (155L/min), requiring a minimum hose size of 3/8" (10mm). The 10mm chuck accommodates a broad range of drill bits suited to general workshop and industrial drilling duties. Vibration level is measured at 1.0m/s², and the tool weighs 1.48kg, supporting extended use without excessive strain.Supplied as a single unit, the Draper 83811 Reversible Keyless Air Drill combines a robust internal mechanism with operator-focused ergonomics, making it a capable choice for professional workshop and industrial air tool applications.
Reversible air drill featuring a quick-change keyless chuck for fast bit changes. Manufactured with a heavy duty, full caged gear system for increased tool life attached to an ergonomic rubber protective grip and auxiliary handle, which provides comfort even when used for prolonged periods. Fitted with a forward and reverse control feature for added precision. Attached with a 1/4" BSP rotating air inlet and a handle exhaust.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 5.5cfm (155L/min) |
| Chuck Size | 10mm |
| Free Speed | 2,200 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Vibration Level | 1.0m/s2 |
| Weight | 1.48kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
00272 | Draper 272 TRIGGER NUT | 1 Unit |
£8.39
£8.23
|
Add |
83811ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 90205300 SLIM BODIED AIR DRILL (500rpm)
£260.49
£255.38
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 83961 | SA24 | 8941073012 | 8941008790 | 90205300 | 90205000 |
| Drive Size (Inch) | 1/4 | 1/4 | 1/4 | 3/8 | ||
| Free Speed | 2,200 rpm | 1800rpm | 2800 rpm | 2000 rpm | ||
| Length (mm) | 10 | 10 | 10 | 10 | 60 | |
| Maximum Pressure (bar) | 2 | 3 | 3 | |||
| Weight (kg) | 48 | 1.1 | 69 | 1.2 | 1.4 | |
A. The Draper 83811 operates at a free speed of 2,200rpm. The required operating air pressure is 90psi (6.2bar), with an average air consumption of 5.5cfm (155L/min).
A. The Draper 83811 is fitted with a 10mm quick-change keyless chuck, which allows for fast bit changes without the need for a separate chuck key.
A. The minimum hose size required is 3/8" (10mm). The drill connects via a 1/4" BSP rotating air inlet.
A. Yes. The drill is fitted with a forward and reverse control feature, which provides added precision when drilling or withdrawing fixings.
A. The drill is manufactured with an ergonomic rubber protective grip and auxiliary handle, designed to maintain comfort even when used for extended periods.
A. The drill weighs 1.48kg. Its vibration level is rated at 1.0m/s².
