Product Number: 83961

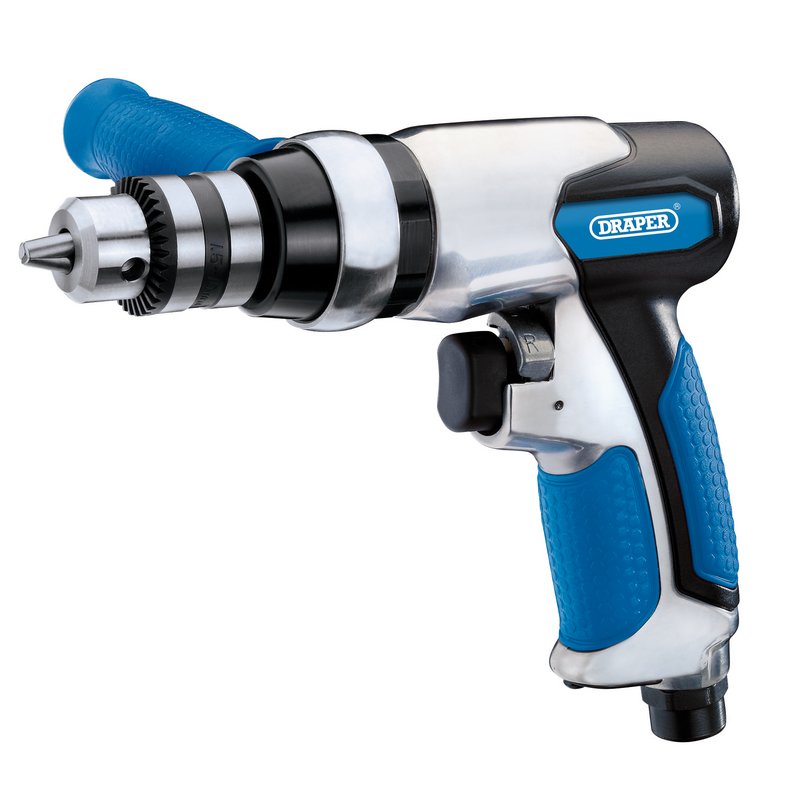

Drilling into materials overhead, at awkward angles, or in confined spaces demands a tool that combines control with endurance. The Draper 83961 Reversible Air Drill is built for exactly those conditions, delivering sustained performance through a full caged gear system that distributes load evenly across the drivetrain for extended tool life. The drill is fitted with an ergonomic rubber protective grip and an auxiliary handle, ensuring comfort during prolonged use and reducing operator fatigue on demanding jobs. A forward and reverse control feature enables precise positioning and fastener removal without repositioning the tool, while the 10mm heavy-duty chuck accommodates a wide range of drill bits for general workshop and industrial drilling tasks.Pneumatic connection is made via a 1/4" BSP rotating air inlet, which prevents hose twisting during operation, and exhaust air is directed through the handle to keep debris away from the work area. The drill operates at a free speed of 2,200 rpm at the recommended operating pressure of 90 psi (6.2 bar), with an average air consumption of 5.5 cfm (155 L/min). A minimum hose size of 3/8" (10 mm) is required to maintain adequate airflow.Further specifications include a vibration level of 1.0 m/s² and a tool weight of 1.48 kg, keeping the assembly lightweight for single-handed or supported two-handed use.
Reversible air drill featuring heavy duty chuck. Manufactured with a full caged gear system for increased tool life attached to an ergonomic rubber protective grip and auxiliary handle, which provides comfort even when used for prolonged periods. Fitted with a forward and reverse control feature for added precision. Attached with a 1/4" BSP rotating air inlet and a handle exhaust.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 5.5cfm (155L/min) |
| Chuck Size | 10mm |
| Free Speed | 2,200 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Vibration Level | 1.0m/s2 |
| Weight | 1.48kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 83811 | SA24 | 8941073012 | 8941008790 | 90205000 |
| Free Speed(RPM) | 2200 | 1800 | 2800 | 2000 | |
| Air Consumption(CFM) | 5.5 | 4 | |||
| Chuck Size(mm) | 10 | 10 | 6.4 | 10 | |
| Chuck Type | Keyless | Keyed | |||
| Reversible Type | No | No | Yes | Yes | No |
A. The Draper 83961 is fitted with a heavy-duty 10 mm chuck, suitable for a wide range of standard drill bits.
A. The drill operates at a recommended air pressure of 90 psi (6.2 bar), with an average air consumption of 5.5 cfm (155 L/min).
A. The free speed is 2,200 rpm at the specified operating pressure of 90 psi (6.2 bar).
A. A minimum hose size of 3/8" (10 mm) is required to ensure adequate airflow to the tool.
A. Yes. The drill is fitted with a forward and reverse control feature to allow precise drilling and fastener removal.
A. The 1/4" BSP rotating air inlet allows the connected air hose to turn freely with the tool, preventing hose twisting and tangling during use.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
