Product Number: 6151580310

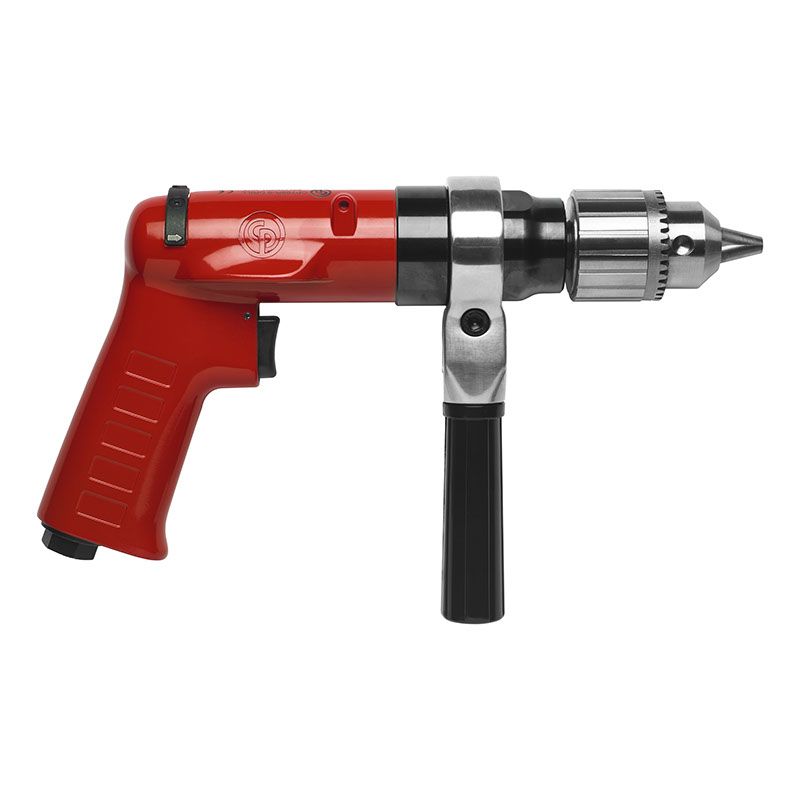

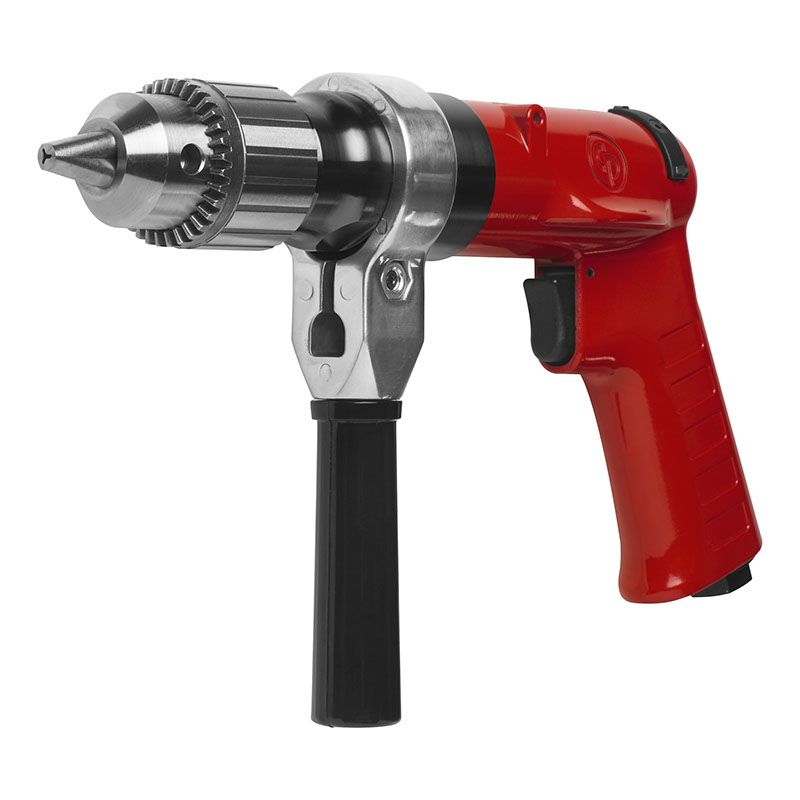

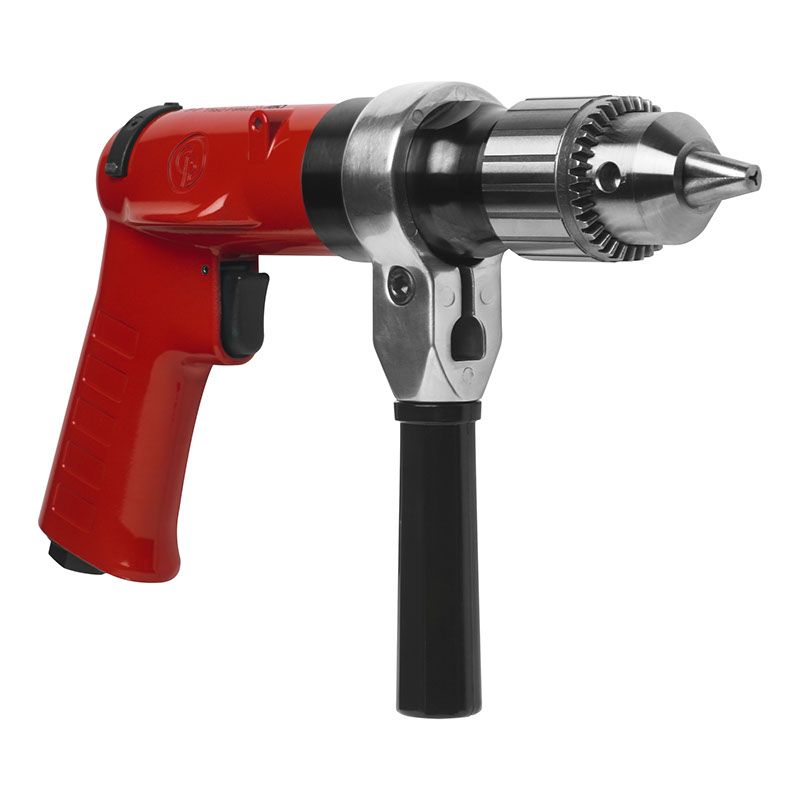

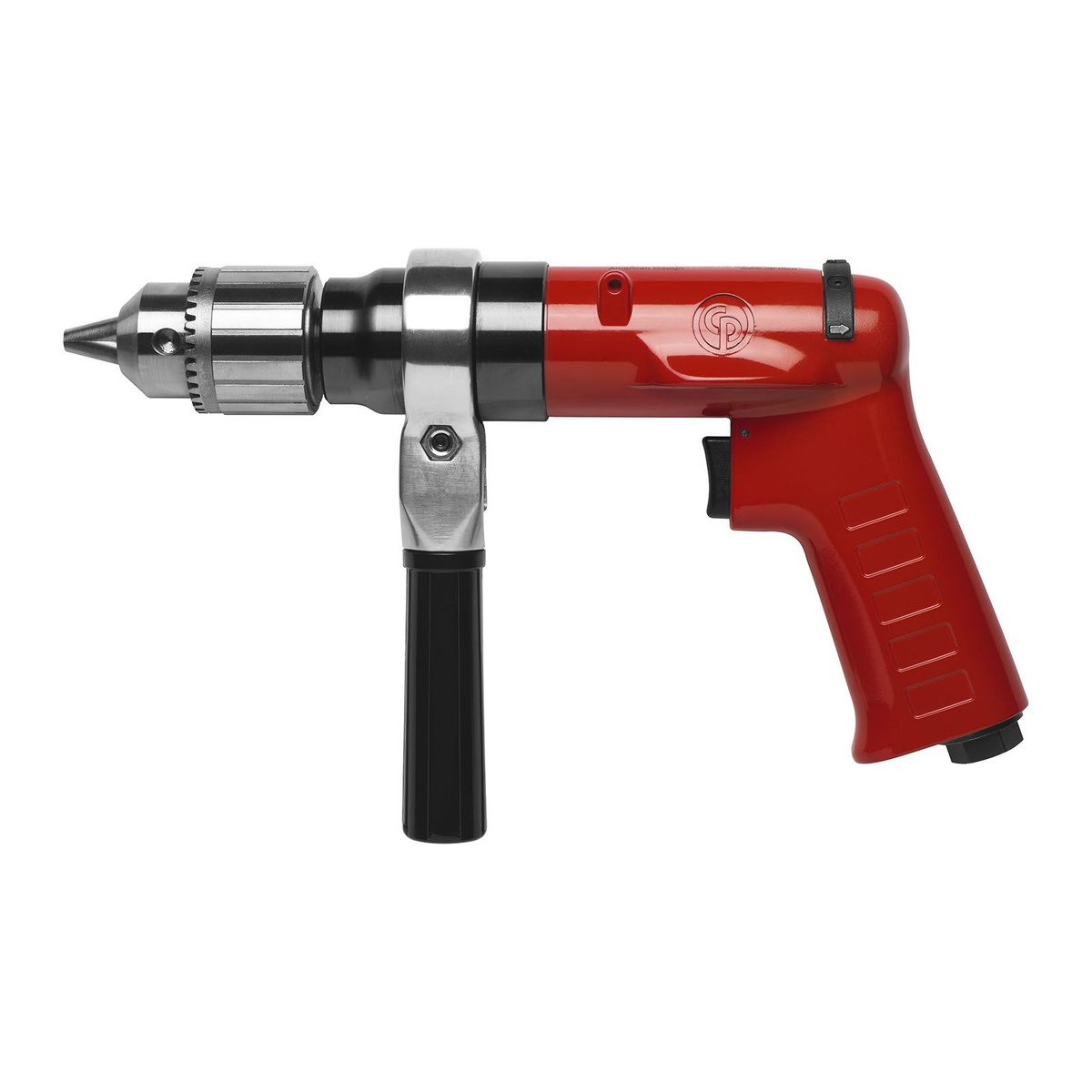

The Chicago Pneumatic CP1114R05 delivers the precision and durability professionals demand from a reliable pistol grip reversible air drill, making it an essential addition to any production or maintenance toolkit. Built with a lightweight aluminium body, this chicago pneumatic air drill is engineered to reduce operator fatigue during extended use without sacrificing the robust build quality the brand is known for. Powered by compressed air, the CP1114R05 develops a solid 25.2 Nm of torque, giving users the driving force needed to tackle a wide range of drilling and fastening tasks with confidence. The 1/2 inch (13 mm) keyed chuck accommodates a broad selection of drill bits and accessories, ensuring versatility across different materials and applications. The pistol-style handle provides a natural, ergonomic grip that supports both accuracy and control, particularly valuable during repetitive operations. As a trusted cp air drill option, this model is designed to perform consistently in demanding industrial environments. Its reversible functionality adds further flexibility, allowing operators to back out fasteners or free a stuck bit with ease. The aluminium construction keeps the overall weight low while maintaining structural integrity under continuous use. The Chicago Pneumatic CP1114R05 is ideally suited for assembly lines, fabrication workshops, and general maintenance applications where a dependable cp 1 2 air drill is required to handle high-volume drilling tasks efficiently and reliably day after day.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Chuck max capacity (in) | 1/2 |
|---|---|
| Chuck max capacity (mm) | 13 |
| Chuck type | Keyed |
| Handle type | Pistol |
| Main Material type | Aluminium |
| Reversible | Yes |
| Starting system | Trigger |
| Trigger type | Progressive |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 1.1 m/s² |
| Air consumption at load | 12 l/s |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Max power | 410 W |
| Stall torque | 25.2 Nm |
| Free Speed | 500 rpm |
| Air consumption at free speed | 15 l/s |
| Length (L) | 215 mm |
| Weight | 1.3 kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 14258 Composite Reversible Keyless Air Drill, 10mm
£102.26
£100.25
2% OFF
Free delivery in UK Mainland
|
Sealey SA621 Premier Reversible Air Drill 13mm Keyless Chuck Composite
£154.93
£151.83
2% OFF
Free delivery in UK Mainland
|
|||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 90205000 | 14258 | 83811 | SA26 | GSA231 | SA241 | SA27 | SA621 | GSA232 | SA622 | SA620 | SA24 | 8941008790 | 8941073013 | 8941008870 |
| Type | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill | Air Drill |
| Drive Size (Inch) | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 3/8 | 1/4 | 3/8 | |
| Free Speed | 1800 rpm | 2,200 rpm | 1500rpm | 15000rpm | 1800rpm | 700rpm | 800rpm | 2500rpm | 2500rpm | 1800rpm | 1800rpm | 2000 rpm | 3300 rpm | 2100 rpm | |
| Length (mm) | 60 | 10 | 10 | 10 | 10 | 10 | 13 | 13 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Maximum Pressure (bar) | 2 | 2 | 3 | 3 | 3 | ||||||||||
| Weight (kg) | 1.4 | 1.1 | 48 | 1.1 | 0.7 | 1.1 | 1.4 | 1.4 | 95 | 1 | 15 | 1.1 | 1.2 | 64 | 1.1 |
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP1114R05 accepts up to 1/2" diameter drill bits with a Keyed chuck mechanism.
A. Yes - the CP1114R05 is reversible for tapping, screw extraction, and left-hand drilling operations.
A. The CP1114R05 uses a pistol handle configuration weighing 1.3 kg, optimised for general pistol-grip drilling operations.
A. Sound pressure is 82 dB(A) - comply with local HAV and noise exposure regulations during use.
A. The CP1114R05 uses a 1/4" NPT air inlet at 6.3 bar maximum dynamic working pressure.
A. The CP1114R05 key technical specifications include a free speed of 500 rpm, max power of 410 W, weight of 1.3 kg, length of 215 mm, and max working pressure of 6.3 bar.
A. The CP1114R05 is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. Refer to the CP1114R05 product page on partsformachines.com for the full list of comparable models and alternatives.
A. The CP1114R05 is engineered for professional industrial use - well-suited for production drilling and assembly applications.
A. The CP1114R05 consumes 12 l/s at load via 1/4" NPT inlet at 6.3 bar.
