Product Number: 83769

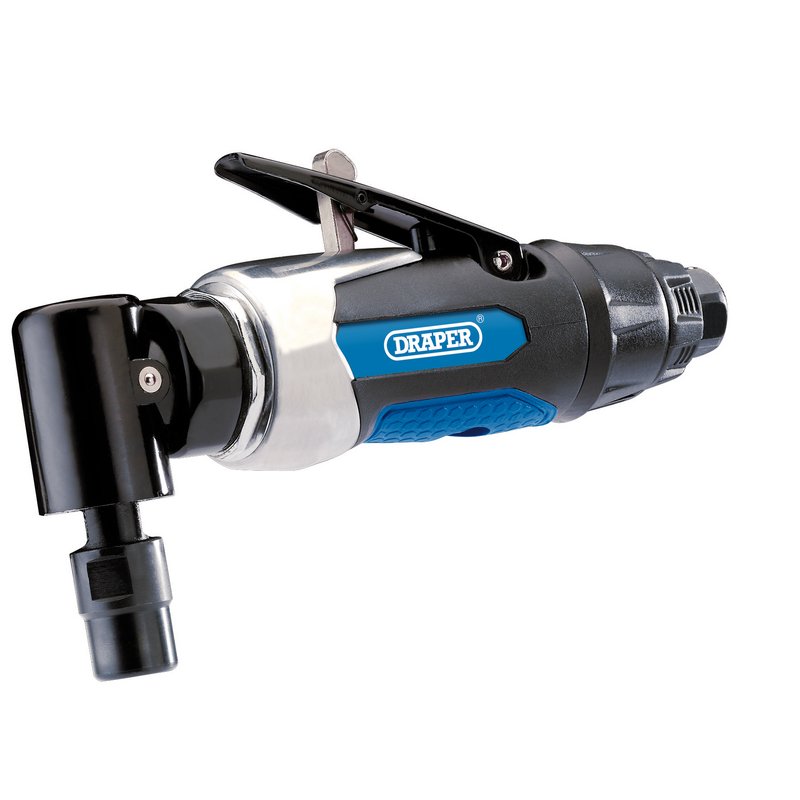

Achieving consistent results when grinding and polishing metal components demands a tool that combines manoeuvrability with precise speed control. The Draper 83769 90° Compact Air Die Grinder addresses this through a lightweight aluminium housing paired with an ergonomic soft grip handle, delivering sustained comfort during prolonged use and assisting in prevention of the cold-sink effect.A lever block trigger provides increased safety during operation, whilst the adjustable 4-speed rear regulator gives the operator full control over working speed. The 1/4" BSP airline connector interfaces with a 360° rotating air inlet, actively preventing air-lines from kinking during use — a practical advantage in busy workshop environments. The grinder accepts a 6mm collet and achieves a free speed of 20,000 rpm at an operating air pressure of 90 psi (6.2 bar). Average air consumption is 4.0 cfm (113 L/min) and a minimum hose diameter of 3/8" (10 mm) is required. Vibration level is rated at 2.9 m/s² and the unit weighs just 0.53 kg, making it well suited to overhead and confined-space applications.Features include low noise and low vibration characteristics, a rear exhaust configuration, and variable speed control via the rear regulator. Supplied as one 90° Compact Air Die Grinder with 6mm collet.
Die grinder perfectly designed for grinding and polishing metal components. Manufactured from lightweight aluminium housing attached to an ergonomic soft grip handle, which provides comfort even when used for prolonged periods. Fitted with a lever block trigger for increased safety and an adjustable 4-speed rear regulator. Attached with a 1/4" BSP airline connector which connects with the 360° rotating air inlet, helping prevent air-lines from kinking when in use. The ergonomic design and lightweight housing assist in prevention of the cold-sink effect.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 4.0cfm (113L/min) |
| Collet Size | 6mm |
| Free Speed | 20,000 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Vibration Level | 2.9m/s2 |
| Weight | 0.53kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
83769ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey GSA672 Generation Series Long Reach Air Die Grinder
£63.12
£61.88
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 902140SP Micro Die Grinder & Bit Set
£225.29
£220.87
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3109-19ES, 1/4"(6mm) Straight Air Die Grinder
£844.37
£819.78
3% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 65130 | GSA672 | 902140SP | 90214000 | 6151602080 |
| Capacity (L) | 66 | ||||
| Free Speed | 20000rpm | 19000 rpm | |||
| Length (mm) | 240 | 65 | 363 | ||
| Maximum Pressure (bar) | 3 | ||||
| Weight (kg) | 0.6 | 0.5 | 1.3 | ||
A. The Draper 83769 accepts a 6 mm collet, making it compatible with standard 6 mm shank grinding and polishing accessories.
A. The free speed is 20,000 rpm at an operating air pressure of 90 psi (6.2 bar).
A. The grinder is fitted with a 1/4" BSP airline connector and requires a minimum hose size of 3/8" (10 mm). The connector interfaces with a 360° rotating air inlet to help prevent air-lines from kinking during use.
A. Average air consumption is 4.0 cfm (113 L/min) at the stated operating pressure of 90 psi (6.2 bar).
A. The Draper 83769 features an adjustable 4-speed rear regulator that allows the operator to select the appropriate working speed for the task.
A. The grinder is constructed from lightweight aluminium housing and fitted with an ergonomic soft grip handle. Together, these features assist in prevention of the cold-sink effect and promote comfort during prolonged use. The unit weighs 0.53 kg.
