Product Number: 6151604080

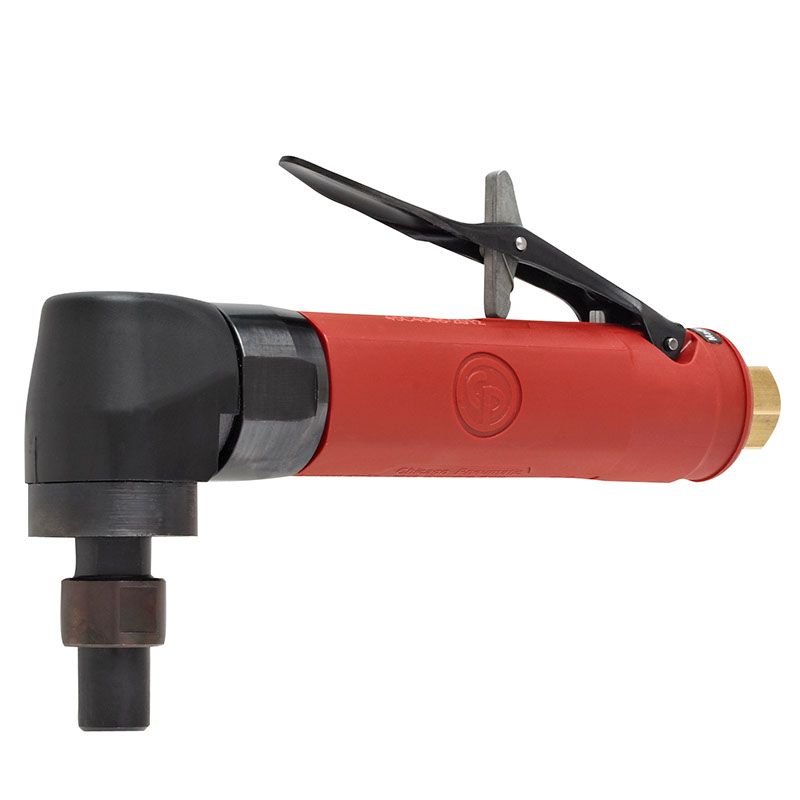

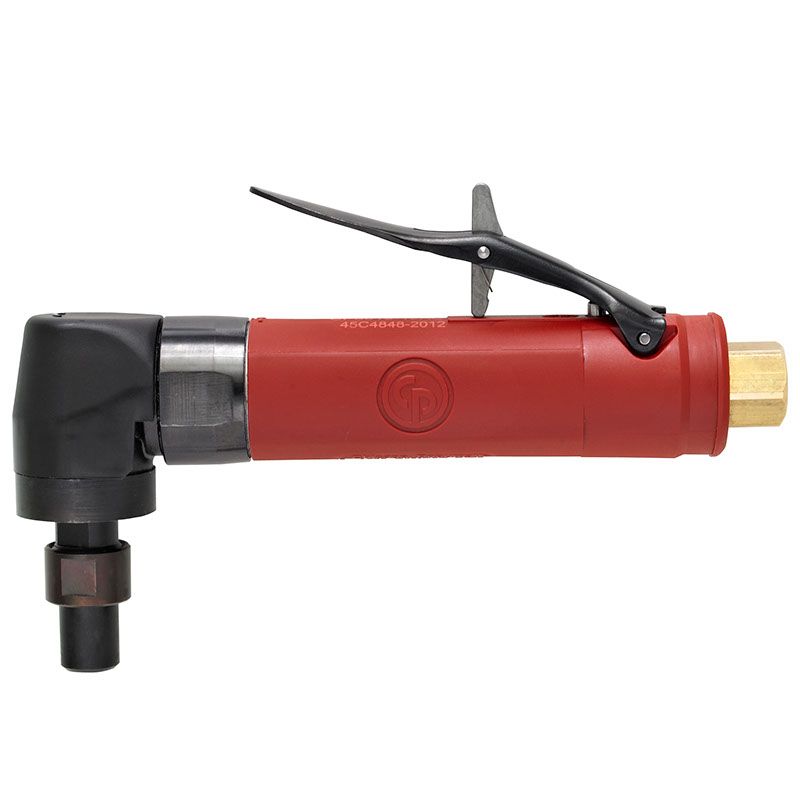

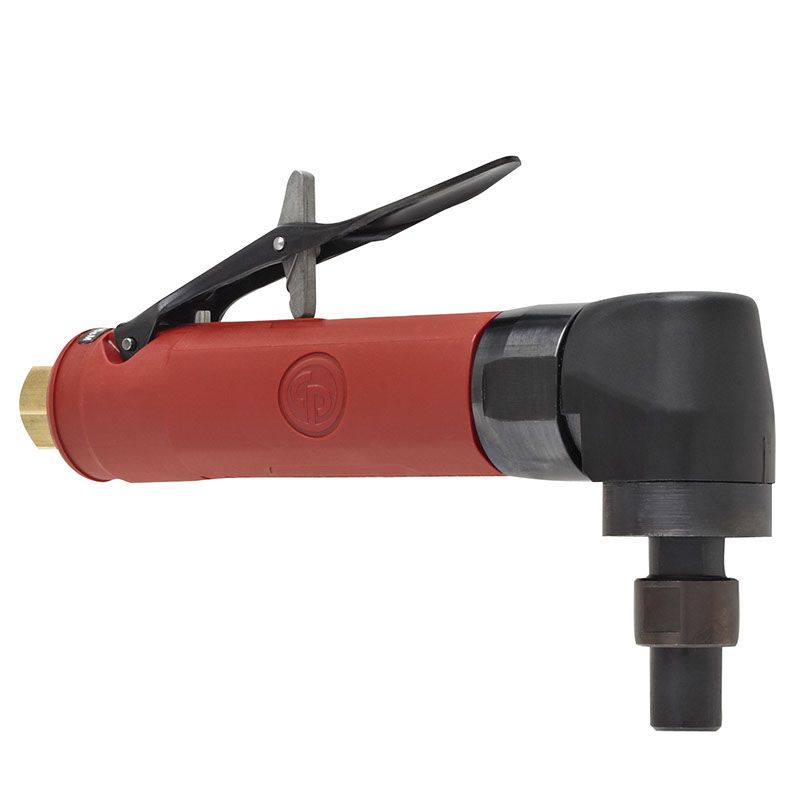

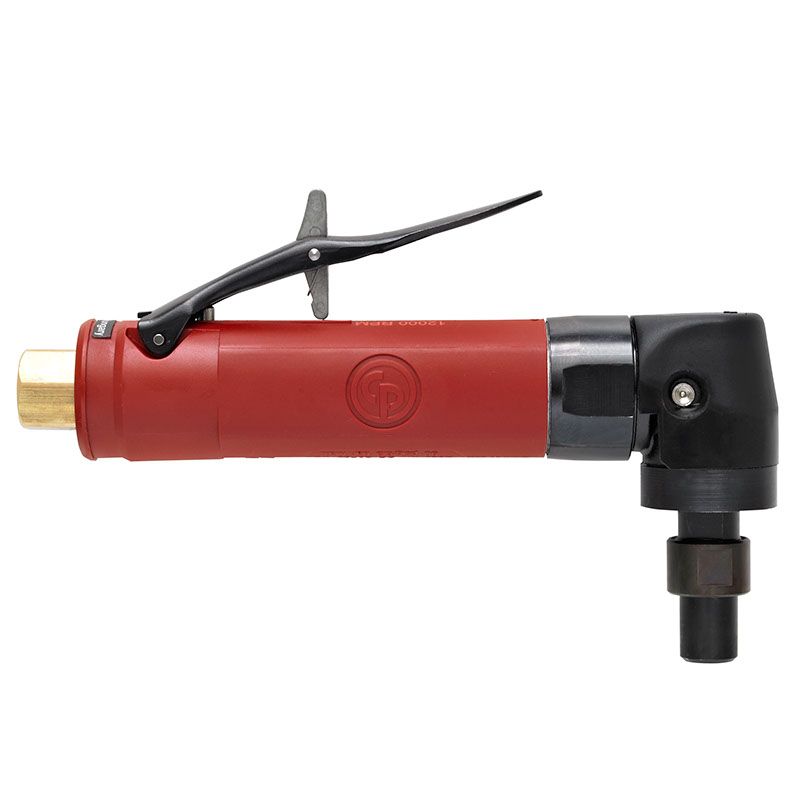

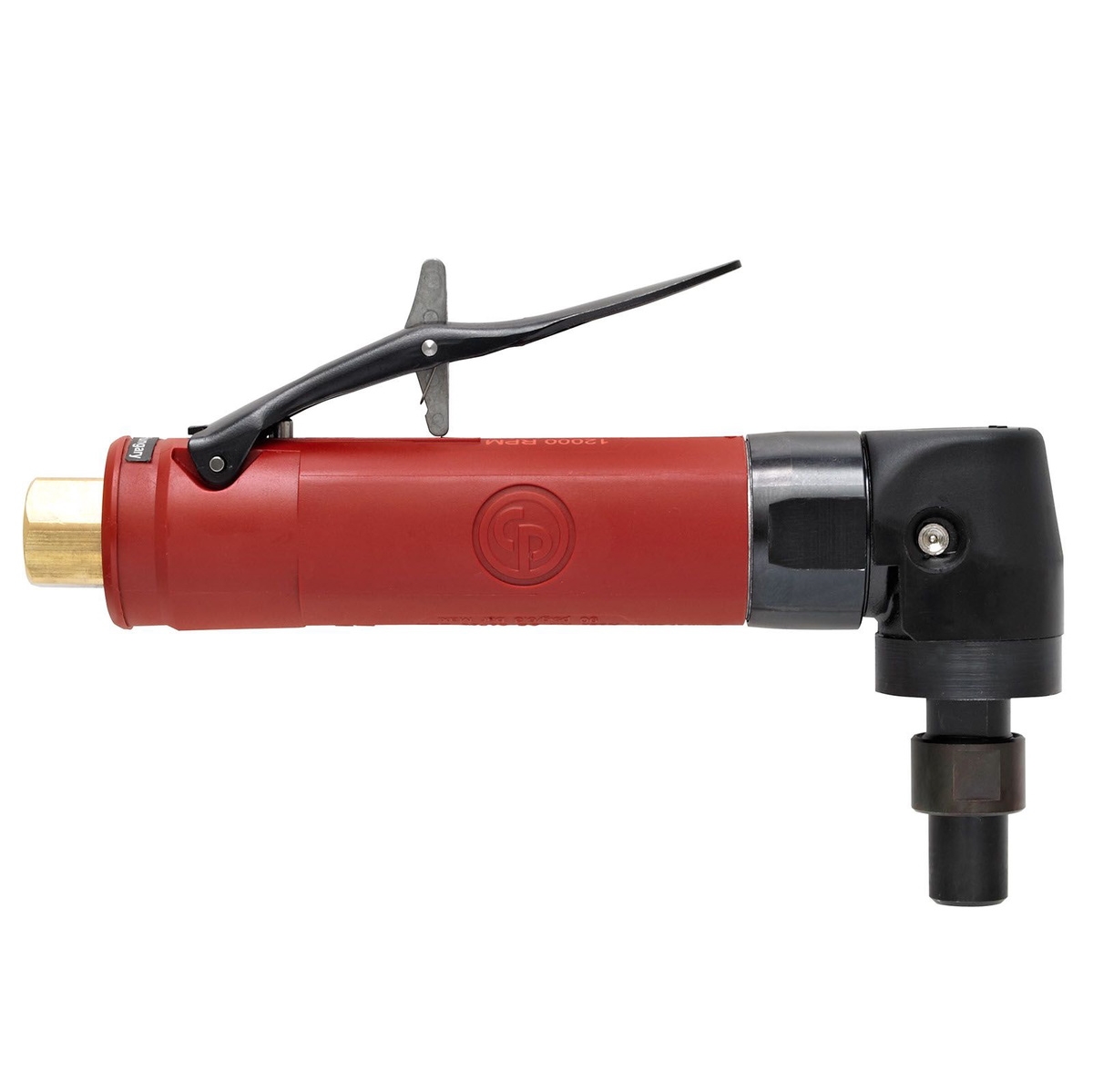

The Chicago Pneumatic CP3019-20AC is a precision-engineered 1/4'' angle die grinder built for professionals who demand reliable performance in tight spaces and demanding environments. Delivering 375 W of maximum power at a blistering 20,000 RPM free speed, this compact pneumatic die grinder handles grinding, deburring, and surface finishing with exceptional control and efficiency. Weighing just 0.51 kg and measuring a slim 216 mm in length, the CP3019-20AC is one of the most ergonomically balanced air die grinders in its class. Its lightweight aluminium construction reduces operator fatigue during extended use, making it a go-to choice for technicians working on precision fabrication, automotive bodywork, and metal finishing. The 6 mm collet accepts a wide range of rotary burrs, mounted points, and abrasive accessories, giving users tremendous versatility across applications. Air consumption at free speed sits at 5.3 l/s, reflecting the efficient internal design that Chicago Pneumatic is known for across its range of cp die grinders. The smooth throttle response and consistent torque output ensure accurate material removal without chatter or vibration that could compromise surface quality. Whether used in aerospace maintenance, die and mould work, or general metal fabrication, the Chicago Pneumatic CP3019-20AC delivers the power-to-weight ratio and durability that professionals depend on when precision and productivity matter most.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Length (L) | 216 mm |
|---|---|
| Weight | 0.51 kg |
| Max power | 375 W |
| Free Speed | 20000 rpm |
| Air consumption at free speed | 5.3 l/s |
| Air consumption at load | 9.4 l/s |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.31 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Uncertainty vibration-K | 3.4 m/s² |
| Vibration | 4.3 m/s² |
| Angle Type | 90° |
| Collet max capacity | 1/4 (6.35mm) |
| Collet/Collet holder/Collet nut type | Erickson series 300 type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP3109-19, 1/4"(6mm) Straight Air Die Grinder
£734.94
£713.53
3% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 902140SP Micro Die Grinder & Bit Set
£225.29
£220.87
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151600020 | GSA672 | 65130 | 902140SP | APP700SET | 90214000 |
| Type | Air Die Grinder | Air Die Grinder | Air Die Grinder | Air Die Grinder | Air Die Grinder | |
| Capacity (L) | 6 | |||||
| Free Speed | 19000 rpm | 20000rpm | ||||
| Length (mm) | 222 | 240 | 65 | 230 | ||
| Maximum Pressure (bar) | 3 | |||||
| Weight (kg) | 0.9 | 0.6 | 0.5 | 0.5 | ||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP3019-20AC runs at 20000 rpm free speed with 375 W maximum power output, suited to intensive grinding and deburring.
A. The CP3019-20AC accepts a 1/4 (6.35mm) collet - compatible with standard 1/4" carbide burrs, mounted points, and abrasives.
A. The CP3019-20AC is a straight die grinder weighing 0.51 kg at 216 mm length, suited to straight access grinding applications.
A. The CP3019-20AC has a sound pressure of 82 dB(A) - hearing and vibration PPE must be worn during operation.
A. The CP3019-20AC uses a ball governor for controlled overspeed protection during heavy grinding operations.
A. The CP3019-20AC is engineered for professional industrial use - balanced and easy to handle for sustained grinding use.
A. The CP3019-20AC features an aluminium alloy body for durability and reduced tool weight.
A. The CP3019-20AC requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP3019-20AC consumes 5.3 l/s air at load, requiring a 1/4" NPT inlet at 6.3 bar max working pressure.
