Product Number: 6151604060

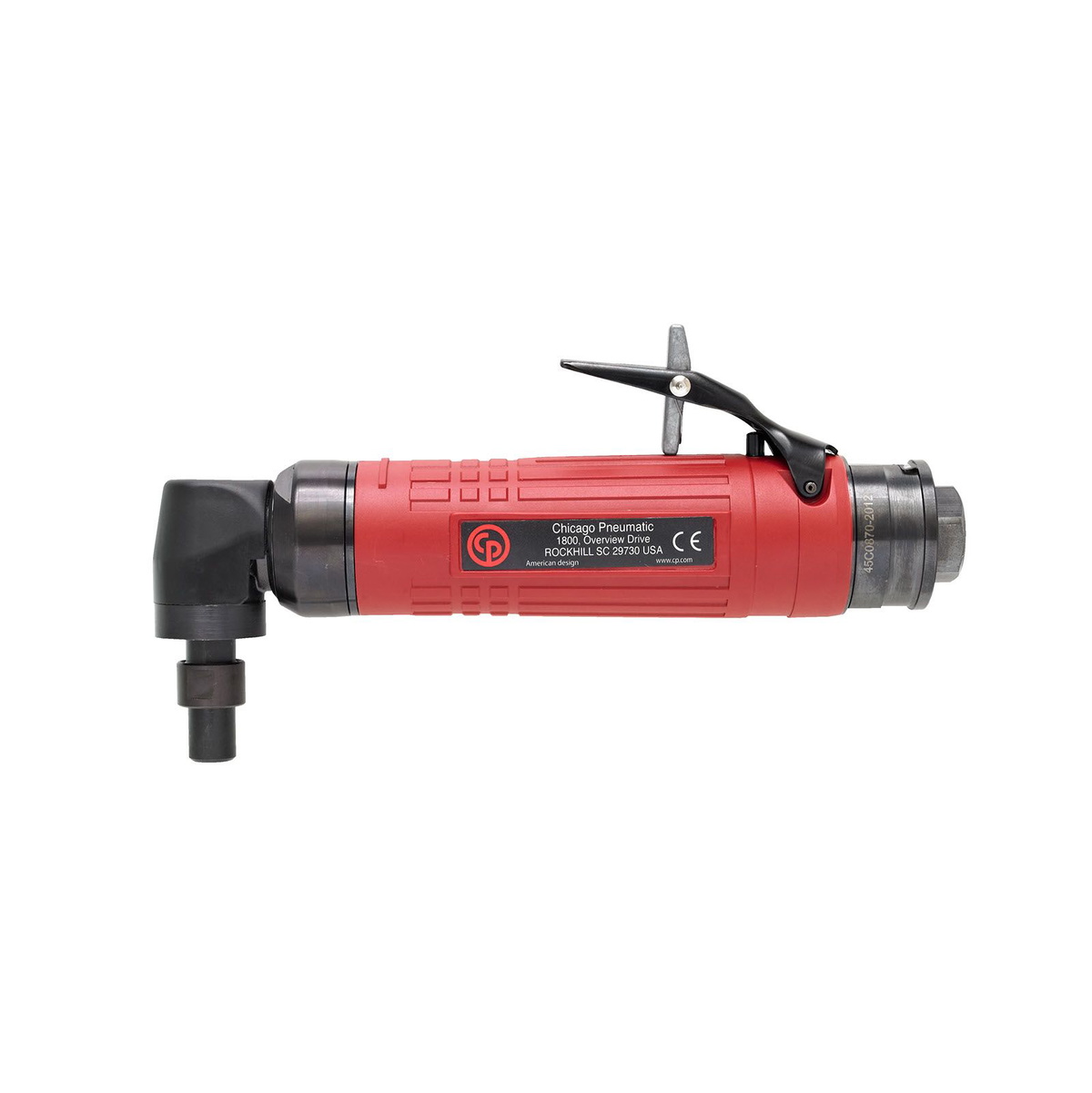

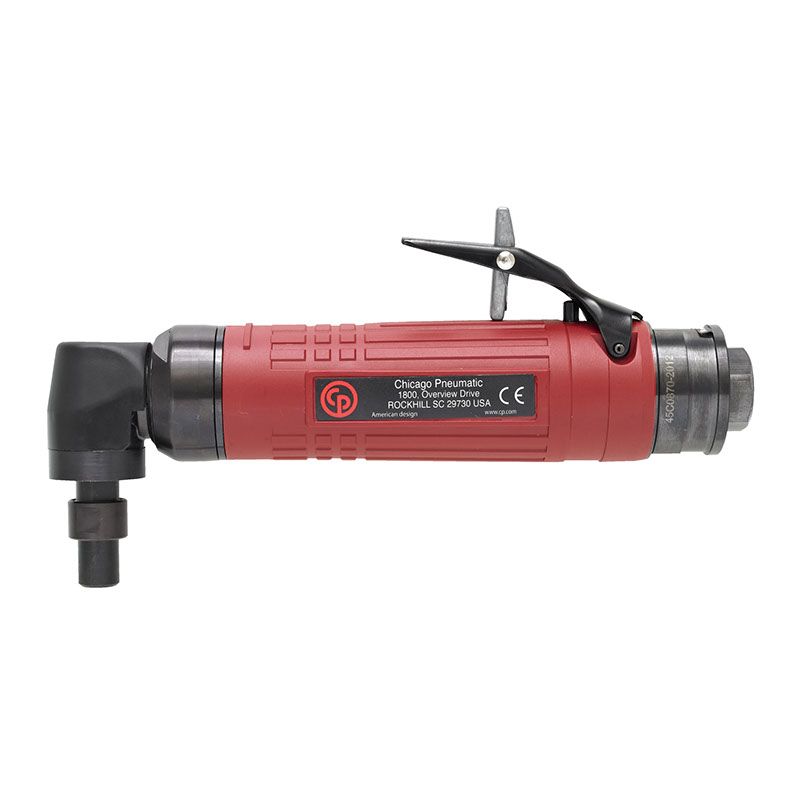

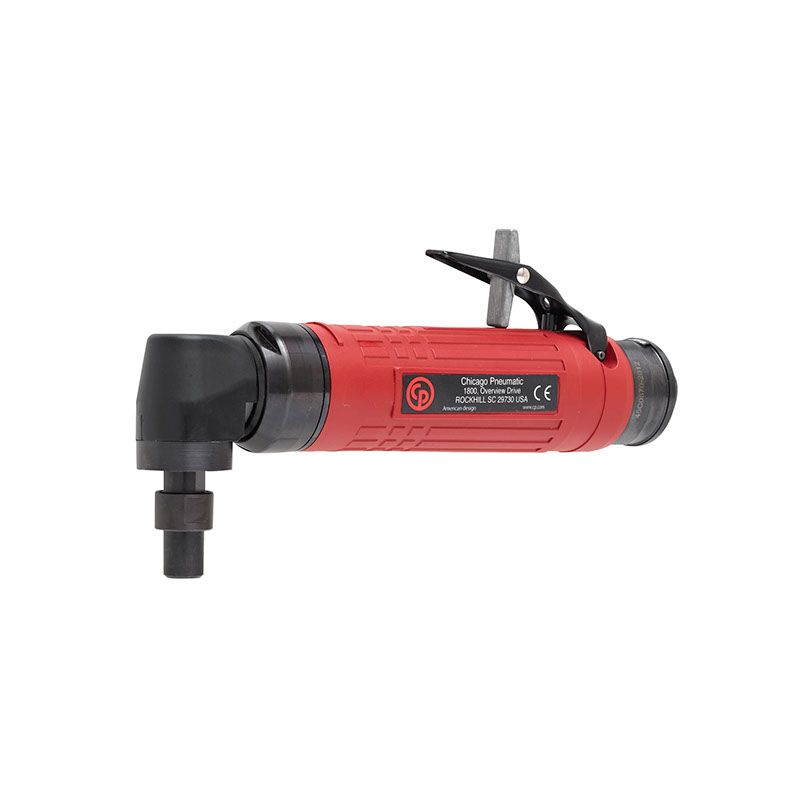

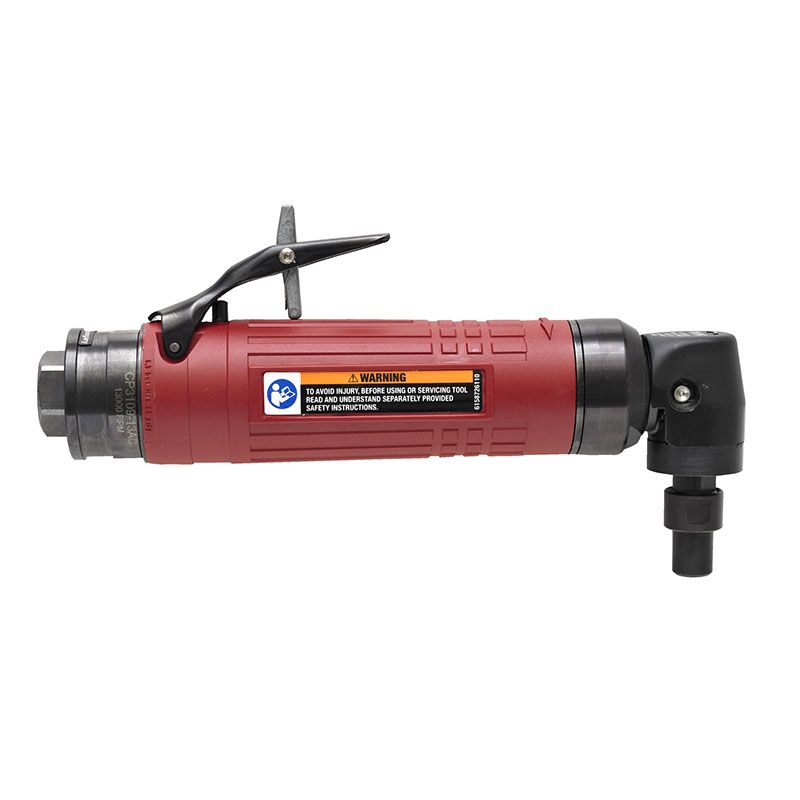

The Chicago Pneumatic CP3109-13AC is a precision-engineered 1/4-inch angle die grinder built for professionals who demand consistent performance in tight, hard-to-reach workspaces. Delivering a robust 600 W of maximum power at a free speed of 13,000 RPM, this Chicago Pneumatic die grinder tackles metal grinding, deburring, surface finishing, and weld preparation with exceptional efficiency. Its compact 216 mm body length and lightweight 1.1 kg construction reduce operator fatigue during extended use, making it one of the more ergonomically considered air die grinders in its class. Engineered for reliability on the production floor and in the workshop, this pneumatic die grinder runs at an air consumption rate of 10 l/s at free speed, ensuring it performs consistently when connected to a standard industrial air supply. The 6 mm collet accommodates a wide range of rotary accessories, giving technicians the flexibility to switch between abrasive tools without downtime. Its angled head design provides enhanced access to confined areas where straight tools simply cannot reach, setting it apart from a conventional pencil die grinder configuration. The CP3109-13AC is ideally suited for automotive bodywork, aerospace fabrication, metal fabrication workshops, and general maintenance environments where a dependable cp die grinder is required to deliver precise material removal and smooth surface preparation day after day.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Length (L) | 216 mm |
|---|---|
| Weight | 1.1 kg |
| Max power | 600 W |
| Free Speed | 13000 rpm |
| Air consumption at free speed | 10 l/s |
| Air consumption at load | 15 l/s |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 96 dB(A) |
| Sound Pressure | 85 dB(A) |
| Uncertainty vibration-K | 1.4 m/s² |
| Vibration | 3.7 m/s² |
| Angle Type | Straight |
| Collet max capacity | 1/4 (6.35mm) |
| Collet/Collet holder/Collet nut type | Erickson series 300 type |
| Exhaust | Rear |
| Governor type | Ball |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP3109-24ES, 1/4"(6mm) Straight Air Die Grinder
£844.37
£819.78
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3109-24, 1/4"(6mm) Straight Air Die Grinder
£734.94
£713.53
3% OFF
Free delivery in UK Mainland
|
Sealey GSA672 Generation Series Long Reach Air Die Grinder
£63.12
£61.88
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 902140SP Micro Die Grinder & Bit Set
£225.29
£220.87
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151602090 | 6151600030 | GSA672 | 65130 | 902140SP | APP700SET |
| Capacity (L) | 10 | 10 | ||||
| Free Speed | 24000 rpm | 24000 rpm | 20000rpm | |||
| Length (mm) | 361 | 222 | 240 | 65 | 230 | |
| Maximum Pressure (bar) | 3 | 3 | ||||
| Weight (kg) | 1.3 | 0.9 | 0.6 | 0.5 | 0.5 | |
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP3109-13AC runs at 13000 rpm free speed with 600 W maximum power output, suited to intensive grinding and deburring.
A. The CP3109-13AC accepts a 1/4 (6.35mm) collet - compatible with standard 1/4" carbide burrs, mounted points, and abrasives.
A. The CP3109-13AC is a straight die grinder weighing 1.1 kg at 216 mm length, suited to straight access grinding applications.
A. The CP3109-13AC has a sound pressure of 85 dB(A) - hearing and vibration PPE must be worn during operation.
A. The CP3109-13AC uses a ball governor for controlled overspeed protection during heavy grinding operations.
A. The CP3109-13AC is engineered for professional industrial use - balanced and easy to handle for sustained grinding use.
A. The CP3109-13AC features an aluminium alloy body for durability and reduced tool weight.
A. The CP3109-13AC requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP3109-13AC consumes 10 l/s air at load, requiring a 3/8" BSP inlet at 6.3 bar max working pressure.
