Product Number: 6151607850

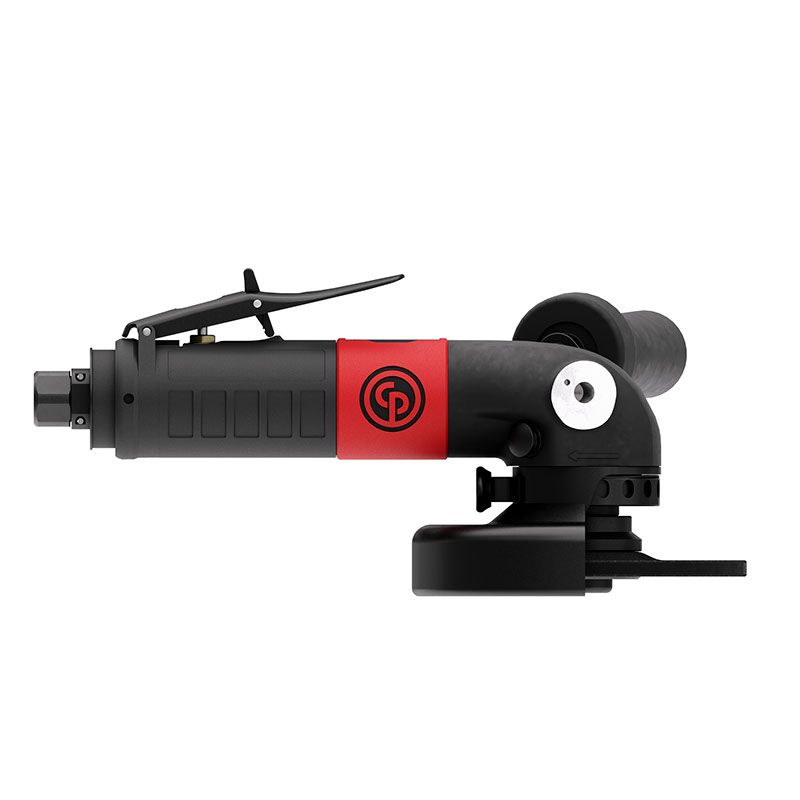

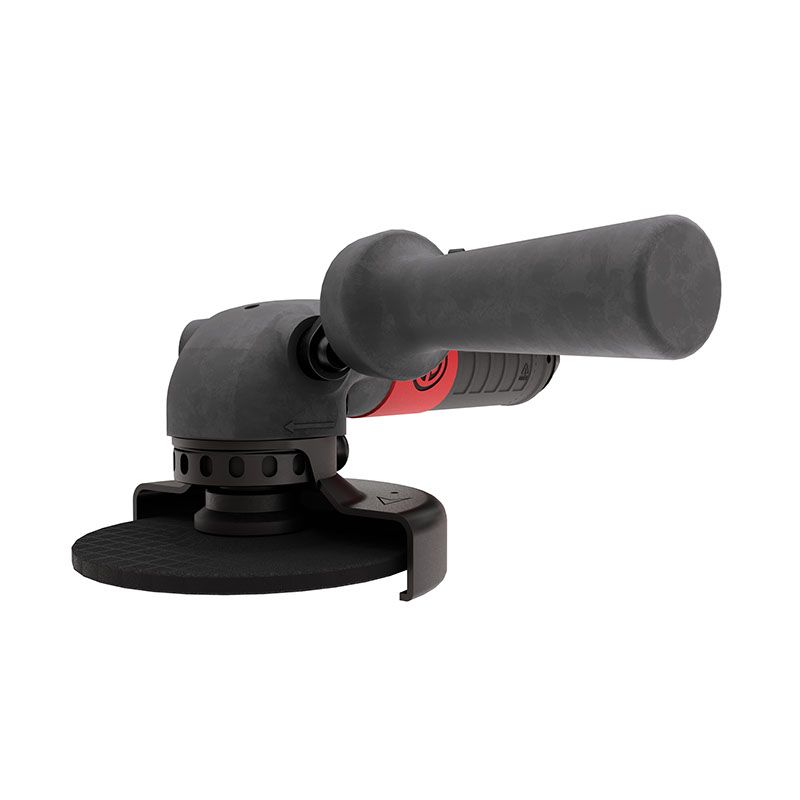

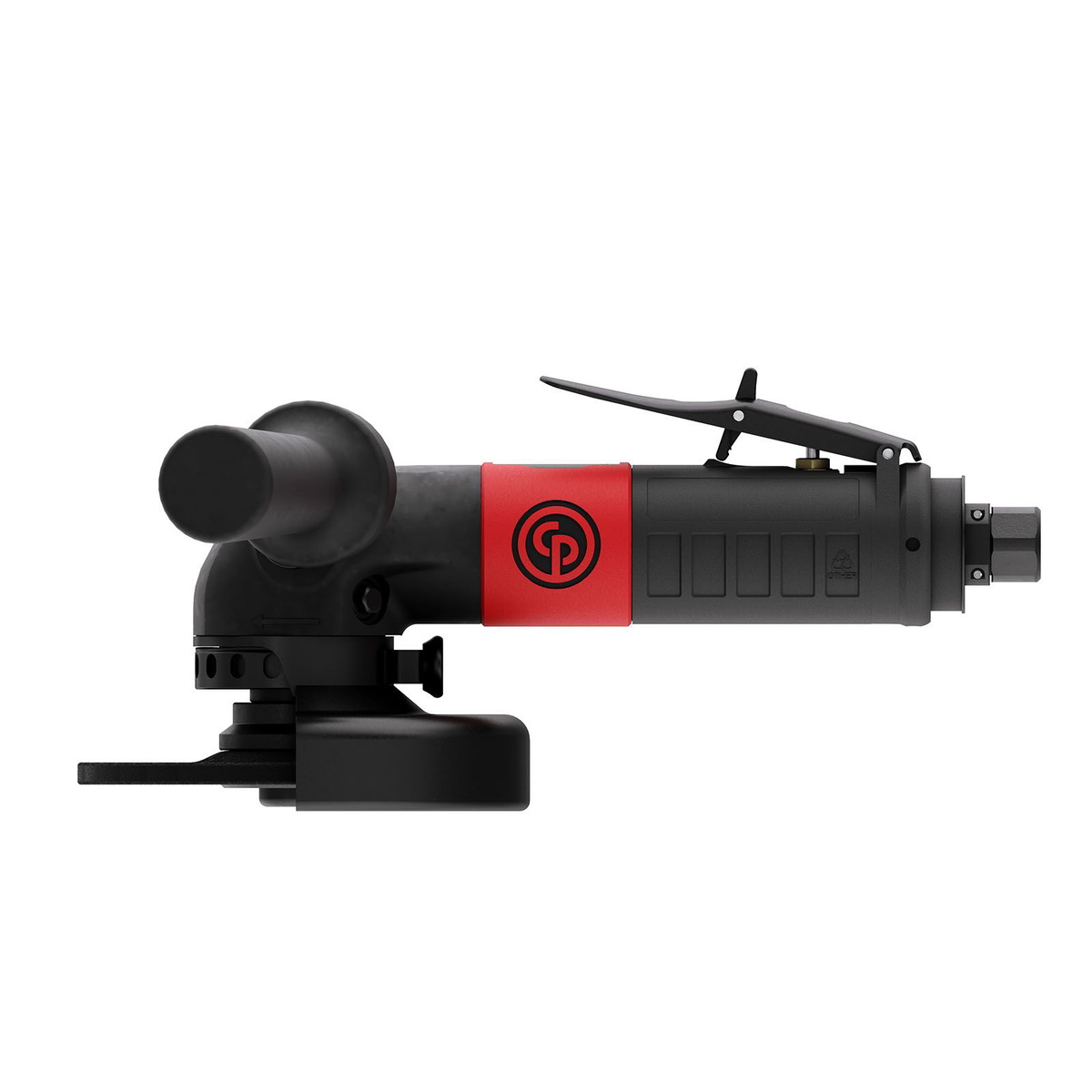

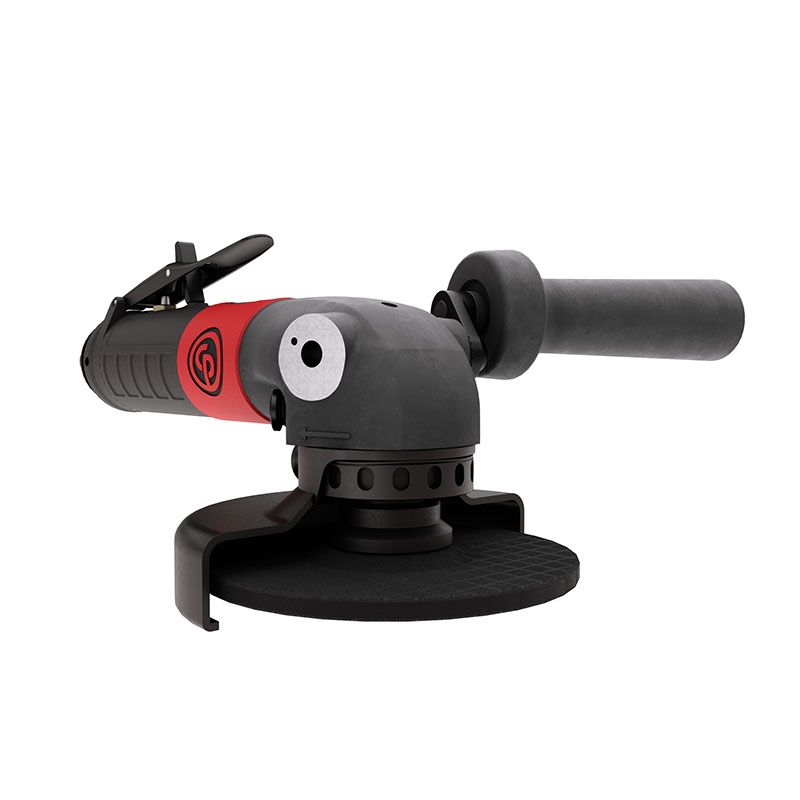

The Chicago Pneumatic CP3650-120AB51800W delivers the raw cutting and grinding power that demanding fabrication and metalworking environments require. Engineered as a high-performance 5-inch industrial air angle grinder, this robust pneumatic tool combines a formidable 1,800W power output with a free speed of 12,000 RPM, giving operators the aggressive material removal rates needed to tackle heavy-duty weld dressing, surface preparation, and stock removal with confidence. Designed with versatility at its core, this chicago pneumatic air grinder features a 360-degree guard rotation, allowing the operator to quickly reposition the protective guard to suit the task at hand without slowing down production. Air consumption at free speed registers at 17.6 Nl/s, reflecting the efficient engineering Chicago Pneumatic has built into its professional-grade lineup. The tool's durable construction is built to withstand the rigours of continuous industrial use, making it a reliable choice for workshops, shipyards, and steel fabrication facilities where downtime is simply not an option. As a capable cp die grinder and angle grinder solution, the CP3650-120AB51800W accepts standard 125mm grinding wheels and cut-off discs, making it immediately compatible with existing consumable inventories. Whether operators are tackling structural steelwork, pipe fabrication, or heavy deburring operations, this chicago pneumatic grinder provides the sustained power delivery and ergonomic control needed to maintain productivity across long working shifts.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Free Speed | 12000 rpm |
|---|---|
| Air consumption at free speed (Normo) | 17.6 1/sNl |
| Auto balancer | No |
| Guard max rotation | 360 ° |
| Guard positions | 15 |
| Main Material type | Aluminium, Composite over-sleeve |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Pull and Turn |
| Spindle lock | Yes |
| Starting system | Safety lever |
| Swiveling guard | Keyless |
| Wheel/Disc diameter (in) | 5 |
| Wheel/Disc diameter (mm) | 125 |
| Sound Power | 101 dB(A) |
| Sound Pressure | 90 dB(A) |
| Uncertainty vibration-K | 2.5 m/s² |
| Vibration | 7.4 m/s² |
| Air consumption at load (Normo) | 29.8 1/sNl |
| Air inlet thread size (in) | 3/8 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.5 in |
| Min hose diam (5 m hose length) | 13 mm |
| Height (H) | 102 mm |
| Length (L) | 247.5 mm |
| Width (W) | 140 mm |
| Side to Center | 34 mm |
| Weight | 2.2 kg |
| Max power | 1800 W |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP3650-120AA5, 125mm Air Angle Grinder
£1,313.26
£1,275.01
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3650-120AH5V, 125mm Air Angle Grinder
£1,363.77
£1,324.05
3% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151607860 | 6151607880 | 83953 | SA153 | 70832 | APT716 |
| Type | Air Angle Grinder | Air Angle Grinder | Air Angle Grinder | Air Angle Grinder | Air Angle Grinder | Air Angle Grinder |
| Range | PRO | |||||
| Free Speed | 12000 rpm | 12000 rpm | 11,000 rpm | 15000rpm | 7,000 rpm | |
| Length (mm) | 125 | 125 | 100 | 58 | 100 | |
| Main Material type | Aluminium, Composite over-sleeve | Aluminium, Composite over-sleeve | ||||
| Maximum Pressure (bar) | 3 | 3 | 2 | 2 | ||
| Weight (kg) | 2.2 kg | 2.2 | 67 | 34 | 38 | 3.5 |
| Show More | ||||||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. No - the CP3650-120AB51800W does not have an auto balancer; see the CP3850 VE series for auto balancer models.
A. The CP3650-120AB51800W features a guard that rotates 360 degrees with 15 guard positions for safe wheel containment.
A. The CP3650-120AB51800W uses a 5/8-11 UNC output spindle thread - ensure abrasive wheels and backing pads match this specification.
A. The CP3650-120AB51800W key technical specifications include a free speed of 12000 rpm, max power of 1800 W, weight of 2.2 kg, length of 247.5 mm, and max working pressure of 6.3 bar.
A. The CP3650-120AB51800W is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. Refer to the CP3650-120AB51800W product page on partsformachines.com for the full list of comparable models and alternatives.
A. The CP3650-120AB51800W is engineered for professional industrial use - built for sustained heavy-duty metal grinding and fabrication.
A. The CP3650-120AB51800W features an aluminium alloy body with composite over-sleeve insulation for durability and reduced tool weight.
A. The CP3650-120AB51800W requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP3650-120AB51800W consumes 29.8 1/sNl at load via 3/8" BSP inlet at 6.3 bar.
