Product Number: 83953

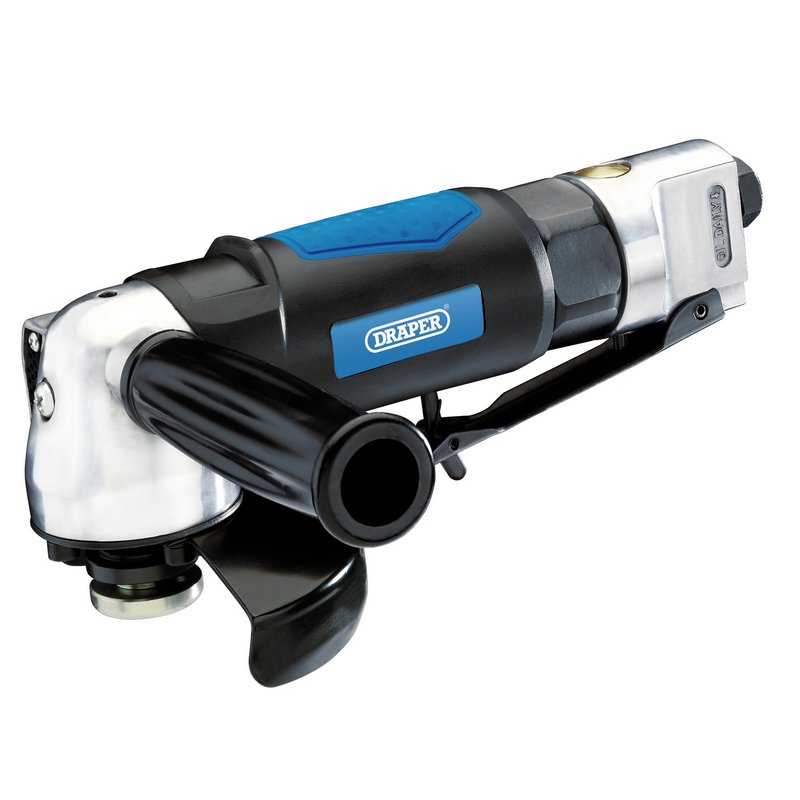

Achieving consistent material removal, grinding, and finishing on metal workpieces demands a tool that combines control with endurance. The Draper 83953 Air Angle Grinder addresses this with a safety lever trigger that helps prevent accidental starts, reducing risk in busy workshop environments where tools are frequently picked up and set down. The grinder is manufactured from lightweight aluminium housing and features an ergonomic soft grip complemented by an auxiliary side handle, ensuring operator comfort during prolonged use. Hardened steel bevelled gears deliver robust power transmission, while a built-in adjustable regulator and governor mechanism work together to maintain consistent disc speed under load. A top exhaust directs spent air away from the workpiece and operator, and the unit is noted for low noise and low vibration characteristics, supported by a measured vibration level of 2.43m/s². The 83953 accepts 100mm discs and operates at a free speed of 11,000rpm. It requires a working air pressure of 90psi (6.2bar) and an average air consumption of 6.5cfm (184L/min). Connection to the airline is via a 1/4" BSP fitting, with a minimum hose size of 3/8" (10mm). The tool weighs 1.67kg, keeping operator fatigue to a minimum across extended tasks.Supplied as a single unit, the Draper 83953 is suited to professional workshop and industrial applications where a reliable, operator-focused pneumatic angle grinder is required.
Air angle grinder fitted with a safety trigger helping prevent accidental starts. Manufactured from lightweight aluminium housing attached to an ergonomic soft grip and fitted with an auxiliary side handle, which provides comfort even when used for prolonged periods. Fitted with hardened steel beveled gears, a built-in regulator, governor mechanism and an top exhaust. Attached with a 1/4" BSP airline connector.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 6.5cfm (184L/min) |
| Disc Size | 100mm |
| Free Speed | 11,000 rpm |
| Min Hose Size | 3/8" (10mm) |
| Operating Air Pressure | 90psi (6.2bar) |
| Vibration Level | 2.43m/s2 |
| Weight | 1.67kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
00364 | Draper 364 ROLL PIN | 1 Unit |
£10.13
£9.93
|
Add |
|
|
00378 | Draper 378 ROLL PIN | 1 Unit |
£13.17
£12.91
|
Add |
83953ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP7550-B, 5" Air Angle Grinder
£319.21
£309.91
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3850-65AB9VE, 9" Air Angle Grinder
£1,645.78
£1,597.84
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP350-085AA7, 7" Air Angle Grinder
£849.42
£824.68
3% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 70832 | 8941075502 | 6151704940 | 6151607830 | T024387 | 8941075001 |
| Wheel Diameter(mm) | 100 | 125 | 230 | 180 | 50 | |
| Free Speed(RPM) | 9000 | 12000 | 6500 | 8500 | 22000 | |
| Air Consumption(CFM) | 6.5 CFM | |||||
| Spindle Thread | 5/8-11 UNC | 5/8-11 UNC | M14 x 2 | 3/8-24 UNF | ||
A. The Draper 83953 accepts 100mm grinding discs.
A. The grinder operates at a free speed of 11,000rpm.
A. It requires an operating air pressure of 90psi (6.2bar) and has an average air consumption of 6.5cfm (184L/min).
A. The grinder is fitted with a 1/4" BSP airline connector and requires a minimum hose size of 3/8" (10mm).
A. The tool features a safety lever trigger to help prevent accidental starts, a built-in adjustable regulator, and a governor mechanism to maintain consistent speed. A top exhaust directs air away from the operator and workpiece.
A. The grinder is constructed from lightweight aluminium housing and weighs 1.67kg. It is fitted with an ergonomic soft grip and an auxiliary side handle for added comfort during extended periods of use.
