Product Number: 6151606140
Variations

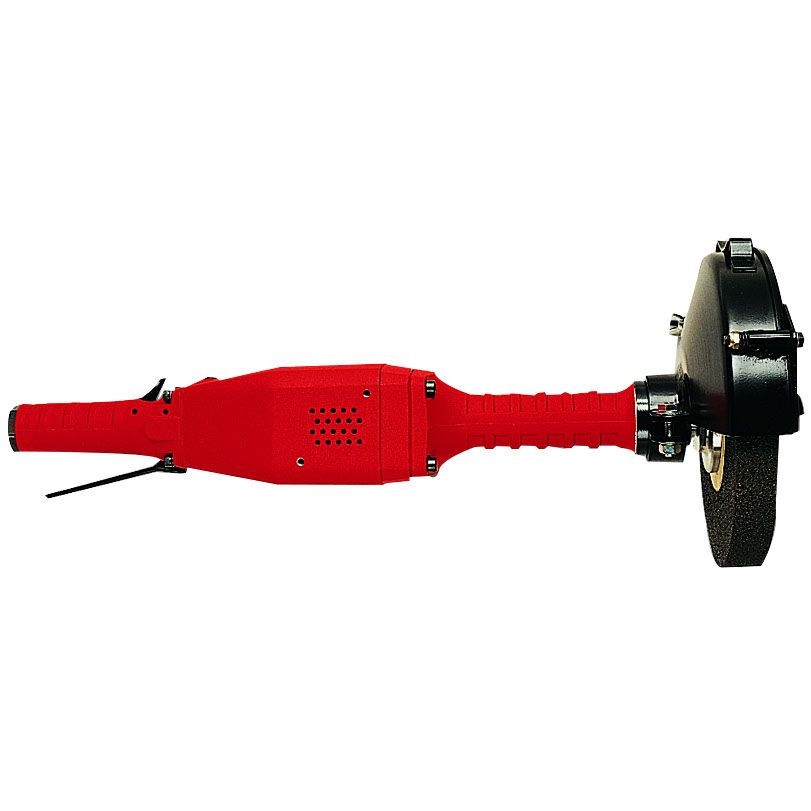

The Chicago Pneumatic CP3249-GABSUD delivers serious industrial-grade performance for demanding grinding, cutting, and surface finishing applications where power and precision cannot be compromised. Engineered with a robust 2,400-watt output and a controlled 4,500 RPM operating speed, this chicago pneumatic air grinder is purpose-built for heavy-duty metalworking environments where sustained productivity is essential. Constructed from high-quality aluminium, the CP3249-GABSUD offers an impressive strength-to-weight ratio, reducing operator fatigue during extended use without sacrificing structural integrity. The weight-type governor ensures consistent speed regulation under load, maintaining reliable performance throughout the most demanding tasks. Side exhaust positioning directs spent air away from the work surface and operator, improving visibility and comfort on the job. The 5/8-11 UNC output spindle thread provides broad compatibility with a wide range of 8-inch (200 mm) grinding discs and attachments, giving professionals the flexibility to tackle varied applications with a single tool. As a straight-configuration chicago pneumatic grinder, the CP3249-GABSUD excels where an air angle grinder cannot reach, making it the preferred choice for weld seam preparation, scale removal, and internal bore finishing on heavy fabrications. Ideal for shipbuilding yards, steel fabrication shops, foundries, and heavy engineering facilities, this cp die grinder stands as a reliable workhorse for professionals who demand consistent, high-powered performance shift after shift.
Product Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Auto balancer | No |
|---|---|
| Exhaust | Side |
| Governor type | Weight |
| Main Material type | Aluminium |
| Output Spindle Thread | 5/8-11 UNC |
| Rotative guard type | Band |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| Wheel/Disc diameter (in) | 8 |
| Wheel/Disc diameter (mm) | 200 |
| Wheel thickness (in) | 1 |
| Wheel thickness (mm) | 25 |
| Max power | 2400 W |
| Air consumption at load | 33 l/s |
| Air inlet thread size (in) | 1/2 |
| Air inlet thread type | BSP |
| Max dynamic air working pressure | 6.3 bar |
| Min hose diam (16 ft hose length) | 0.63 in |
| Min hose diam (5 m hose length) | 15 mm |
| Free Speed | 4500 rpm |
| Air consumption at free speed | 8 l/s |
| Overspeed shut-off | Yes |
| Length (L) | 554 mm |
| Weight | 6.3 kg |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Vibration (m/s²) | < 2.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP3249-GABSUDE, 8" Air Straight Grinder
£2,060.80
£2,000.78
3% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP3850-85AB7VE, 7" Air Angle Grinder
£1,660.93
£1,612.55
3% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 6151606190 | 6151704920 | 83953 | SA153 | 70832 | APT716 |
| Wheel Diameter(mm) | 200 | 180 | 100 | 58 | 100 | |
| Free Speed(RPM) | 4500 | 8500 | 11000 | 15000 | 9000 | 7000 |
| Air Consumption(CFM) | 6.5 CFM | 3 CFM | 6.5 CFM | |||
| Spindle Thread | 5/8-11 UNC | 5/8-11 UNC | 1/4" x 19 UNC | |||
| Range | PRO | |||||
| Weight | 3.5 | |||||
| Power Source | Compressed Air | |||||
| Disc Size | 7 | |||||
| Show More | ||||||
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Standard UK Mainland delivery is 3–5 working days.
A. The CP3249-GABSUD runs at 4500 rpm free speed with 2400 W maximum power output.
A. No - the CP3249-GABSUD does not have an auto balancer; see the CP3850 VE series for auto balancer models.
A. The CP3249-GABSUD uses a 5/8-11 UNC output spindle thread - ensure abrasive wheels and backing pads match this specification.
A. The CP3249-GABSUD is part of a product family - variants include related models with differing specs available at partsformachines.com.
A. Refer to the CP3249-GABSUD product page on partsformachines.com for the full list of comparable models and alternatives.
A. The CP3249-GABSUD is engineered for professional industrial use - built for sustained heavy-duty metal grinding and fabrication.
A. The CP3249-GABSUD features an aluminium alloy body for durability and reduced tool weight.
A. The CP3249-GABSUD requires a minimum 10mm (3/8") hose at 5m or 3/8" (16ft) for full performance at 6.3 bar working pressure.
A. The CP3249-GABSUD consumes 33 l/s at load via 1/2" BSP inlet at 6.3 bar.
