Product Number: 143C3A
Castrol Hyspin AWH-M 150 is an anti-wear hydraulic oil in the Castrol Hyspin AWH-M range, a multi-purpose hydraulic and circulation oil family with a zinc-containing anti-wear additive system designed for general industrial hydraulic and circulation service. The product is positioned for severely stressed hydraulic systems and circulating systems requiring an anti-wear performance level alongside corrosion protection, oxidation stability and water-separation properties.
The ISO VG 150 viscosity grade is the heaviest grade in the Hyspin AWH-M range, suited to heavily loaded industrial circulation systems, large gearcase applications and hot-ambient operation where a thick hydraulic oil is specified.
Approvals and performance levels include ISO 6743-4; and DIN 51502 and 51524.
The Castrol Hyspin AWH-M range covers a number of viscosity grades up to ISO VG 150 in our catalogue.

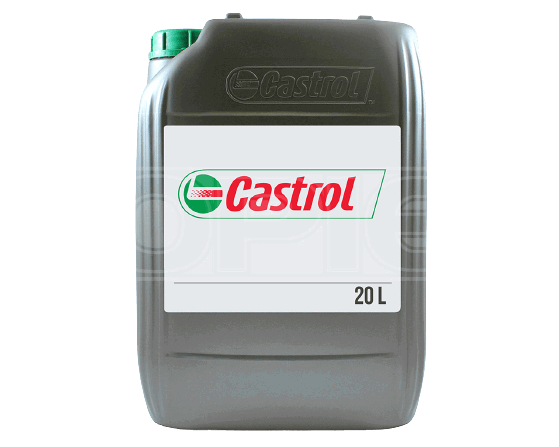

The 20-litre pack format is suited to single-machine top-up and small workshop service. Store sealed in the original packaging, in a clean, dry area away from extremes of temperature, to preserve product performance over its shelf life.
The Castrol Hyspin™ AWH-M hydraulic oil range of shear stable high viscosity index lubricants are based on the latest stabilised zinc additive technology. Hyspin AWH-M contains a shear stable additive system which helps maintain the viscosity characteristics of the product over a wide temperature range even during prolonged use and imparts a very low pour point which enables the product to be used in very cold environments. It exhibits excellent corrosion and wear protection as well as outstanding thermal and oxidative stability. In addition, Hyspin AWH-M has excellent hydrolytic stability and separates rapidly from water contamination upon standing. Applications include: Outdoor equipment which are likely to operate in wide temperature ranges, such as machinery subjected to cold start up conditions and high temperature continuous running. Examples include off-highway and marine applications. Indoor manufacturing equipment that incorporates control systems requiring minimal viscosity change with temperature. Examples include precision machine tools. The Hyspin AWH-M range is fully compatible with elastomer materials commonly used for static and dynamic seals, such as nitrile, silicone and fluorinated (e.g. Viton) polymers. Hyspin AWH-M is classified as follows: DIN 51502 classification – HVLP ISO 6743/4 - Hydraulic Oils Type HV Hyspin AWH-M grades meet the requirements (for appropriate viscosity grade) of: DIN 51524 Part 3 Cincinnati Lamb (Milacron) P 68-69-70 Denison (Parker Hannafin) HF-0 US Steel 126 & 127 Eaton (formerly Vickers) I-286-S & M-2950-SBosch Rexroth RE07075/RE90220
Specifications, Approvals & Recommendations:Hyspin AWH-M grades meet the requirements (for appropriate viscosity grade) of:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ISO Viscosity Grade | 150 |
|---|---|
| Density @ 15°C / 59°F ISO 12185 / ASTM D4052 | 880 kg/m³ |
| Kinematic Viscosity @ 40°C / 104°F ISO 3104 / ASTM D445 | 150mm²/s |
| Kinematic Viscosity @ 100°C / 212°F ISO 3104 / ASTM D445 | 18.1mm²/s |
| Viscosity Index ISO 2909 / ASTM D2270 - | >130 |
| Pour Point ISO 3016 / ASTM D97 | -30/-20 °C/°F |
| Flash Point - open cup method ISO 2592 / ASTM D92 | 232/450 °C/°F |
| Flash Point - closed cup method ISO 2719 / ASTM D93 | 220/428 °C/°F |
| Foam Sequence I - tendency / stability ISO 6247 / ASTM D892 | 20/0 ml/ml |
| Water Separation @ 82°C / 180°F (40/37/3) ISO 6614 / ASTM D1401 | 20min |
| Air Release @ 50°C / 122°F ISO 9120 / ASTM D3427 | 24min |
| FZG Gear Scuffing test - A/8.3/90 ISO 14635-1 | 12 Failure Load Stage |
| Rust test - distilled water (24 hrs) ISO 7120 / ASTM D665A | Pass |
| Rust test - synthetic seawater (24 hrs) ISO 7120 / ASTM D665B | Pass |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Shell 550045522 Tellus S2 VX 68, Hydraulic Oil - 20 Litre
£156.27
£153.21
2% OFF
Free delivery in UK Mainland
|
Shell 550045525 Tellus S2 VX 46, Hydraulic oil - 20 Litre
£156.27
£153.21
2% OFF
Free delivery in UK Mainland
|
Shell 550045738 Tellus S2 VX 32, Hydraulic Oil - 20 Litre
£156.27
£153.21
2% OFF
Free delivery in UK Mainland
|
Shell 550045734 Tellus S2 MX 32, Hydraulic oil - 20 Litre
£135.76
£133.10
2% OFF
Free delivery in UK Mainland
|
Shell 550045430 Tellus S2 MX 46, Hydraulic oil - 20 Litre
£113.32
£111.10
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | PRD00004300 | PRD00004302 | PRD00004313 | PRD00004311 | PRD00004297 |
| Density, 15°C | 0.86 | 0.856 | 0.854 | 0.854 | 0.856 |
| Flash Point (COC) | 230 | 428 | 419 | 220 | 446 |
| Kinematic Viscosity @40°C | 68 | 46 | 32 | 32 | 46 |
| Pour Point | -30 | -36 | -36 | -30 | -30 |
| Colour | L0.5 | L0.5 | L0.5 | ||
| SAE | 68 | 46 | 32 | 32 | 46 |
| Volume | 20 | 20 | 20 | 20 | 20 |
| Viscosity Index | 143 | 143 | 143 | 105 | 105 |
| Show More | |||||
A. Castrol Hyspin AWH-M 150 is designed for severely stressed hydraulic systems and circulating systems, suited to heavily loaded industrial circulation, large gearcase applications and hot-ambient operation where a thick hydraulic oil is specified.
A. Castrol Hyspin AWH-M 150 is supplied at ISO VG 150 — the heaviest grade in the Hyspin AWH-M range.
A. Castrol Hyspin AWH-M 150 meets ISO 6743-4; and DIN 51502 and 51524.
A. Both are Castrol anti-wear hydraulic oils. Hyspin AWH-M is the multi-purpose anti-wear range with a zinc-containing additive system for general industrial hydraulic and circulation service. Hyspin HVI is the high-viscosity-index ashless (zinc-free) range for severely stressed mobile hydraulic systems requiring wide-temperature viscosity stability.
A. Castrol Hyspin AWH-M 150 is a hydraulic/circulation oil. For dedicated industrial gearbox applications, a Castrol Alpha SP or Alphasyn industrial gear oil to ISO 12925 CKD / DIN 51517-3 is the correct selection — check the gearbox manufacturer's specification.
A. Yes, the heavier ISO VG 150 viscosity is positioned for warm- and hot-ambient operations and for systems generating high oil-film temperatures.
A. API and ACEA are the universal lubricant performance standards every reputable oil meets. They are your baseline check — match the code your handbook specifies (e.g., API CI-4 or ACEA E7 for heavy-duty diesel) and the oil is technically suitable for your machine. Every oil on our site lists its API and ACEA classifications.
A. An OEM Specification is the lubricant requirement set by a vehicle or equipment manufacturer (e.g., MB 228.3, VW 504.00). When an oil lists the code, the oil manufacturer has developed and tested it to meet the criteria the equipment manufacturer requires. Match the code in your handbook and you have a lubricant engineered for your machine.
A. An OEM Approval means the oil has been formally tested and signed off by the equipment manufacturer and listed on their official approved-products register (e.g., MB-Approval 228.3). An Approval confirms the oil is recognised by the equipment manufacturer for service use in their machines.
