Product Number: NS-V-8-180
Variations
Mid-size hatches, covers and access panels are the typical home for the Metrol NS-V-8-180. A variable force gas strut with a 180mm stroke and a 410mm extended length. Rather than a fixed factory setting, its force is adjustable across 50–650N and tuned to the load on setup; the 33% progression across the stroke keeps motion smooth from closed to fully open. Built on a 8mm QPQ rod in a 18mm powder-coated body, it carries panel weights of 6–35kg per balanced pair and operates across −30°C to +80°C, supplied at maximum force unless otherwise specified. It is used on equipment covers, storage-box lids, machine guards, fold-down benches and other lift-and-hold panels. A threaded end fitting screws onto the rod while a mounting bracket carries the body end, and struts are fitted in pairs for an even, two-sided action that stays put when released. Within the range, its nearest stroke options are NS-V-8-150 and NS-V-8-200; the MLT-8-180 locking tube holds it open; the MPT-8-180 tube shields the rod. Every strut is guaranteed for two years, and custom strokes and forces are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 180mm |
|---|---|
| Extended Length | 410mm |
| Rod Diameter | 8mm |
| Body Diameter | 18mm |
| Force Range | 50 - 650N |
| Force Progression | 33% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MLT-8-180 | MLT-8-180 8mm Metal Safety Locking Tube | 1 Unit |
£13.17
£12.91
|
Add |
|
MPT-8-180 | MPT-8-180 8mm Metal Protection Tube | 1 Unit |
£7.68
£7.53
|
Add |
|
B0 | B0 Ball Joint End Fittings with 6mm Thread | 1 Unit |
£6.99
£6.85
|
Add |
|
E3 | E3 Eye End Fittings with 6mm Thread | 1 Unit |
£6.67
£6.54
|
Add |
|
C1 | Clevis Fork with 6mm Thread C1 | 1 Unit |
£6.54
£6.41
|
Add |
|
RE8 | RE8 Rose Eye End Fitting with 6mm Thread | 1 Unit |
£8.20
£8.04
|
Add |
|

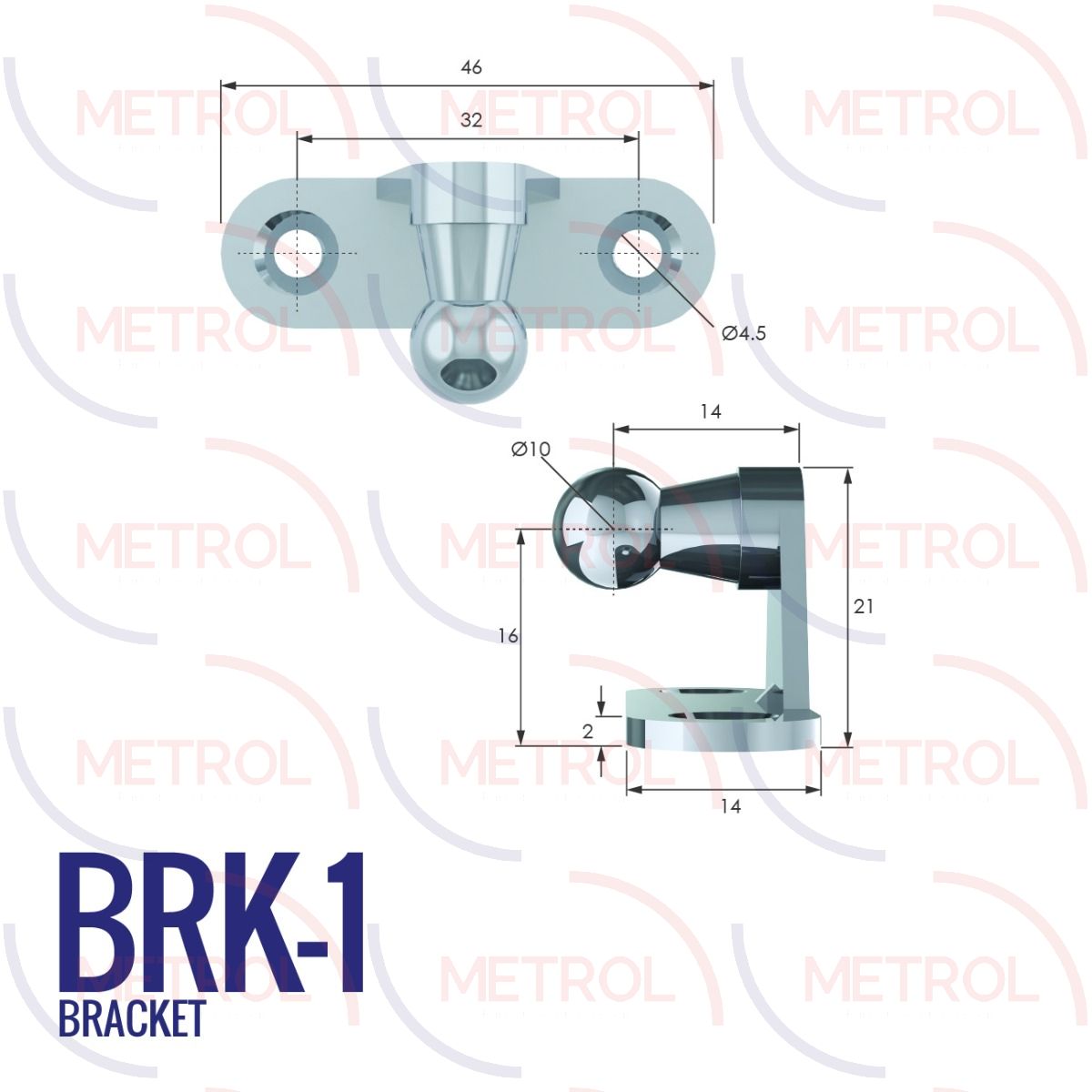

BRK-1 | BRK-1 10mm Right Angle Bracket with 32mm Fixing Centres | 1 Unit |
£9.03
£8.85
|
Add |
NS-V-8.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-6-60 | NS-V-6-200 | NS-V-6-150 | NS-V-6-100 | NS-V-14-600 |
A. Stroke is roughly how far the panel opens. The 8mm range runs 100–350mm; match it to your opening distance and pick a balanced pair.
A. It is adjustable across 50–650N, supplied at maximum unless specified, and can be bled down to suit the panel weight.
A. The 8mm range supports 6–35kg per pair; fit two struts for a balanced lift.
A. It operates across −30°C to +80°C.
A. Yes — fit the MLT-8-180 locking tube, which locks automatically at full extension.
A. Yes — the NS-V-8-180 is a genuine Metrol product, available from PartsForMachines.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
