Product Number: NS-V-8-120
Variations

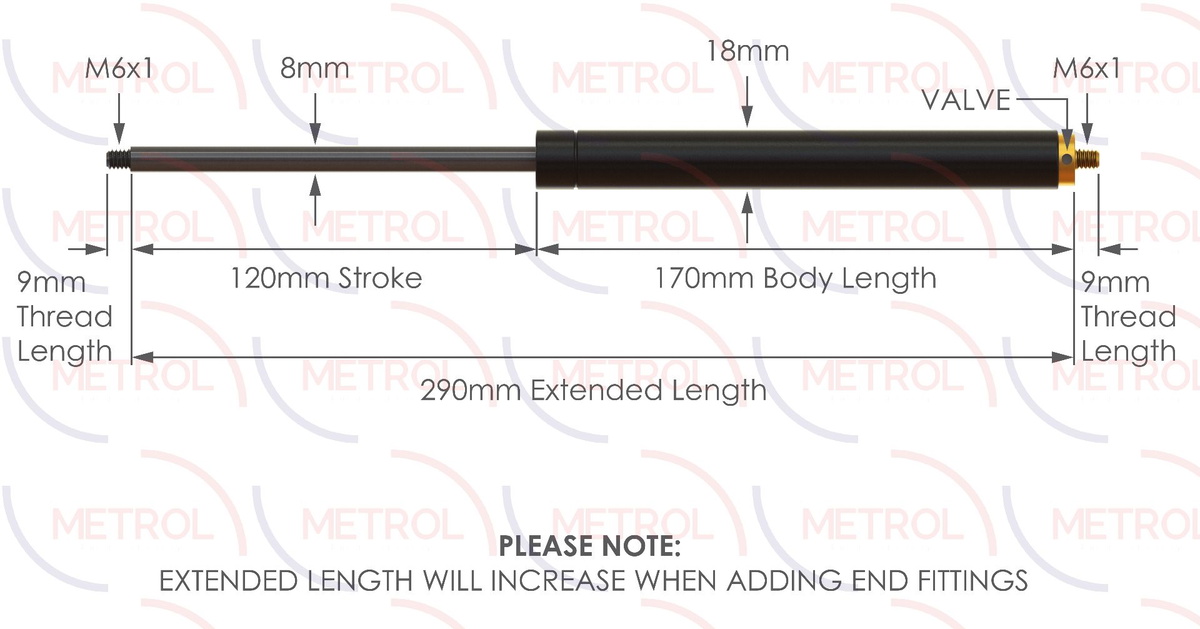

For panels that lift through a modest arc, the Metrol NS-V-8-120 gives controlled, repeatable support. It is a variable force gas strut with a 120mm stroke extending to 290mm. Force is set on assembly rather than fixed at the factory. The 50–650N output is matched to the panel weight and can be bled down to fine-tune the open-and-hold balance, so a single model covers a span of loads. The 8mm QPQ-treated piston rod runs in a 18mm powder-coated steel body and the strut works across −30°C to +80°C. It is supplied at maximum force unless specified, and end fittings thread onto the rod to suit your mounting. Typical applications include inspection hatches, equipment covers, storage-box lids, machine guards and similar hinged panels. The rod threads into a ball-joint, eye or clevis end fitting and the body end mounts to a bracket on the frame; a balanced pair fitted either side lifts the panel evenly and holds it steady at any point in the travel. Within the range, its nearest stroke options are NS-V-8-100 and NS-V-8-150; the MLT-8-120 locking tube holds it open; the MPT-8-120 tube shields the rod. Every strut is guaranteed for two years, and custom strokes and forces are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 120mm |
|---|---|
| Extended Length | 290mm |
| Rod Diameter | 8mm |
| Body Diameter | 18mm |
| Force Range | 50 - 650N |
| Force Progression | 33% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MLT-8-120 | MLT-8-120 8mm Metal Safety Locking Tube | 1 Unit |
£13.17
£12.91
|
Add |
|

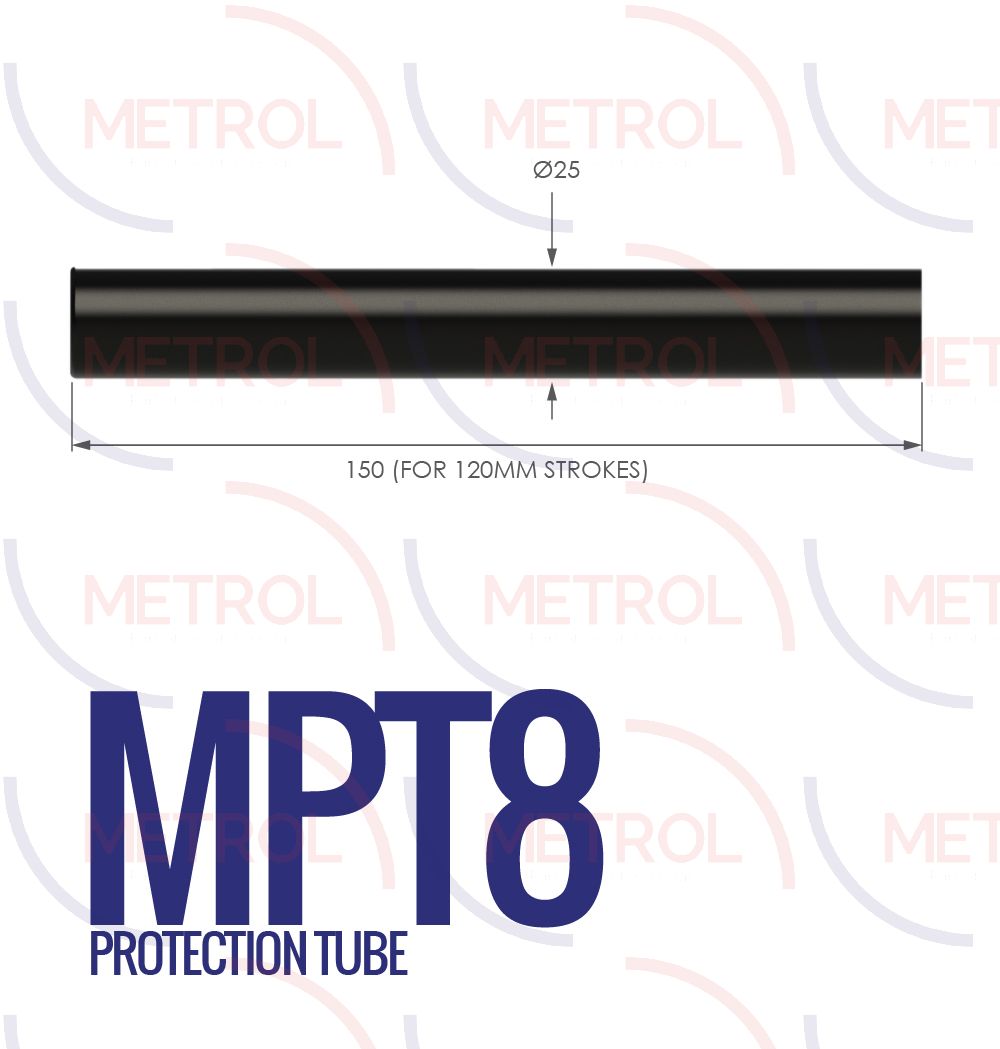

MPT-8-120 | MPT-8-120 8mm Metal Protection Tube | 1 Unit |
£7.54
£7.39
|
Add |
|
B0 | B0 Ball Joint End Fittings with 6mm Thread | 1 Unit |
£6.99
£6.85
|
Add |
|
E3 | E3 Eye End Fittings with 6mm Thread | 1 Unit |
£6.67
£6.54
|
Add |
|
C1 | Clevis Fork with 6mm Thread C1 | 1 Unit |
£6.54
£6.41
|
Add |
|
RE8 | RE8 Rose Eye End Fitting with 6mm Thread | 1 Unit |
£8.20
£8.04
|
Add |
|
BRK-1 | BRK-1 10mm Right Angle Bracket with 32mm Fixing Centres | 1 Unit |
£9.03
£8.85
|
Add |
NS-V-8.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-6-60 | NS-V-6-200 | NS-V-6-150 | NS-V-6-100 | NS-V-14-600 |
A. Stroke is roughly how far the panel opens. The 8mm range runs 100–350mm; match it to your opening distance and pick a balanced pair.
A. It is adjustable across 50–650N, supplied at maximum unless specified, and can be bled down to suit the panel weight.
A. The 8mm range supports 6–35kg per pair; fit two struts for a balanced lift.
A. It operates across −30°C to +80°C.
A. Yes — fit the MLT-8-120 locking tube, which locks automatically at full extension.
A. Yes — the NS-V-8-120 is a genuine Metrol product, available from PartsForMachines.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
