Product Number: NS-V-6-100
Variations

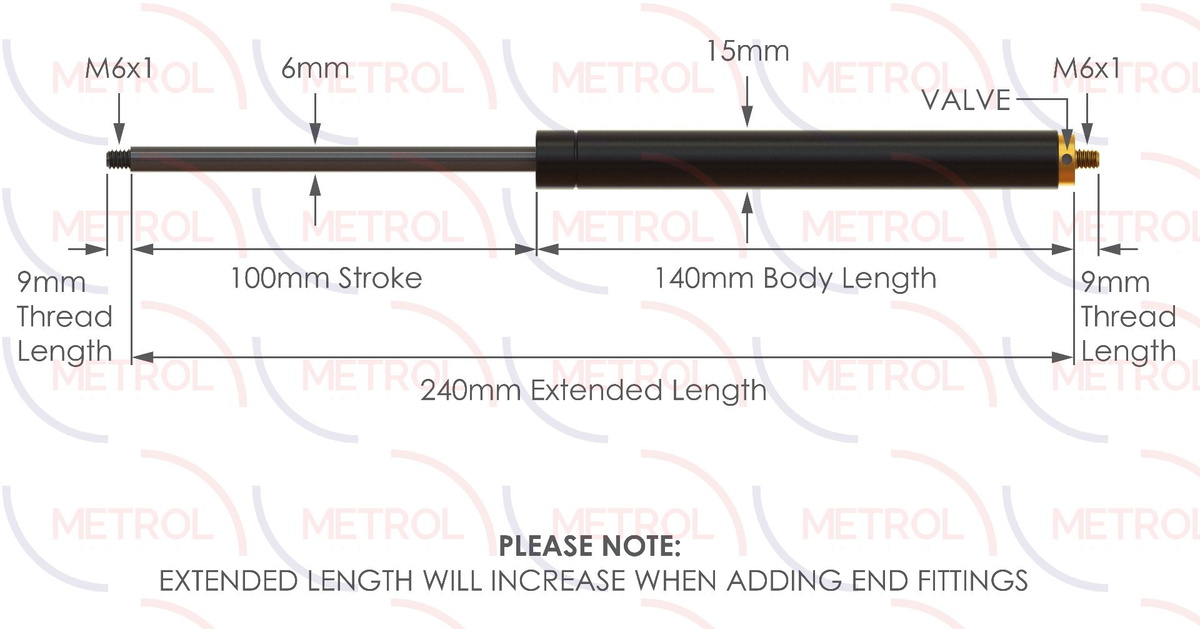

For panels that lift through a modest arc, the Metrol NS-V-6-100 gives controlled, repeatable support. It is a variable force gas strut with a 100mm stroke extending to 240mm. Force is set on assembly rather than fixed at the factory. The 30–400N output is matched to the panel weight and can be bled down to fine-tune the open-and-hold balance, so a single model covers a span of loads. The 6mm QPQ-treated piston rod runs in a 15mm powder-coated steel body and the strut works across −30°C to +80°C. It is supplied at maximum force unless specified, and end fittings thread onto the rod to suit your mounting. Typical applications include storage-box lids, machine guards, fold-down benches, worktop flaps and similar hinged panels. The rod threads into a ball-joint, eye or clevis end fitting and the body end mounts to a bracket on the frame; a balanced pair fitted either side lifts the panel evenly and holds it steady at any point in the travel. Within the range, its nearest stroke options are NS-V-6-60 and NS-V-6-150; a 316 stainless equivalent is available as NS-SS-V-6-100. Every strut is guaranteed for two years, and custom strokes and forces are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 100mm |
|---|---|
| Extended Length | 240mm |
| Rod Diameter | 6mm |
| Body Diameter | 15mm |
| Force Range | 30 - 400N |
| Force Progression | 27% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
B0 | B0 Ball Joint End Fittings with 6mm Thread | 1 Unit |
£6.99
£6.85
|
Add |
|
E3 | E3 Eye End Fittings with 6mm Thread | 1 Unit |
£6.67
£6.54
|
Add |
|
C1 | Clevis Fork with 6mm Thread C1 | 1 Unit |
£6.54
£6.41
|
Add |
|
RE8 | RE8 Rose Eye End Fitting with 6mm Thread | 1 Unit |
£8.20
£8.04
|
Add |
|
BRK-1 | BRK-1 10mm Right Angle Bracket with 32mm Fixing Centres | 1 Unit |
£9.03
£8.85
|
Add |
NS-V-6.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-8-350 | NS-V-8-300 | NS-V-8-250 | NS-V-8-200 | NS-V-8-180 | C1 | C1CLIP | C2 | C2CLIP | MLT-10-100 |
| Type | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut | Gas Strut |
| Length | 10mm | |||||||||
| Size | 6mm | 6mm | 8mm | 8mm | 10mm | |||||
| Body Diameter | 18mm | 18mm | 18mm | 18mm | 18mm | |||||
| Extended Length | 750mm | 650mm | 550mm | 450mm | 410mm | |||||
| Force | Variable | Variable | Variable | Variable | Variable | |||||
| Force Range | 50 - 650N | 50 - 650N | 50 - 650N | 50 - 650N | 50 - 650N | |||||
| Length Range | Up to 10mm | |||||||||
| Rod Diameter | 8mm | 8mm | 8mm | 8mm | 8mm | |||||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |||||
| Stroke | 350mm | 300mm | 250mm | 200mm | 180mm | |||||
| Show More | ||||||||||
A. Stroke is roughly how far the panel opens. The 6mm range runs 60–200mm; match it to your opening distance and pick a balanced pair.
A. It is adjustable across 30–400N, supplied at maximum unless specified, and can be bled down to suit the panel weight.
A. The 6mm range supports 1–10kg per pair; fit two struts for a balanced lift.
A. It operates across −30°C to +80°C.
A. Yes, NS-SS-V-6-100 in 316 stainless for outdoor and marine use.
A. Yes — the NS-V-6-100 is a genuine Metrol product, available from PartsForMachines.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
