Product Number: B14-A
Variations

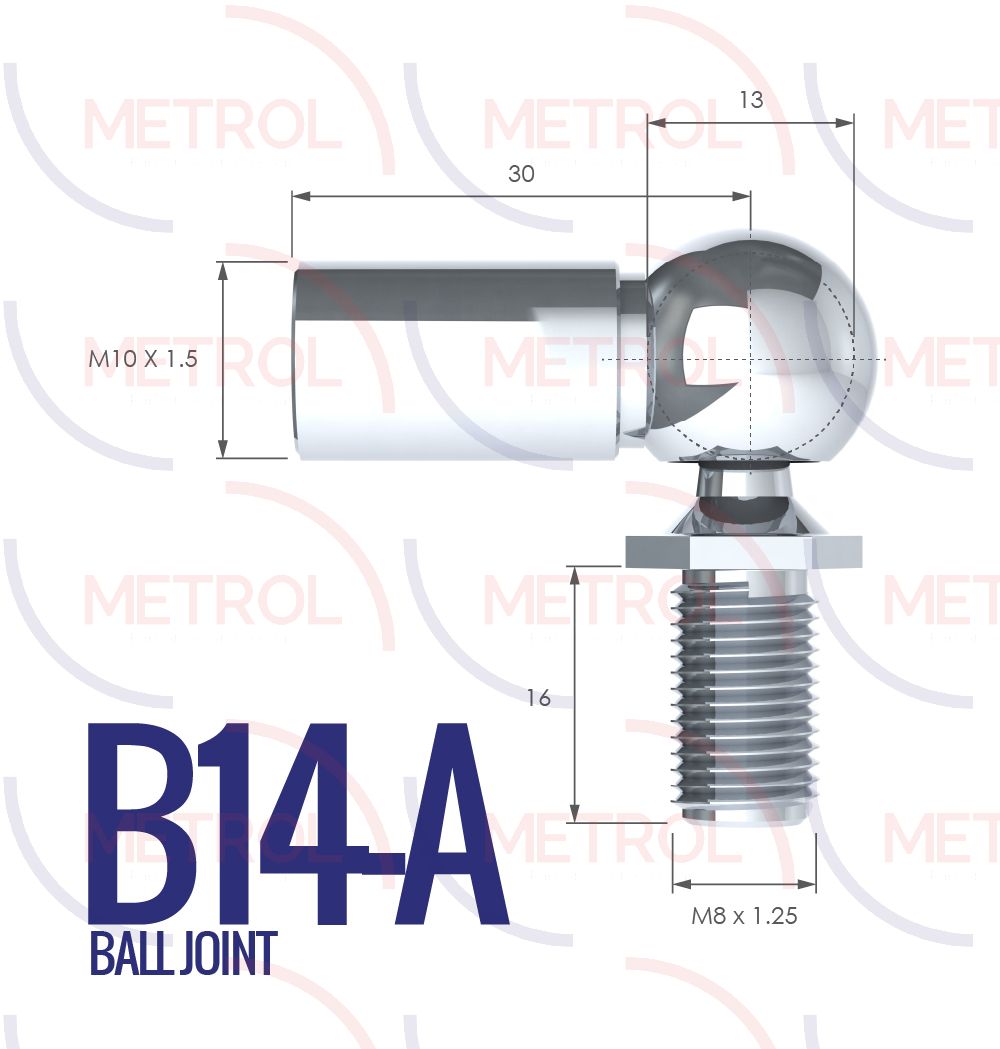

A gas strut needs an articulating end that lets the panel swing as it opens; a ball joint provides exactly that. The Metrol B14-A is a steel ball joint end fitting with an M10 thread, a 30mm body and a 13mm ball. It screws onto the threaded end of the strut rod and clips onto a matching ball-stud bracket, so the strut can pivot freely through its travel. Its M10 thread suits a gas strut with a 14mm rod, and the 13mm ball clips onto BRK-4A, BRK-6A, BRK-6R-A, BRK-7A. The ball sits on a M8 stud 14mm long behind the 30mm body, threading into the bracket socket side. Like every end fitting in the range it transfers the strut's force to the structure: a ball joint gives a connection that swivels in any direction, an eye a single-axis hinge, a clevis fork an in-line pinned joint, and a rose eye absorbs slight misalignment. It threads onto a gas strut with a 14mm rod, and is chosen by matching the thread to the strut and the size to the space behind the mounting. Typical applications include storage-box lids, machine guards, fold-down benches, worktop flaps. Within the M10 range, its nearest sizes are B14 and B15, differing by body length.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread (A) | M10 |
| Fitting Length (B) | 30mm |
| Stud Thread (C) | M8 |
| Stud Length (D) | 14mm |
| Ball Diameter (E) | 13mm |
| Strut Rod Dia | 14mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
NS-V-14-100 | NS-V-14-100 Variable Force Gas Strut | 1 Unit |
£47.56
£46.63
|
Add |
|
NS-V-14-150 | NS-V-14-150 Variable Force Gas Strut | 1 Unit |
£48.71
£47.75
|
Add |
|
NS-V-14-200 | NS-V-14-200 Variable Force Gas Strut | 1 Unit |
£49.62
£48.65
|
Add |
|
NS-V-14-250 | NS-V-14-250 Variable Force Gas Strut | 1 Unit |
£51.00
£50.00
|
Add |
|
NS-V-14-300 | NS-V-14-300 Variable Force Gas Strut | 1 Unit |
£51.53
£50.52
|
Add |
|
NS-V-14-350 | NS-V-14-350 Variable Force Gas Strut | 1 Unit |
£52.90
£51.86
|
Add |
|
NS-V-14-400 | NS-V-14-400 Variable Force Gas Strut | 1 Unit |
£53.88
£52.82
|
Add |
|
NS-V-14-500 | NS-V-14-500 Variable Force Gas Strut | 1 Unit |
£55.43
£54.34
|
Add |
|
NS-V-14-600 | NS-V-14-600 Variable Force Gas Strut | 1 Unit |
£62.55
£61.32
|
Add |
|
NS-V-TR-14-500 | NS-V-TR-14-500 Variable Force Traction Gas Strut | 1 Unit |
£251.15
£246.23
|
Add |
metrolsprings-nitrostruts2020-cat_op_55.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | B9 | B8 | B7 | B6 | B5 |
A. Match the M10 thread to your strut rod and the 13mm ball to your bracket's ball stud.
A. Its M10 thread suits a gas strut with a 14mm rod.
A. BRK-4A, BRK-6A, BRK-6R-A, BRK-7A, SSBRK-4A.
A. They share thread and ball size; the fittings differ by body length.
A. Yes — the B14-A is a genuine Metrol product, available from PartsForMachines.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
