Product Number: B13
Variations

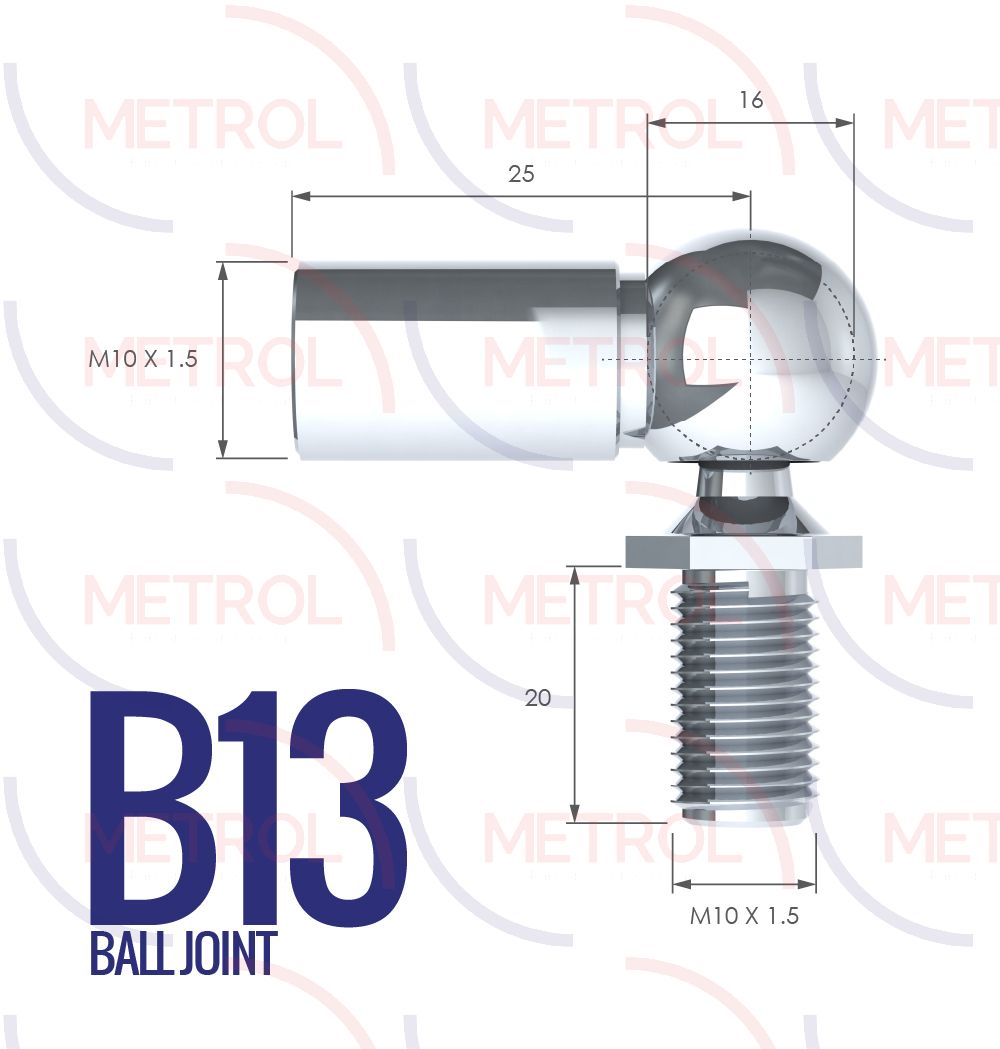

A gas strut needs an articulating end that lets the panel swing as it opens; a ball joint provides exactly that. The Metrol B13 is a steel ball joint end fitting with an M10 thread, a 25mm body and a 16mm ball. Threaded onto the strut rod, it snaps over a same-size ball stud on the mounting bracket, giving a joint that swivels as the panel moves. Its M10 thread suits a gas strut with a 14mm rod, and the 16mm ball clips onto BRK-11. The ball sits on a M10 stud 20mm long behind the 25mm body, threading into the bracket socket side. It is one of a family of end fittings that connect a strut to its mounting — a ball joint to swivel freely, an eye to hinge on a pin, a clevis to pin in line, or a rose eye to take up misalignment. Sized for a 14mm rod, the fitting is matched by thread to the strut and by size to the fixing. It is found on worktop flaps, toolbox lids, seat bases, under-bed boxes and similar panels. Within the M10 range, its nearest sizes are B13-A and B14, differing by body length.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Material | Steel |
|---|---|
| Female Thread (A) | M10 |
| Fitting Length (B) | 25mm |
| Stud Thread (C) | M10 |
| Stud Length (D) | 20mm |
| Ball Diameter (E) | 16mm |
| Strut Rod Dia | 14mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
metrolsprings-nitrostruts2020-cat_op_55.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | B9 | B8 | B7 | B6 | B5 |
A. Match the M10 thread to your strut rod and the 16mm ball to your bracket's ball stud.
A. Its M10 thread suits a gas strut with a 14mm rod.
A. BRK-11.
A. They share thread and ball size; the fittings differ by body length.
A. Yes — the B13 is a genuine Metrol product, available from PartsForMachines.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
