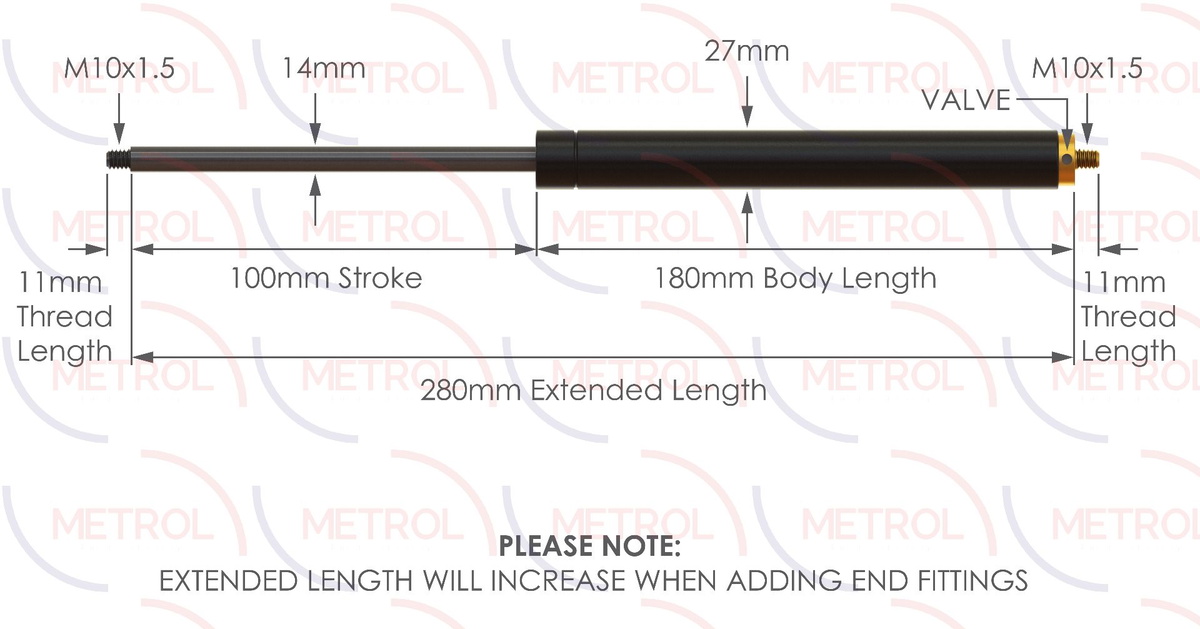

Short-throw lids and compact panels need a strut that opens fully without overrunning the frame. The Metrol NS-V-14-100 is the shortest-stroke variable force gas strut in the 14mm range, with a 100mm stroke that extends to 280mm. Force is set on assembly rather than fixed at the factory. The 150–2500N output is matched to the panel weight and can be bled down to fine-tune the open-and-hold balance, so a single model covers a span of loads. The 14mm QPQ-treated piston rod runs in a 27mm powder-coated steel body and the strut works across −30°C to +80°C. It is supplied at maximum force unless specified, and end fittings thread onto the rod to suit your mounting. Typical applications include counter hatches, canopy panels, loft hatches, serving flaps and similar hinged panels. The rod threads into a ball-joint, eye or clevis end fitting and the body end mounts to a bracket on the frame; a balanced pair fitted either side lifts the panel evenly and holds it steady at any point in the travel. Within the range, its nearest stroke options are NS-V-14-150; the MLT-14-100 locking tube holds it open; the MPT-14-100 tube shields the rod. Every strut is guaranteed for two years, and custom strokes and forces are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Stroke | 100mm |
|---|---|
| Extended Length | 280mm |
| Rod Diameter | 14mm |
| Body Diameter | 27mm |
| Force Range | 150 - 2500N |
| Force Progression | 52% |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
MLT-14-100 | MLT-14-100 14mm Metal Safety Locking Tube | 1 Unit |
£15.74
£15.43
|
Add |
|

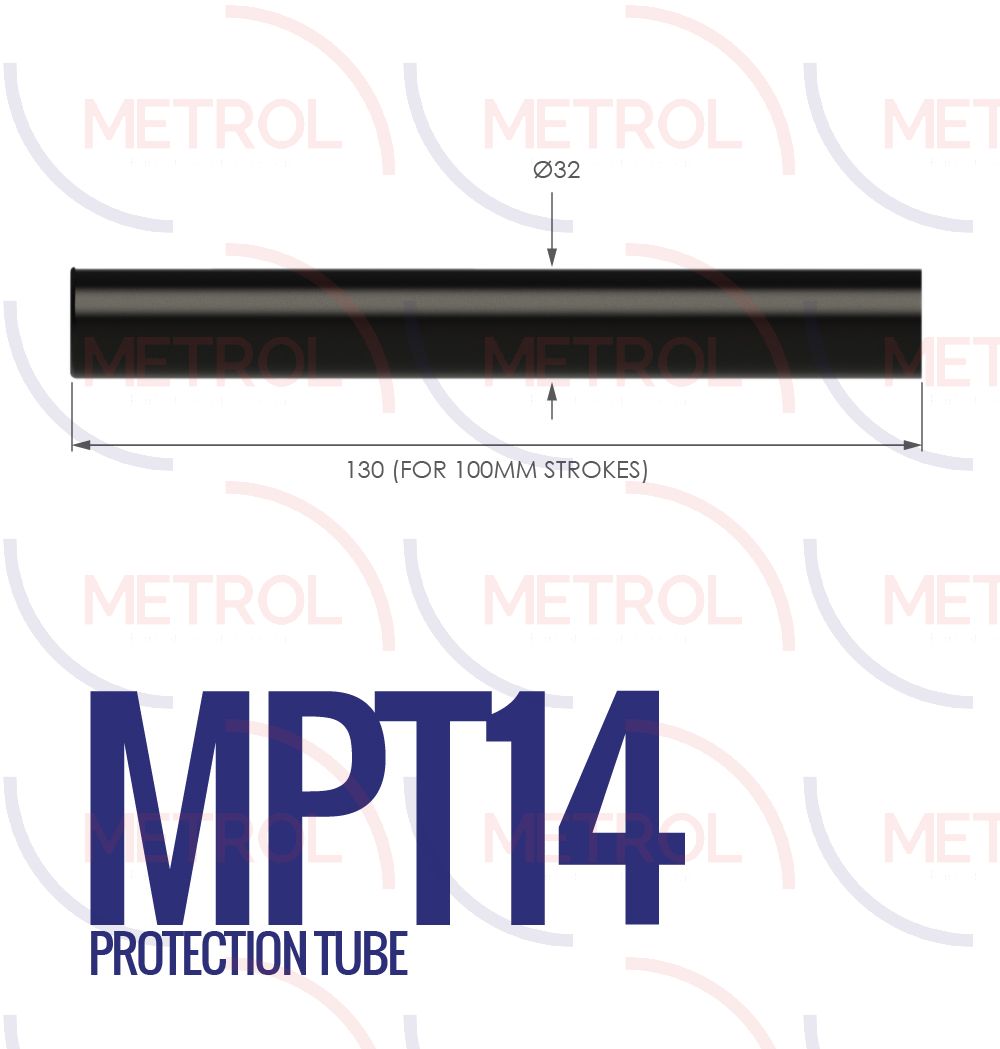

MPT-14-100 | MPT-14-100 14mm Metal Protection Tube | 1 Unit |
£8.57
£8.40
|
Add |
|
B14-A | B14-A Ball Joint End Fittings with 10mm Thread | 1 Unit |
£7.30
£7.16
|
Add |
|
E12 | E12 Eye End Fittings with 10mm Thread | 1 Unit |
£7.91
£7.75
|
Add |
|
C3 | Clevis Fork with 10mm Thread C3 | 1 Unit |
£7.25
£7.11
|
Add |
|
RE12 | RE12 Rose Eye End Fitting with 10mm Thread | 1 Unit |
£9.48
£9.29
|
Add |
|
BRK-4A | BRK-4A 13mm Circular Bracket with 41mm Fixing Centres | 1 Unit |
£9.23
£9.05
|
Add |
NS-V-14.pdf
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | NS-V-8-350 | NS-V-8-300 | NS-V-8-250 | NS-V-8-200 | NS-V-8-180 |
A. Stroke is roughly how far the panel opens. The 14mm range runs 100–600mm; match it to your opening distance and pick a balanced pair.
A. It is adjustable across 150–2500N, supplied at maximum unless specified, and can be bled down to suit the panel weight.
A. The 14mm range supports 100–350kg per pair; fit two struts for a balanced lift.
A. It operates across −30°C to +80°C.
A. Yes — fit the MLT-14-100 locking tube, which locks automatically at full extension.
A. Yes — the NS-V-14-100 is a genuine Metrol product, available from PartsForMachines.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
