Product Number: 2305-15-20
Variations

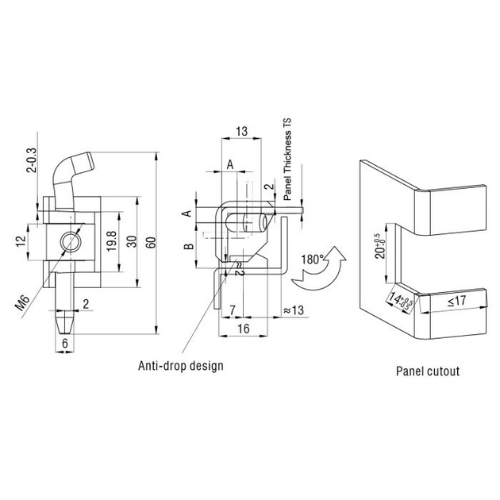

The 2305-15-20 is an external cabinet hinge finished in black textured powder coat, manufactured in die cast zinc with a stainless steel SS316 pin and mild steel zinc plated components. Designed for professional cabinet and enclosure applications, this unhanded hinge suits both left- and right-hand configurations without modification.

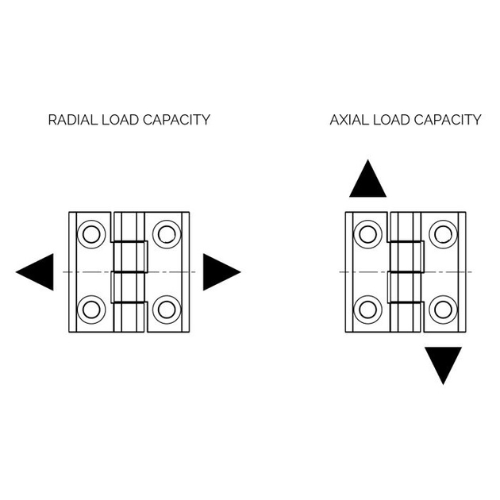

The hinge carries an axial load capacity of 358 kg per hinge and a radial load capacity of 278 kg per hinge, making it well suited to heavy-duty enclosure and cabinet installations. It is compatible with panel thicknesses of 1.5 to 2 mm.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Axial Load Capacity | 358 kg per hinge |
| Radial Load Capacity | 278 kg per hinge |
| Panel Thickness | 1.5 mm |
| Model | 2305 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
External Cabinet Hinge with M6 Stud, Black Powder Coated Finish, Panel Thickness 1.5mm, Metrol - 2305-15-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2305-15-30 | 2305-20-30 | 2404-02-L | 2404-02-R | 2118-200-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 1.5mm | 2mm | 3.6mm | 3.6mm | 38x40mm |
| Material | Zinc plated steel | Zinc plated steel | |||
| Finish | Chrome | Chrome | Zinc | Zinc | |
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |
| Thread | M6 | M6 | |||
A. The hinge body is constructed from die cast zinc alloy with mild steel zinc plated components, and features a stainless steel SS316 pin. The external finish is a black textured powder coat.
A. The hinge is rated at 358 kg axial load capacity and 278 kg radial load capacity per hinge.
A. The hinge is designed for use with panels of 1.5 to 2 mm thickness.
A. The hinge is unhanded, meaning it can be installed on either left- or right-hand doors without any modification.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
