Product Number: 2305-15-30
Variations
The 2305 External Cabinet Hinge (SKU: 2305-15-30) is a heavy-duty, unhanded external hinge finished in bright chrome, designed for use on metal cabinets, enclosures, and industrial panels where high load capacity and durability are required.
Constructed in die cast zinc with a stainless steel SS316 pin and mild steel zinc-plated components, this hinge delivers robust corrosion resistance alongside a bright chrome finish. The unhanded design means it can be fitted to either left- or right-hand doors without modification.

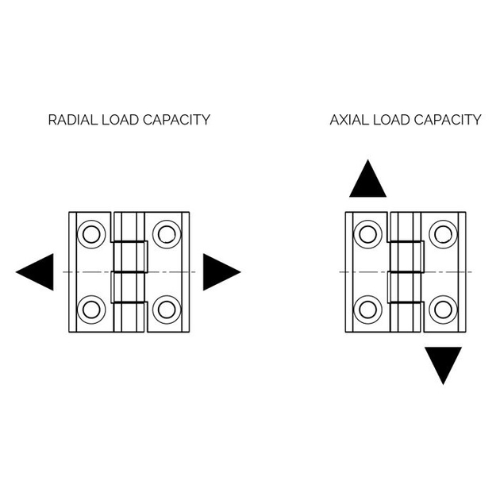

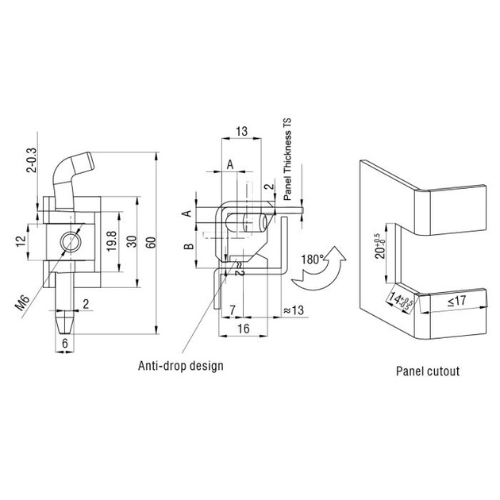

The 2305 carries an axial load capacity of 358 kg per hinge and a radial load capacity of 278 kg per hinge, making it well suited to heavier cabinet and enclosure doors. It is compatible with panels of 1.5 to 2 mm thickness.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Bright Chrome |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Axial Load Capacity | 358 kg per hinge |
| Radial Load Capacity | 278 kg per hinge |
| Panel Thickness | 1.5 mm |
| Model | 2305 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
External Cabinet Hinge with M6 Stud, Bright Chrome Finish, Panel Thickness 1.5mm, Metrol - 2305-15-30
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
External Cabinet Hinge with M6 Stud, Black Powder Coated Finish, Panel Thickness 1.5mm, Metrol - 2305-15-20
£9.70
£9.51
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2305-15-20 | 2305-20-20 | 2404-02-L | 2404-02-R | 2118-200-20 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 1.5mm | 2mm | 3.6mm | 3.6mm | 38x40mm |
| Material | Zinc plated steel | Zinc plated steel | |||
| Finish | Zinc | Zinc | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | |
| Thread | M6 | M6 | |||
A. The 2305 hinge has an axial load capacity of 358 kg per hinge and a radial load capacity of 278 kg per hinge.
A. The 2305 External Cabinet Hinge is designed for panels of 1.5 to 2 mm thickness.
A. The hinge body is die cast zinc alloy with mild steel zinc-plated components and a stainless steel SS316 pin.
A. No. The 2305 is unhanded and can be fitted to either left- or right-hand doors without requiring a separate variant.
A. The 2305-15-30 is supplied with a bright chrome colour and finish.
